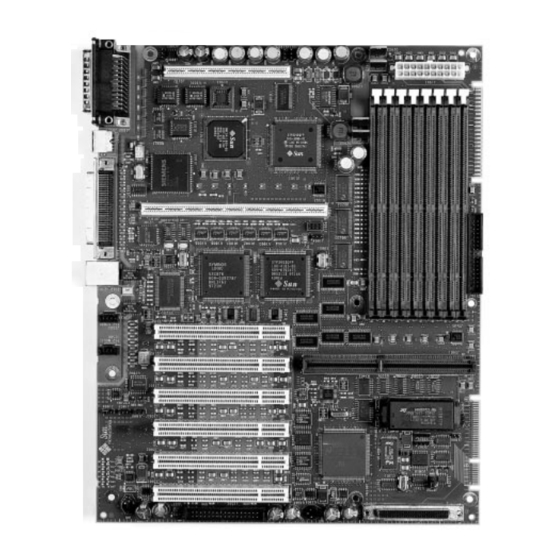

SPARCengine Ultra AXi
READ ME
FIRST!
Ultra AXi
Check the contents of your UltraAX i shipment
Item #
1
Ultra AXi Motherboard Assembly
1.1
Ultra AXi Motherboard
1.2
Ultra AXi Rear I/O Panel
1.3
Ultra AXi CPU Module Hold Down Kit
1.4
PS/2 Keyboard and Mouse Adapter Cable
2
Read Me First Document
3
UltraSPARC-IIi CPU Module (360 MHz) or
UltraSPARC-IIi CPU Module (440 MHz)
4
CPU Upgrade Fan Install Kit
:
Description
Part #
Qty
595-4704-xx
1 ea.
501-4559-xx
1 ea.
340-4919-xx
1 ea.
250-1404-xx
1 ea.
180-1848-xx
1 ea.
850-6617-xx
1 ea.
501-5148-xx
1 ea.
501-5149-xx
1.ea
560-2540-xx
1 ea.
850-6617-02 Rev. 50
p/n
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Sun Microsystems SPARCengine Ultra AXi
Summary of Contents for Sun Microsystems SPARCengine Ultra AXi
- Page 1 SPARCengine Ultra AXi READ ME FIRST! Ultra AXi Check the contents of your UltraAX i shipment Item # Description Part # Ultra AXi Motherboard Assembly 595-4704-xx 1 ea. Ultra AXi Motherboard 501-4559-xx 1 ea. Ultra AXi Rear I/O Panel 340-4919-xx 1 ea.
-
Page 2: Product Notes
Microelectronics sales representative or field application engineer (FAE). The UltraSPARC-II i module is packaged separately. The SPARCengine Ultra AXi OEM Manual contains information that must be used to ensure proper utilization of the Ultra AX i motherboard. A copy may be downloaded from: http://www.sun.com/microelectronics/SPARCengineUltraAXi/... - Page 3 SPARCengine Ultra AXi Fan assembly and bracket Figure 1. SPARCengine Ultra AXi Board with CPU Upgrade Fan CAUTION: The Ultra AX i board with CPU module 501-5148-xx or 501-5149-xx requires a CPU upgrade fan for proper operation! Automatic Power-Up Option AXi boards with P/N 501-4559-08 or later will power up automatically when system power is applied without having to power the board up manually.
-
Page 4: Software Related Information
SPARCengine Ultra AXi Software Related Information This section provides information that may affect software operation. The advanced system monitoring (ASM) driver may not be bundled with your version of the Solaris software. The ASM driver can be downloaded from the Web site at URL: http://www.sun.com/microelectronics/... - Page 5 Table 2). After the patch(es) is successfully installed, bring the system down and install the 440 MHz CPU module. Note – See the AXi CPU Upgrade Fan Install Guide (P/N 806-0941-xx) or the SPARCengine Ultra AXi OEM Technical Reference Manual (805-3158-03 or higher) for installation instructions.
-
Page 6: Technical Support And Warranty
SPARCengine Ultra AXi Technical Support and Warranty If you have any technical questions or issues that are not addressed in the SPARCengine Ultra AXi OEM Manual or on the Web site, contact one of the following: In US or Canada... - Page 7 SPARCengine Ultra AXi How to Identify Date Codes and Serial Numbers on the Motherboard and CPU Module. Ultra AX i Board TOD/NVRAM CPU Module Serial Number Serial Number 5014559000054 BAR CODE BAR CODE Part Number Part Number Date Code Date Code...
-
Page 8: Before Returning The Ultra Axi Motherboard To Sun Enterprise Services
You MUST get Return Material Authorization (RMA) numbers from Sun Enterprise Services for each part you intend to return. Identify each product by the following part numbers: SPARCengine Ultra AXi Motherboard — 501-4559-xx UltraSPARC-IIi 360 MHz Module — 501-5148-xx UltraSPARC-IIi 440 MHz Module — 501-5149-xx... - Page 9 SPARCengine Ultra AXi The TOD/NVRAM module may also hold configuration data specific to your installation. Be sure to keep a copy of this information. 850-6617-02Rev. 50...
