C.2 Connecting Cables
C.2.1 SCSI Cables
C.2.2 Ethernet Cables
C.2.3 Video Cables
34 35

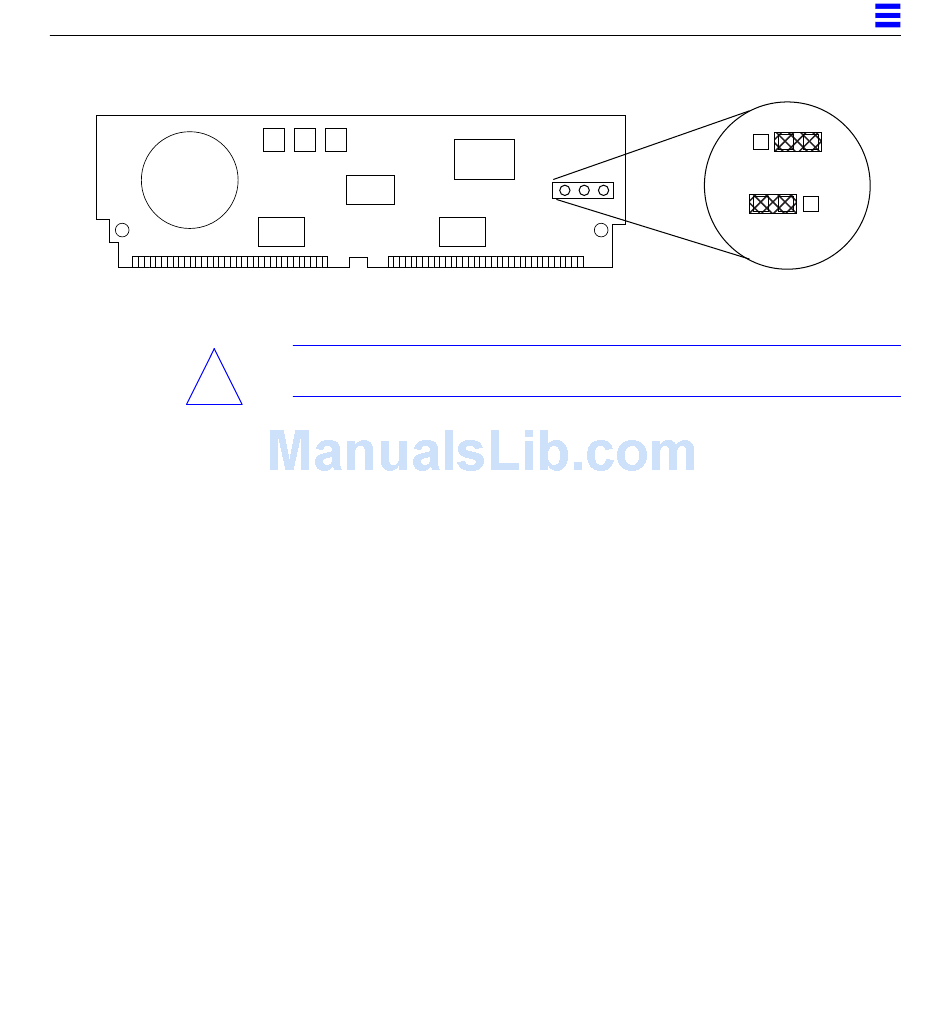

Figure C-5 NVSIMM Jumper Locations
Caution – Once you turn the battery on do not move or remove the jumper.
Any data contained in the NVSIMM will be lost if the jumper is moved.
SCSI cables for internal devices are factory connected. If installing additional
devices, refer to the installation instructions provided with the storage device.
The main network cable must be connected to the on-board Ethernet connector
on system board 0. Refer to instructions provided with your Ethernet
transceivers for additional connection information. The SPARCserver 1000
system supports twisted-pair Ethernet installations.
Only one CGSIX interface is allowed per system. It must be installed in SBus
slot 1 of system board 0. The keyboard must be plugged into the keyboard
connector of system board 0 and the video cable into the GCSIX card. The
diagnostic program requires a monitor or terminal. If the system lacks a
monitor, plug an RS232 TTY terminal into port A of the system board in slot 0.
General Rules for System Configuration
Battery ON
Battery OFF
Jumper
