OpenBoot PROMs

2.8 TOD/NVRAM IC

2.8.1 Removal

2-24

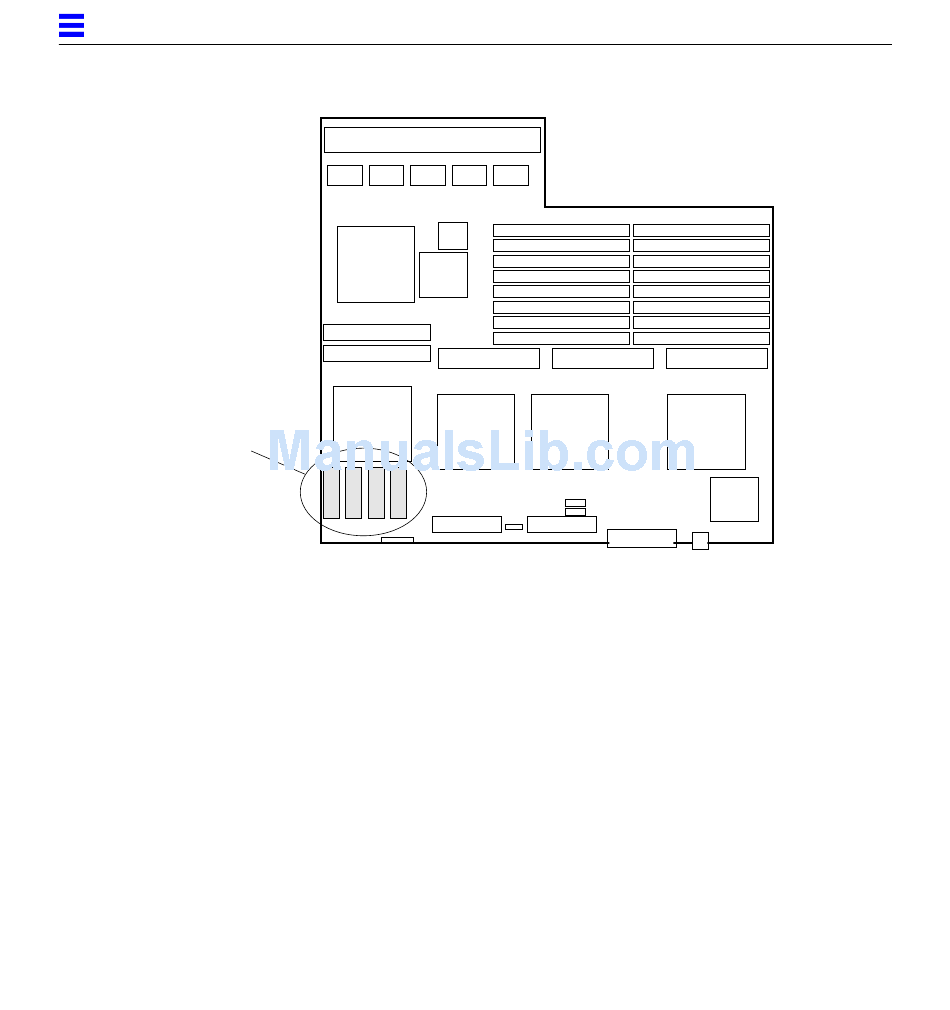

Figure 2-19 OpenBoot PROMs on the System Board

Use this procedure to replace the TOD/NVRAM IC. Refer to Figure 2-20 for
the TOD/NVRAM IC location.
1. To uncover the TOD/NVRAM IC, remove the SuperSPARC module (if
any) in module location B.
2. Use an IC extractor tool to remove the IC.
Refer to Figure 2-20 to locate the TOD/NVRAM IC.
3. Place the IC on antistatic foam plastic in an antistatic package for storage
or possible reuse.
