2.5.2 Installation or Replacement

2-12
4. Lift the SBus card from the socket at an angle while guiding the face plate
out from the back panel opening.
Refer to Figure 2-7.
5. Place the SBus card in an antistatic bag.
6. If the SBus card is not immediately replaced, install a filler panel (part
number 340-2305) on the back panel opening of the system board. To
secure the filler panel, use the screws that were removed in step 1.
Caution – Be sure to install the filler panel right-side up, installing it upside
down creates a gap at the top edge of the SBus slot opening that can impair
system cooling and regulatory compliance.
Back panel screws

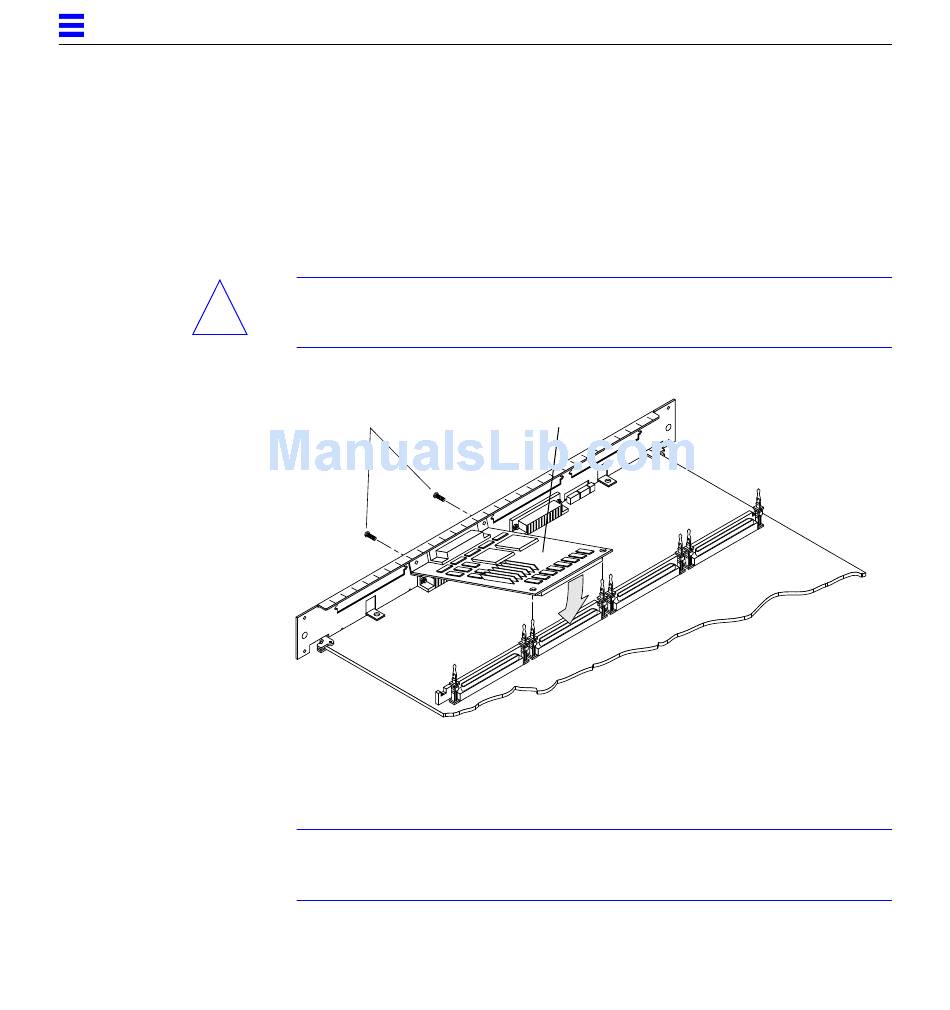

Figure 2-7 Removing or Installing an SBus Card
Note – If the new SBus card has an adapter plate (refer to Figure 2-8), remove
the plate by performing the procedures in Section 2.5.2.1. If the SBus card does
not have an adapter plate, go instead to Section 2.5.2.2.
SPARCserver 1000 System Board Manual—October 1994
SBus card
