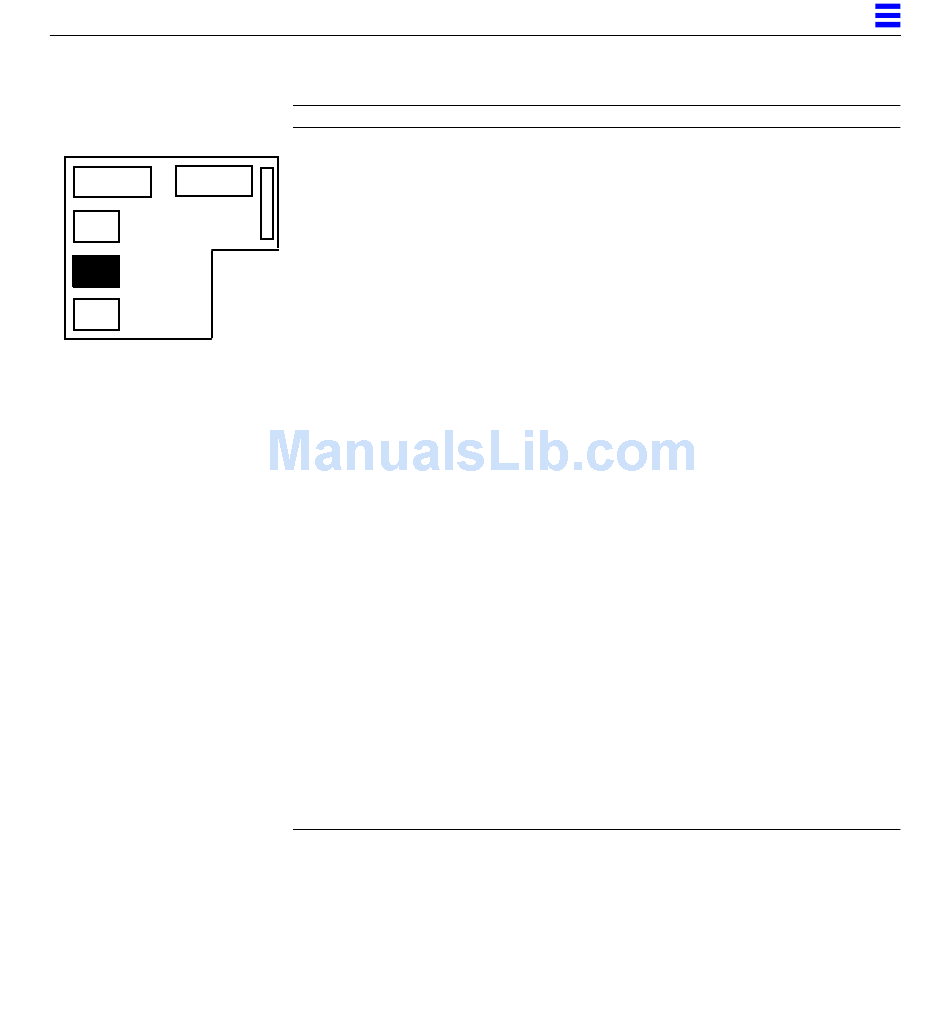

Table B-2 SBus Connector 2 (Connector J4902)
Section 1
1
2
3
4
1
5
6
2
7
8
3
9
10 SB_D<8>
11 SB_D<10>
12 SBIntR_L<9>
13 SB_D<12>
14 SB_D<13>
15 SB_D<16>
16 SBIntR_L<10>
17 SB_D<19>
18 SB_D<21>
19 SB_D<23>
20 SBIntR_L<11>
21 SB_D<25>
22 SB_D<27>
23 SB_D<29>
24 SBIntR_L<12>
25 SB_D<31>
26 SB_Siz<0>
27 SB_Siz<2>
28 SBIntR_L<13>
29 SB_PA<0>
30 SB_PA<2>
31 SB_PA<4>
32 SBLErr_L
Connector Pinouts
Section 2
GND
33 SB_PA<6>
SB_BR_L<1>
34 SB_PA<8>
SB_Sel_L<1>
35 SB_PA<10>
SBIntR_L<7>
36 SB_Ack<0>
SB_D<0>
37 SB_PA<12>
SB_D<2>
38 SB_PA<14>
SB_D<4>
39 SB_PA<16>
SBIntR_L<8>
40 SB_Ack<1>
SB_D<6>
41 SB_PA<18>
42 SB_PA<20>
43 SB_PA<22>
44 SB_Ack<2>
45 SB_PA<24>
46 SB_PA<26>
47 SB_DPar
48 FS_VBB
49 SB_Clk<1>
50 SB_SBG_L<0>
51 SB_A_L
52 GND
53 SB_D<1>
54 SB_D<3>
55 SB_D<5>
56 VCC
57 SB_D<7>
58 SB_D<9>
59 SB_D<11>
60 GND
61 SB_D<13>
62 SB_D<15>
63 SB_D<17>
64 VCC
B
Section 3
65 SB_D<18>
66 SB_D<20>
67 SB_D<22>
68 GND
69 SB_D<24>
70 SB_D<26>
71 SB_D<28>
72 VCC
73 SB_D<30>
74 SB_Siz<1>
75 SB_Rd
76 GND
77 SB_PA<1>
78 SB_PA<3>
79 SB_PA<5>
80 VCC
81 SB_PA<7>
82 SB_PA<9>
83 SB_PA<11>
84 GND
85 SB_PA<13>
86 SB_PA<15>
87 SB_PA<17>
88 VCC
89 SB_PA<19>
90 SB_PA<21>
91 SB_PA<23>
92 GND
93 SB_PA<25>
94 SB_PA<27>
95 SB_Rst_L<1>
96 FS_VDD
B-5
