2.4 SuperSPARC Modules

2-6
Standoff
SBus card or
SuperSPARC module
Locked Unlocked

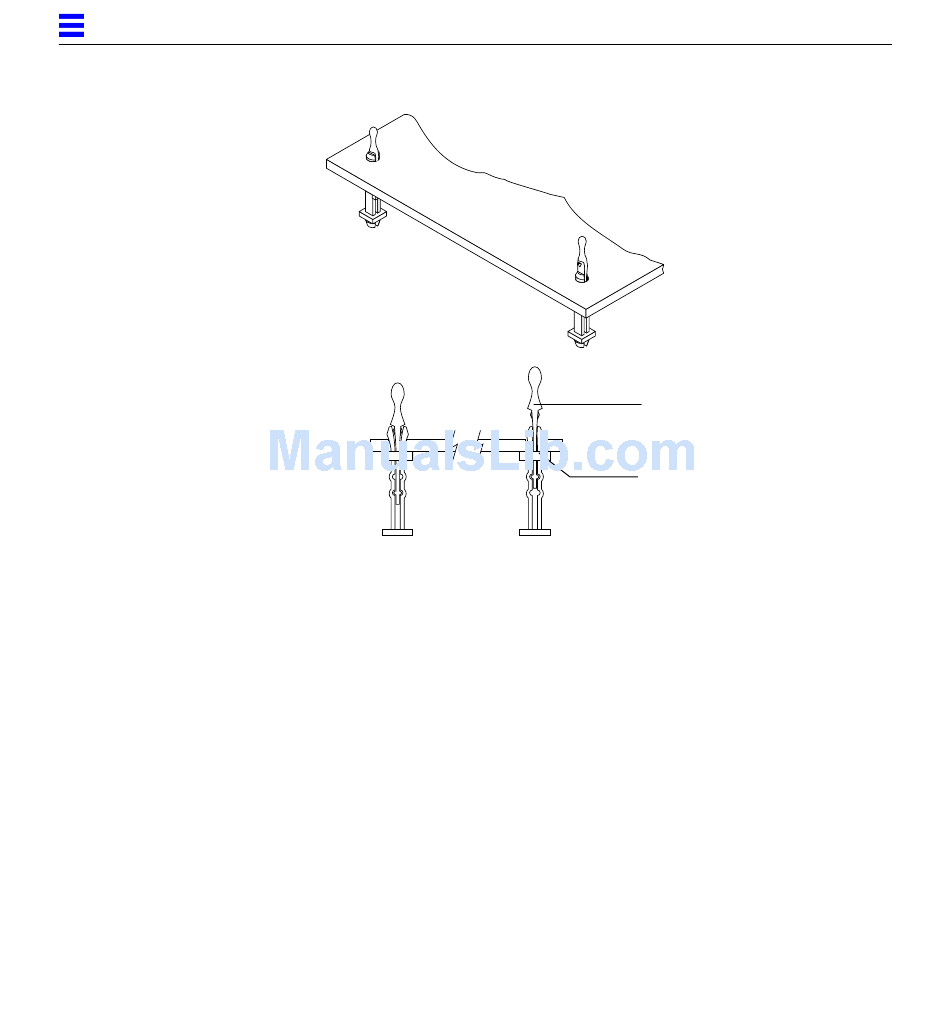

Figure 2-3 Locking and Unlocking Standoffs
Each system board can have two SuperSPARC modules, A and B. Refer to
Figure 2-4. To select the proper location for a SuperSPARC module, refer to
Appendix C, "General Rules for System Configuration."
SPARCserver 1000 System Board Manual—October 1994
Standoff
Tip insert
Flange
