SBus connectors

2.5.1 Removal

!
SBus card 0

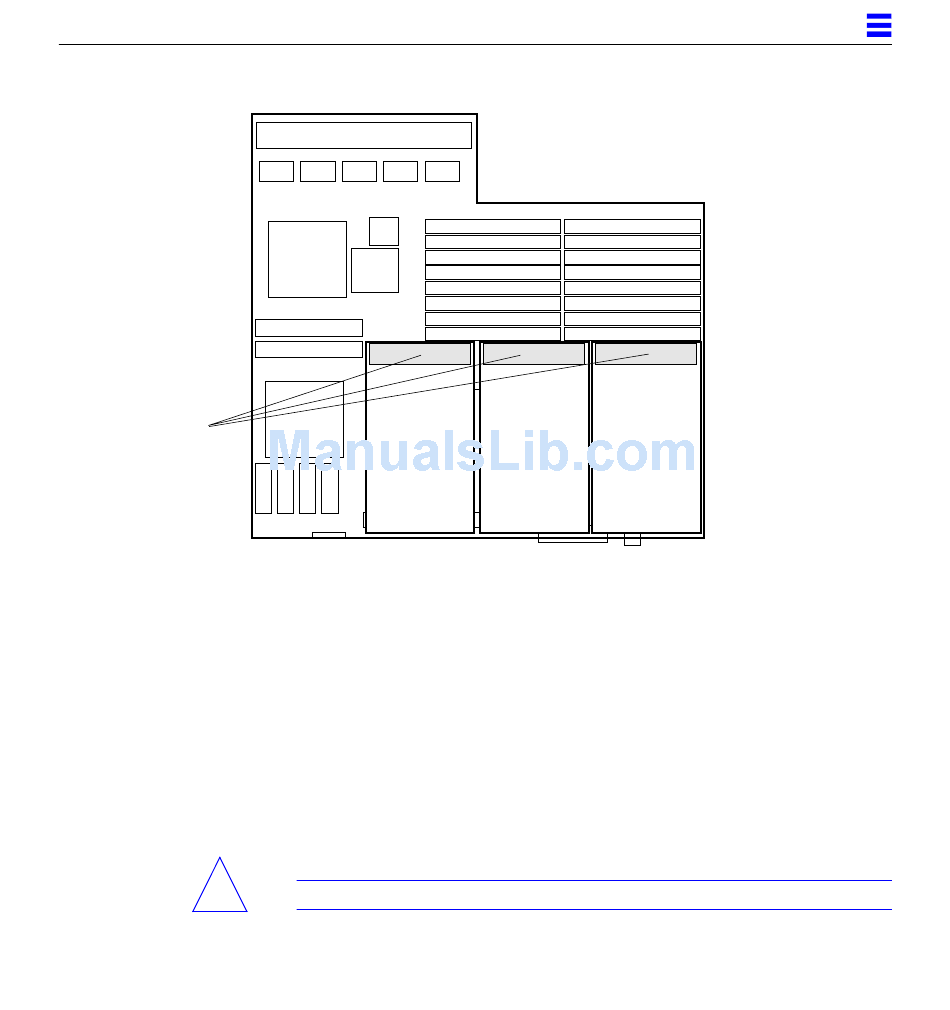

Figure 2-6 SBus Card Locations
1. Remove the two screws that secure the SBus card to the back panel.
Save the screws for installation of a replacement SBus card or a filler panel.
2. Unlock the SBus card by pulling up the tips of the two standoffs.
Pull up the tip insert of a standoff to unlock it. Refer to Figure 2-3.
3. Hold the card by the edges near the connector and gently rock the card
back and forth to loosen it from the socket.
You may have to remove the SBus cards, SIMMs, or SuperSPARC modules
next to your chosen SBus card in order to have enough room to hold onto
the SBus card during removal.
Caution – The connector housing may break if the SBus card is tilted too far.
Removing and Replacing System Boards and Assemblies
SBus card 1 SBus card 2
