2.4.1 Removal
SuperSPARC module A is mounted on four standoffs on the system board.
SuperSPARC module B is mounted like an SBus card, the connector end
mounts on standoffs but the back panel end slides onto the lip of a back panel
filler plate.
Removing and Replacing System Boards and Assemblies

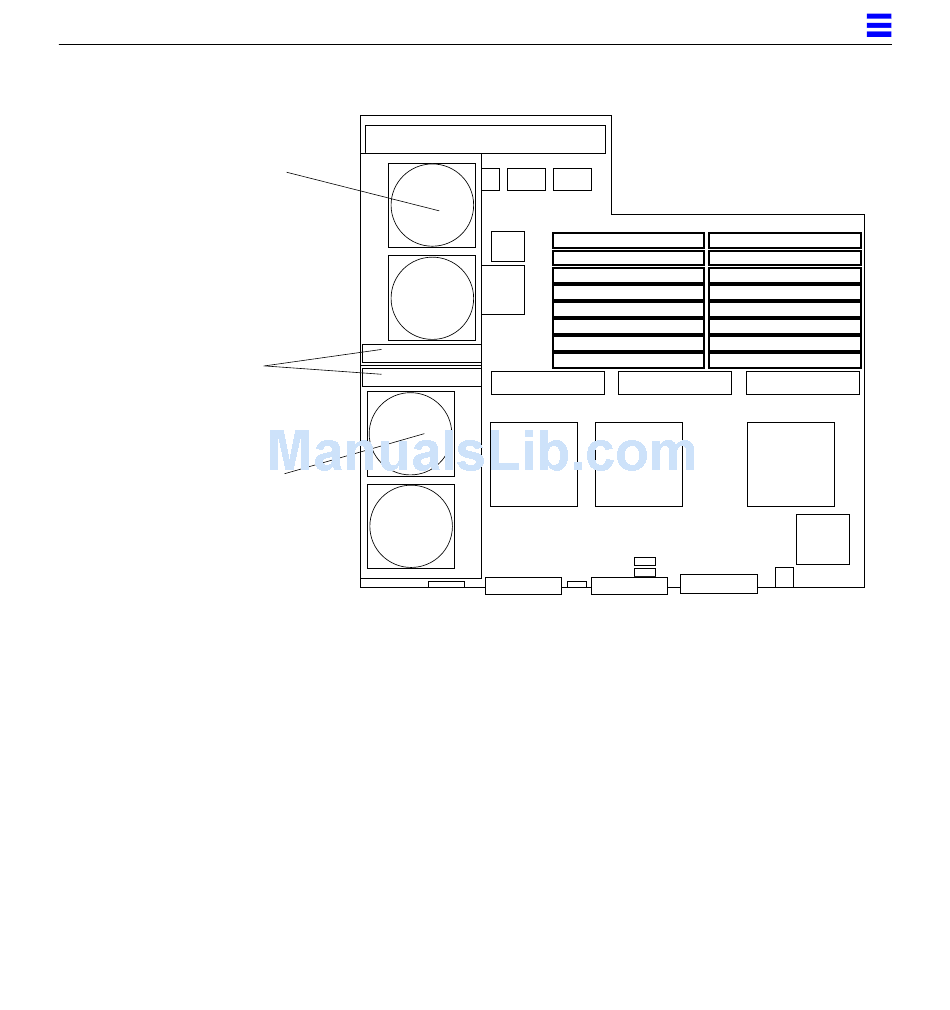

SuperSPARC Modules A and B Installed
