C.1.4.1 NVSIMMs
C-6

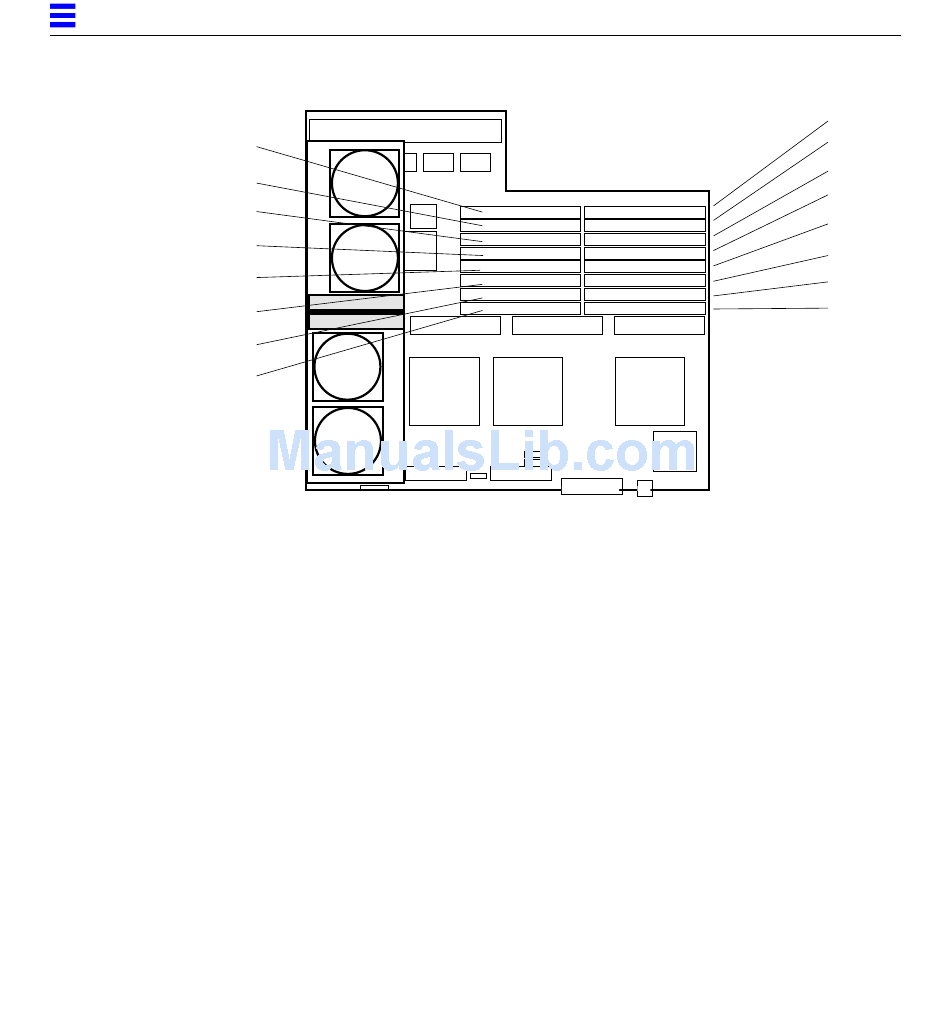

Figure C-4
SIMM Locations on the System Board
Before installing NVSIMMs, first activate the battery to insure data retention.
To activate the battery:
1. Locate the jumper on the right side of the NVSIMM.
Refer to Figure C-5.
2. Move the jumper to the battery on position.
SPARCserver 1000 System Board Manual—October 1994
Group 3
Group 3
2
1
0
Group 3
Group 3
2
1
0
J4300
J3900
J3500
J3100
2
J4200
1
0
J3800
2
J3400
1
0
J3000
