Zaxcom QRX200

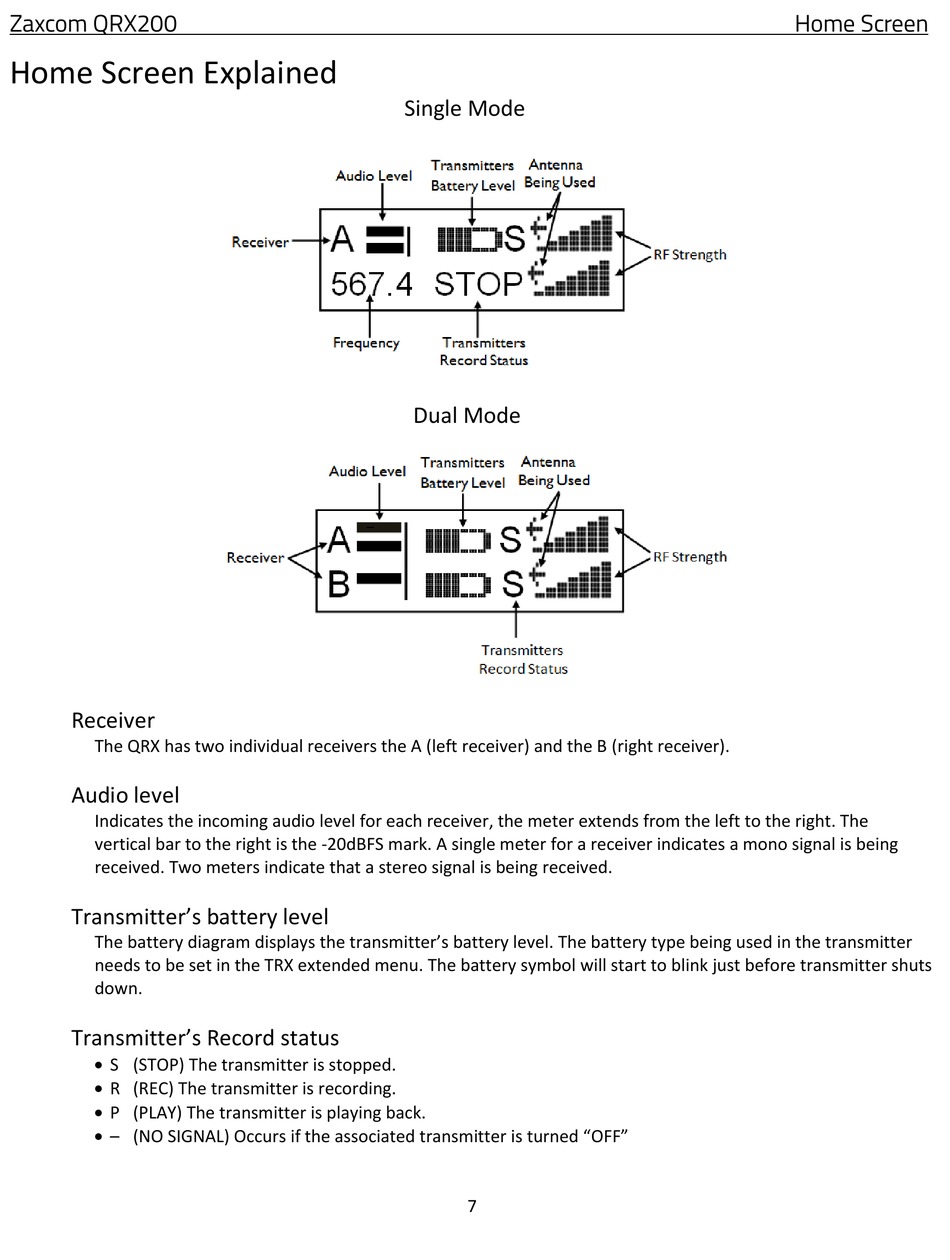

Home Screen Explained

Receiver
The QRX has two individual receivers the A (left receiver) and the B (right receiver).
Audio level
Indicates the incoming audio level for each receiver, the meter extends from the left to the right. The
vertical bar to the right is the -20dBFS mark. A single meter for a receiver indicates a mono signal is being
received. Two meters indicate that a stereo signal is being received.
Transmitter's battery level
The battery diagram displays the transmitter's battery level. The battery type being used in the transmitter
needs to be set in the TRX extended menu. The battery symbol will start to blink just before transmitter shuts
down.
Transmitter's Record status
 S (STOP) The transmitter is stopped.
 R (REC) The transmitter is recording.
 P (PLAY) The transmitter is playing back.
 – (NO SIGNAL) Occurs if the associated transmitter is turned "OFF"
Single Mode
Dual Mode
7
Home Screen
