Chapter 2: Setup and Use

Setting up the Printer

Before setting up the printer consider the following:
1. Make sure there is adequate space around the printer for loading consumables and proper ventilation.
2. Make sure the printer is close to the host so the interface cable is easily accessible at either end.

Main Parts and Structures

1. MENU Button
2. CANCEL Button
3. FEED Button
4. PAUSE Button
Note: The structure of TX3 and TX6 (see figure 3-b) is not exactly same with TX2 (see figure 3-a), the main
differences are in the media compartment, the improved media supporting module in TX3 and TX6 reduces the
minimum allowed label height to only 4mm.
9
8
7
6
5
4
3
2
1
5. Media Calibration
6. READY Indicator
7. MEDIA Indicator
8. RIBBON Indicator

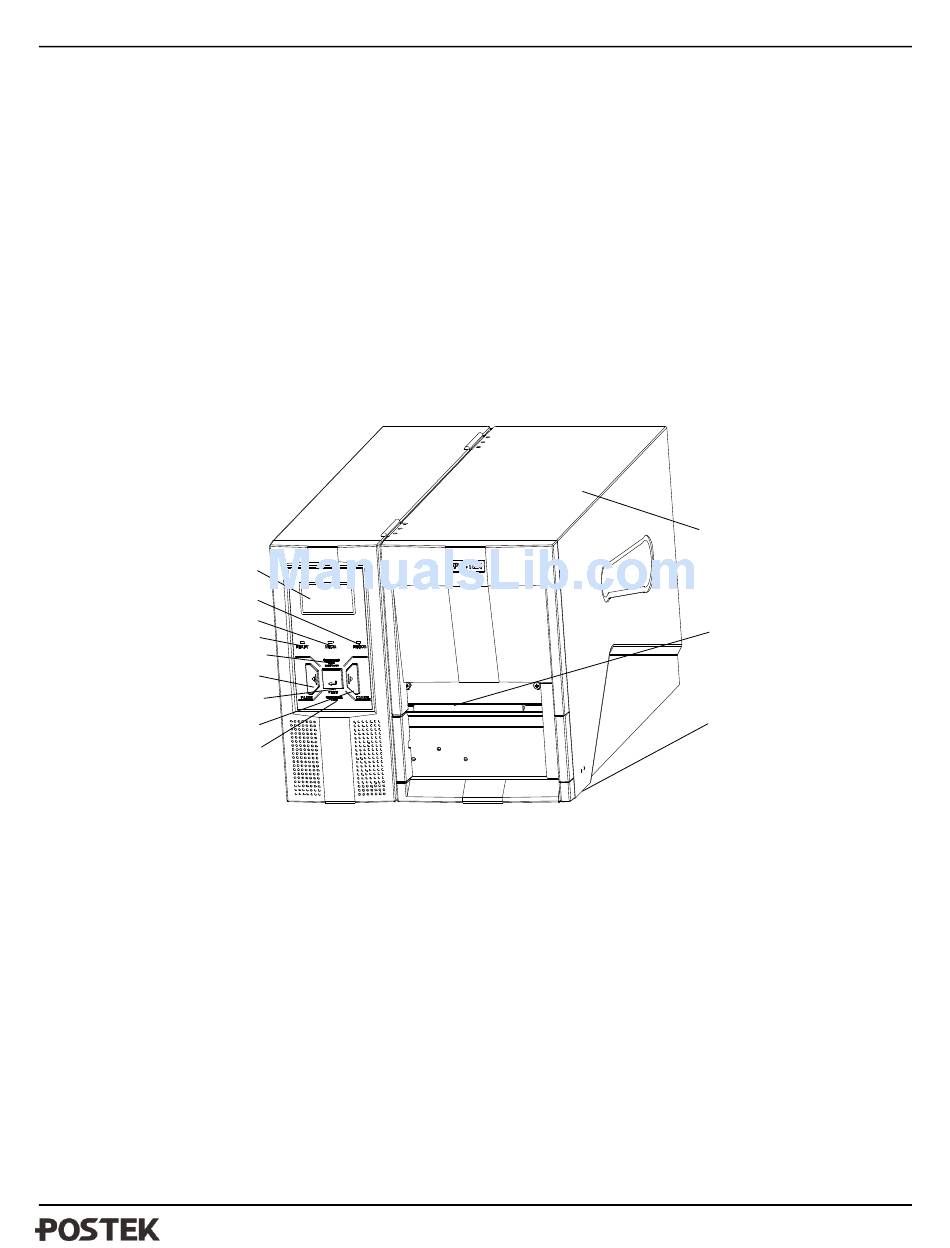

Figure 2-1
Chapter 2: Setup and Use
10
11
12
9. LCD
10. READY Indicator
11. Media Outlet
12. Cover Handle
