TX Series User's Manual
Note: (1) The TX Series printer has three types of media sensors: the up/down reflective media sensor and the
transmissive media sensor. Please see the "LCD Panel Operation" guide to select the sensor's type.

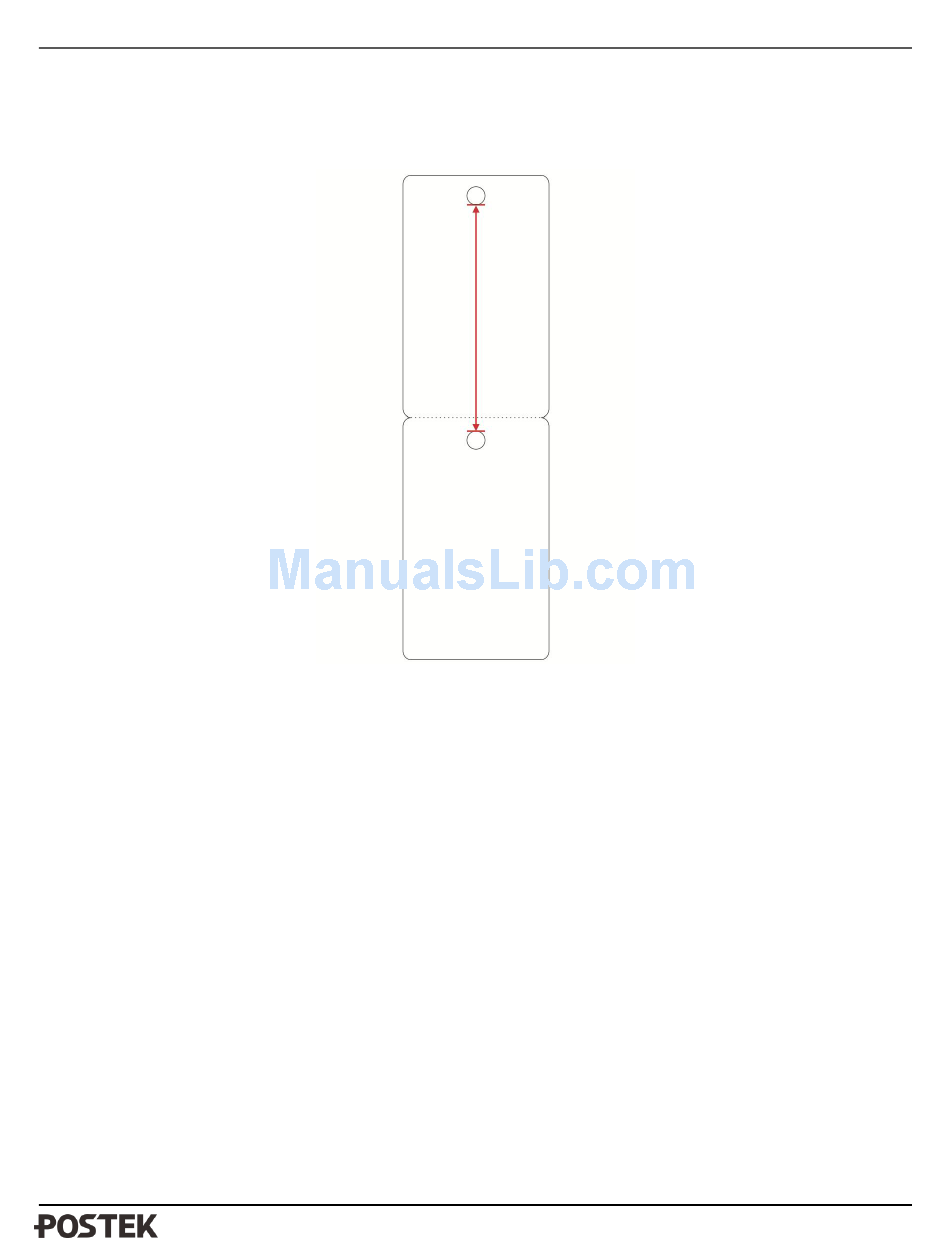

(2) When using the transmissive media sensor to detect the tag with hole (see figure 2-15), the tag height
should be set as the distance between the bottom of a hole and the top of the next one.
8. Turn the lever clockwise to close the Printhead Module;
9. Close the cover and turn on the printer, or press the "FEED" button if the printer is already on.

Peel-off and Tear-off Mode:

To load media into the TX while using Peel-off and Tear-off Mode, use the Standard Mode procedures.

Cutting Mode:

Using the TX in Cutting Mode requires an optional rotary cutter. See an authorized Postek Reseller for additional
information. With the optional rotary cutter, the media loading instructions are provided.
Figure 2-15
Chapter 2: Setup and Use
