LANCOM 1722 VoIP – LANCOM 1723 VoIP – LANCOM 1724 VoIP – LANCOM 1823 VoIP
Chapter 10: Options and accessories
To install an optional AirLancer antenna, switch the device off by unplugging
the power cable. Now carefully unplug the two diversity antennas from the
back by unscrewing them. Connect the AirLancer antenna to the connector
marked 'Antenna Main'.
10.2

LANCOM Public Spot Option

Wireless Public Spots are publicly accessible areas where users can use their
own mobile computers to access a wireless network (such as a company net-
work or the Internet).

Wireless LAN technology is ideal for offering wireless Internet services to the
public in locations such as airports, railway stations, restaurants or cafes via
so-called HotSpots. The LANCOM Public Spot Option is intended for operators
of public wireless networks. It enables the easy installation and maintenance
of public HotSpots by providing LANCOM Access Points and LANCOM Routers
with additional functions for authentication and billing for public Internet
services.
Authentication and billing for individual users is implemented with user-
friendly Web pages, enabling client PCs with a WiFi-certified wireless card
(el.g. AirLancer) and standard Internet browser to go directly online.
The LANCOM Public Spot Option is the ideal solution for public wireless LAN.
Wireless LAN are very well suited for company networks and for wireless net-
108
damage to the access point and the network infrastructure connected
to it.
Aux
DC12V ETH2 ETH1
Please note that operating a LANCOM VoIP Router with the
LANCOM Public Spot Option (also referred to as a HotSpot) can be
subject to legal regulation in your country. Before installing a
LANCOM VoIP Router, please inform yourself about any applicable
regulations.

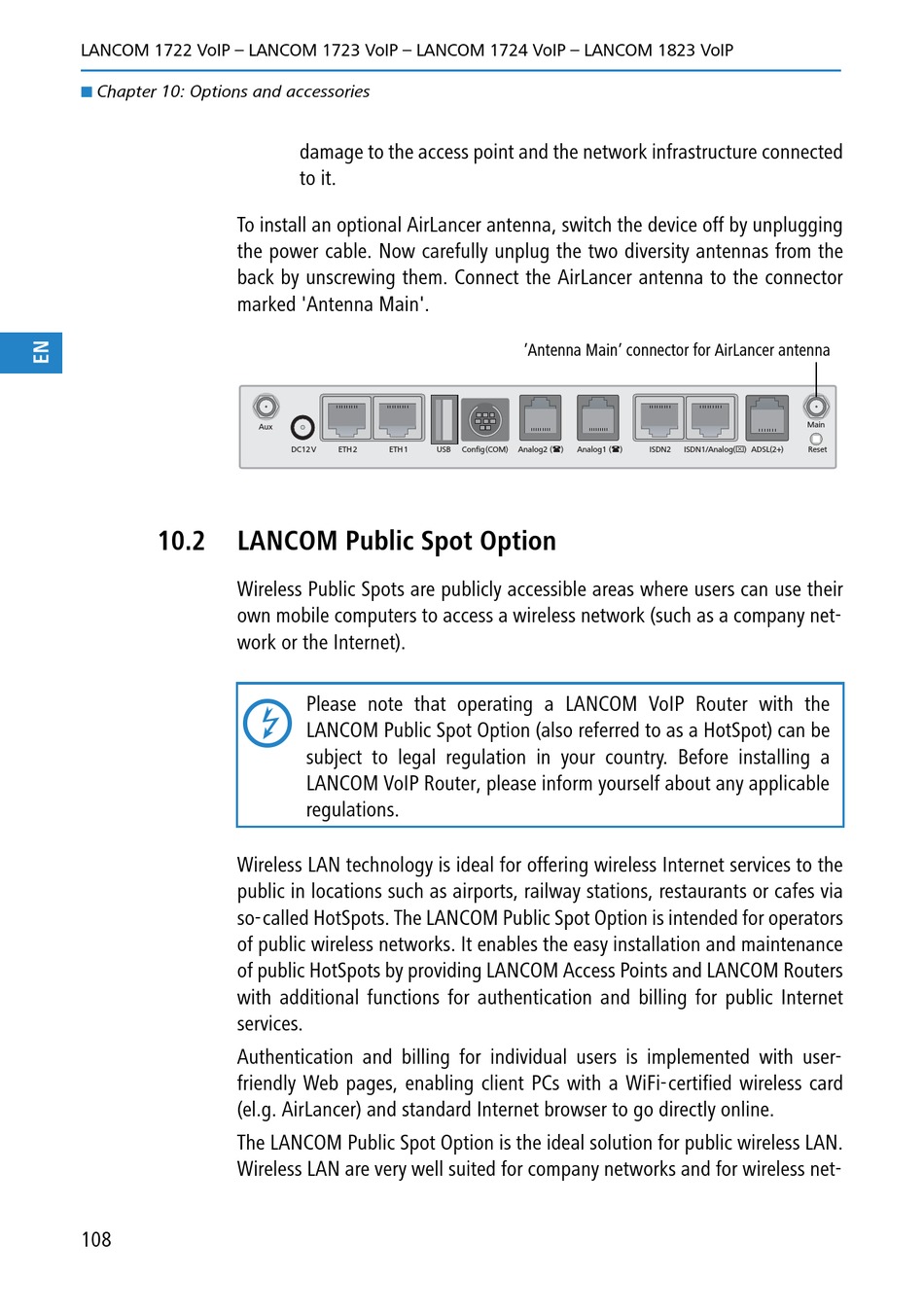

'Antenna Main' connector for AirLancer antenna
USB Config (COM) Analog2 ( ) Analog1 ( ) ISDN2 ISDN1/Analog(⌧) ADSL(2+)
Main
Reset
