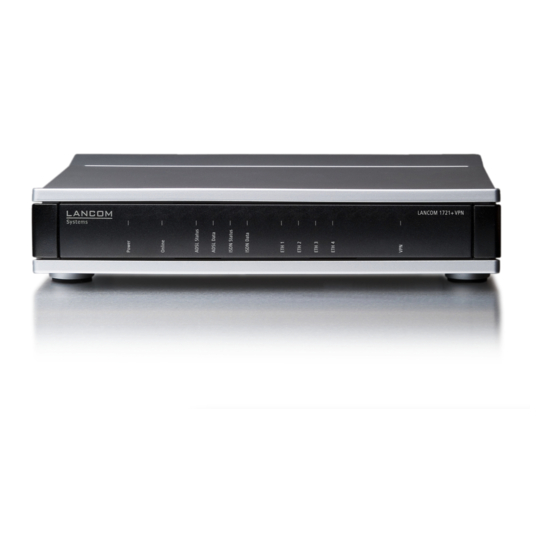

LANCOM 1721+ VPN
Compact VPN router with ADSL2+ modem for professional site connectivity
Integrated ADSL2+ modem
5 integrated IPsec VPN channels, upgradeable to 25, integrated hardware acceleration
Supports VLANs and LANCOM Advanced Routing und Forwarding (ARF)
Stateful- inspection firewall with intrusion detection/denial- of- service protection
Multiple interfaces: ISDN, USB- 2.0 port, Ethernet, and serial port
Free management tools
Useful installation wizards such as 1- Click-VPN
y o u r
b u s i n e s s
Advertisement
Related Manuals for Lancom 1721+ VPN
Summary of Contents for Lancom 1721+ VPN
- Page 1 LANCOM 1721+ VPN Compact VPN router with ADSL2+ modem for professional site connectivity Integrated ADSL2+ modem 5 integrated IPsec VPN channels, upgradeable to 25, integrated hardware acceleration...
- Page 2 The LANCOM 1721+ VPN is a top model in the LANCOM line of highly integrated VPN networking components designed for secure site connectivity. The LANCOM 1721+VPN already has an ADSL2+ modem on board, so it can be connected directly to the Internet. Five IPsec VPN channels are featured as standard, which can be upgraded to 25 with the VPN Option.
- Page 3 LANCOM 1721+ Scope of features: as of LCOS version 7.8x Firewall Stateful inspection firewall Incoming/Outgoing Traffic inspection based on connection information. Trigger for firewall rules depending on backup status, e.g. simplified rule sets for low- bandwidth backup lines. Limitation of the number of sessions per remote site (ID) Packet filter Check based on the header information of an IP packet (IP or MAC source/destination addresses;...
- Page 4 LANCOM 1721+ Scope of features: as of LCOS version 7.8x Certificates X.509 digital multi- level certificate support, compatible with Microsoft Server / Enterprise Server and OpenSSL, upload of PKCS#12 files via HTTPS interface and LANconfig. Simultaneous support of multiple certification authorities with the management of up to nine parallel certificate hierarchies as containers (VPN- 1 to VPN- 9).
- Page 5 LANCOM 1721+ Scope of features: as of LCOS version 7.8x USB print server Print server (USB 2.0) Host port for connecting USB printers via RAW- IP and LPD; bi- directional data exchange is possible LAN protocols ARP, proxy ARP, BOOTP, LANCAPI, DHCP, DNS, HTTP, HTTPS, IP, ICMP, NTP/SNTP, NetBIOS, PPPoE (server), RADIUS, RIP- 1, RIP- 2, RTP, SIP, SNMP, TCP, TFTP, UDP, VRRP WAN protocols ADSL, Ethernet...
- Page 6 LANCOM 1721+ Scope of features: as of LCOS version 7.8x Management Security Access rights (read/write) over WAN or LAN can be set up separately (Telnet/SSL, SSH, SNMP, HTTPS/HTTP), access control list Scripting Scripting function for batch- programming of all command- line parameters and for transferring (partial) configurations, irrespective of software versions and device types, incl.
- Page 7 LANCOM Advanced VPN Client for Windows XP, Windows Vista, Windows 7, 25 licenses, item no. 61602 Item numbers LANCOM 1721+ VPN (EU) 61353 LANCOM 1721+ VPN (UK) 61355 www.lancom.eu LANCOM Systems GmbH I Adenauerstr. 20/B2 I 52146 Wuerselen I Deutschland I E-Mail info@lancom.eu I Internet www.lancom.eu...
