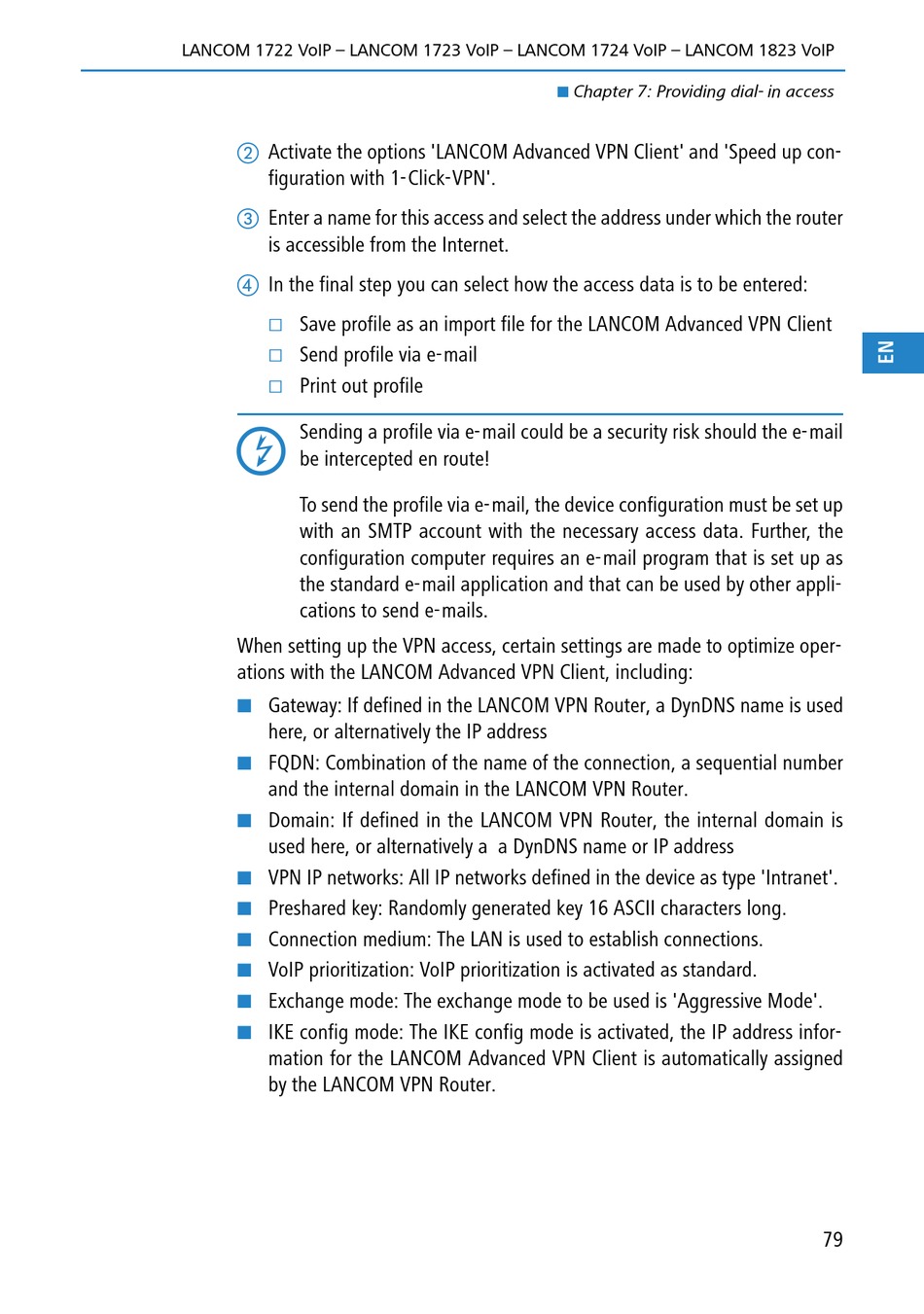

LANCOM 1722 VoIP – LANCOM 1723 VoIP – LANCOM 1724 VoIP – LANCOM 1823 VoIP
Activate the options 'LANCOM Advanced VPN Client' and 'Speed up con-
figuration with 1-Click-VPN'.
Enter a name for this access and select the address under which the router
is accessible from the Internet.
In the final step you can select how the access data is to be entered:
Save profile as an import file for the LANCOM Advanced VPN Client
Send profile via e-mail
Print out profile
Sending a profile via e-mail could be a security risk should the e-mail

be intercepted en route!
To send the profile via e-mail, the device configuration must be set up
with an SMTP account with the necessary access data. Further, the
configuration computer requires an e-mail program that is set up as
the standard e-mail application and that can be used by other appli-
cations to send e-mails.
When setting up the VPN access, certain settings are made to optimize oper-
ations with the LANCOM Advanced VPN Client, including:
Gateway: If defined in the LANCOM VPN Router, a DynDNS name is used
here, or alternatively the IP address
FQDN: Combination of the name of the connection, a sequential number
and the internal domain in the LANCOM VPN Router.
Domain: If defined in the LANCOM VPN Router, the internal domain is
used here, or alternatively a a DynDNS name or IP address
VPN IP networks: All IP networks defined in the device as type 'Intranet'.
Preshared key: Randomly generated key 16 ASCII characters long.
Connection medium: The LAN is used to establish connections.
VoIP prioritization: VoIP prioritization is activated as standard.
Exchange mode: The exchange mode to be used is 'Aggressive Mode'.
IKE config mode: The IKE config mode is activated, the IP address infor-
mation for the LANCOM Advanced VPN Client is automatically assigned
by the LANCOM VPN Router.
Chapter 7: Providing dial- in access
79
