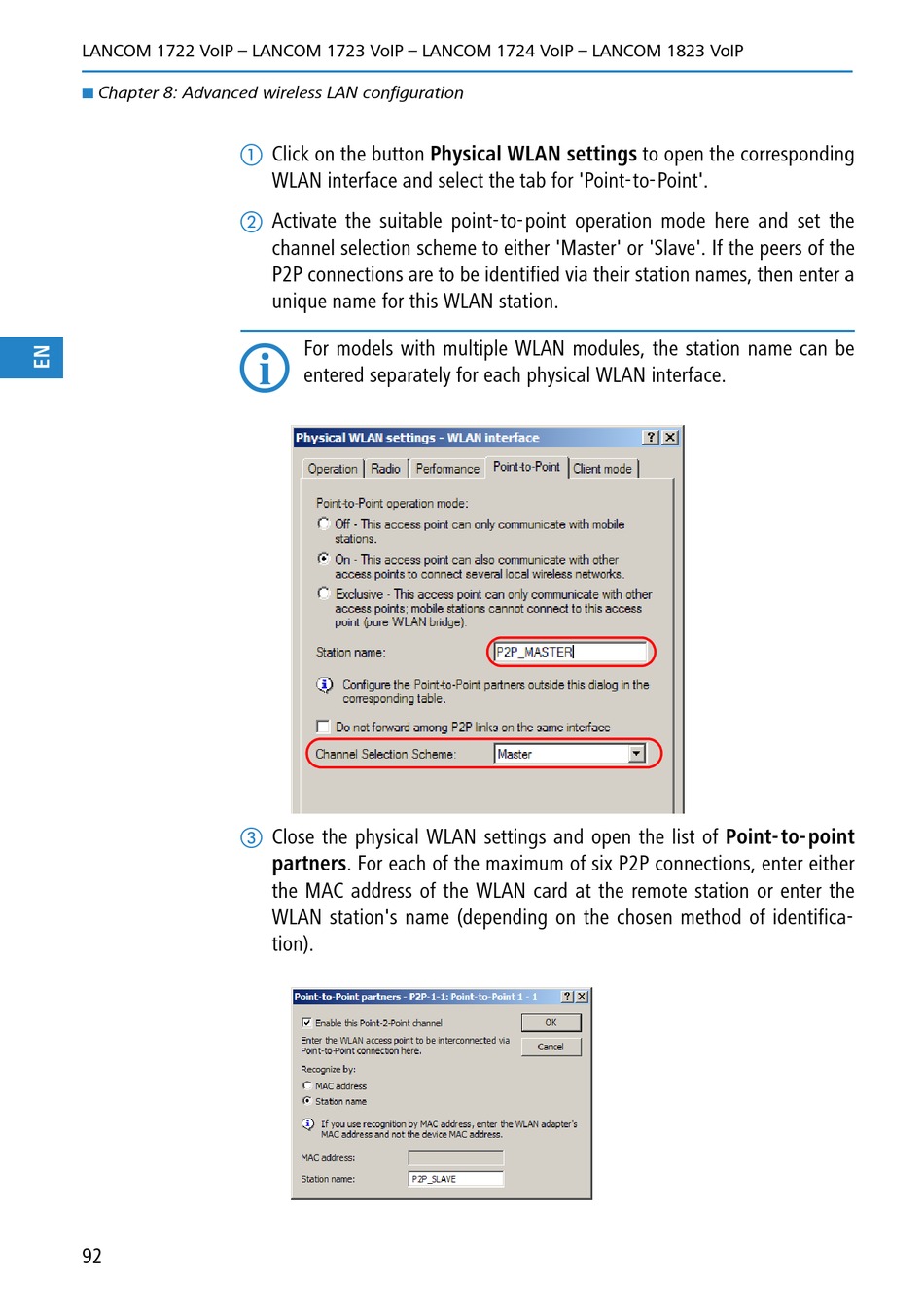

Lancom 1723 VOIP User Manual page 93

LANCOM 1722 VoIP – LANCOM 1723 VoIP – LANCOM 1724 VoIP – LANCOM 1823 VoIP
Chapter 8: Advanced wireless LAN configuration

92
Click on the button Physical WLAN settings to open the corresponding
WLAN interface and select the tab for 'Point-to-Point'.
Activate the suitable point-to-point operation mode here and set the
channel selection scheme to either 'Master' or 'Slave'. If the peers of the
P2P connections are to be identified via their station names, then enter a
unique name for this WLAN station.
For models with multiple WLAN modules, the station name can be
entered separately for each physical WLAN interface.
Close the physical WLAN settings and open the list of Point- to-point
partners. For each of the maximum of six P2P connections, enter either
the MAC address of the WLAN card at the remote station or enter the
WLAN station's name (depending on the chosen method of identifica-
tion).
