1.3 Getting to know S7000

1.3.1 Front Panel

4
1
2
3
5
10
TFT LCD: 7", Resolution: 800×480.
1.3.1.1 Indicator
1) External DC charger operation indicator.
2) Power ON/OFF indicator.
3) External instruments power supply indicator.
2. Keyboard
Power ON/OFF key, press this key and hold to turn the device on and off.
4)
TV key, this key is used to enter into TS Monitor & Analysis function.
5)
AUTO ID/EXPLORER key, this key is used to channel parameter automatic setup.
6)
CH INFO key, this key is used to enter into current channel information edit menu.
7)
S7000 Series TV Analyzer
7 8 9 6 15 13 12

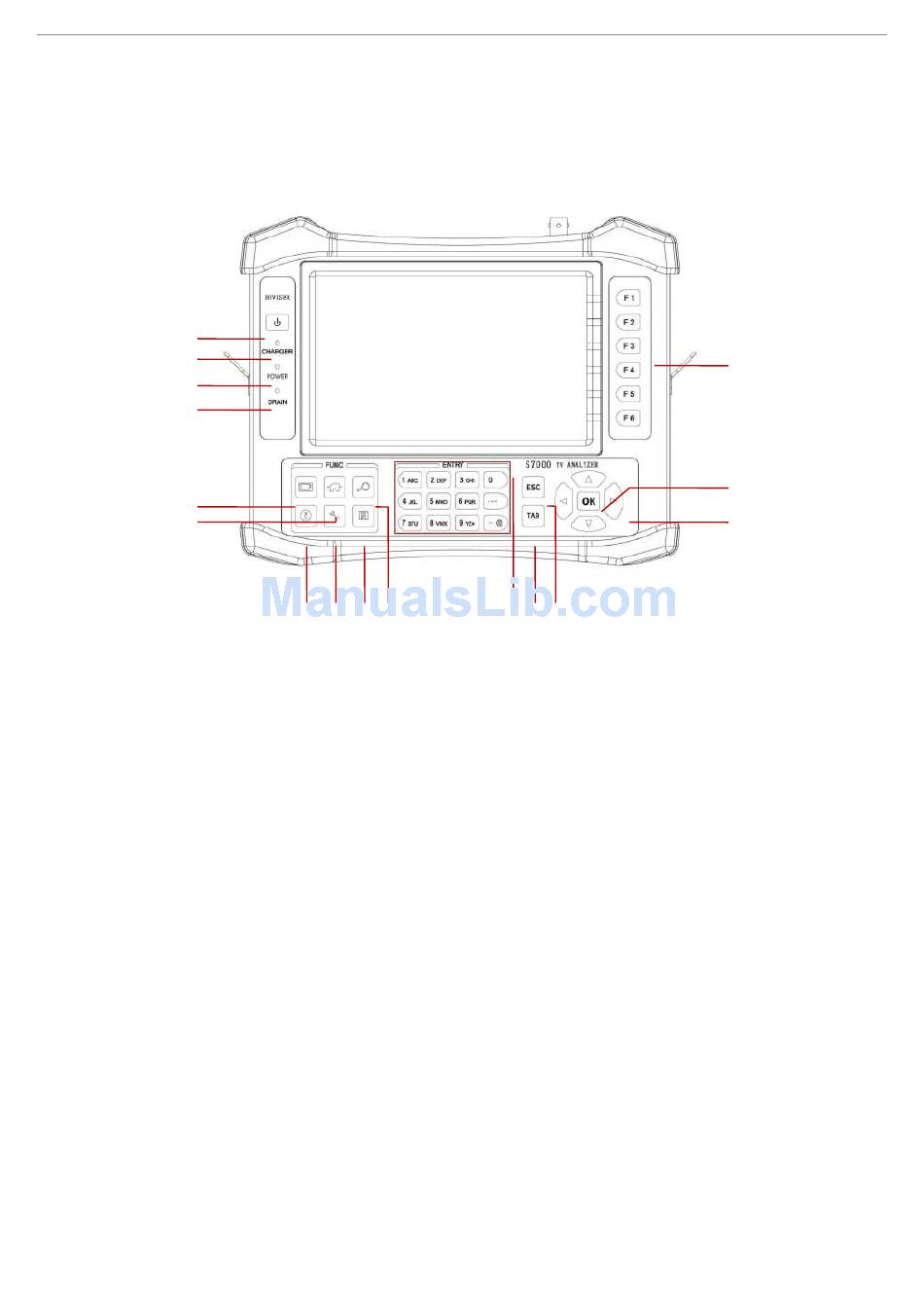

Figure 1-1
Operation Manual
16
11
14
5
