63.6 CNR

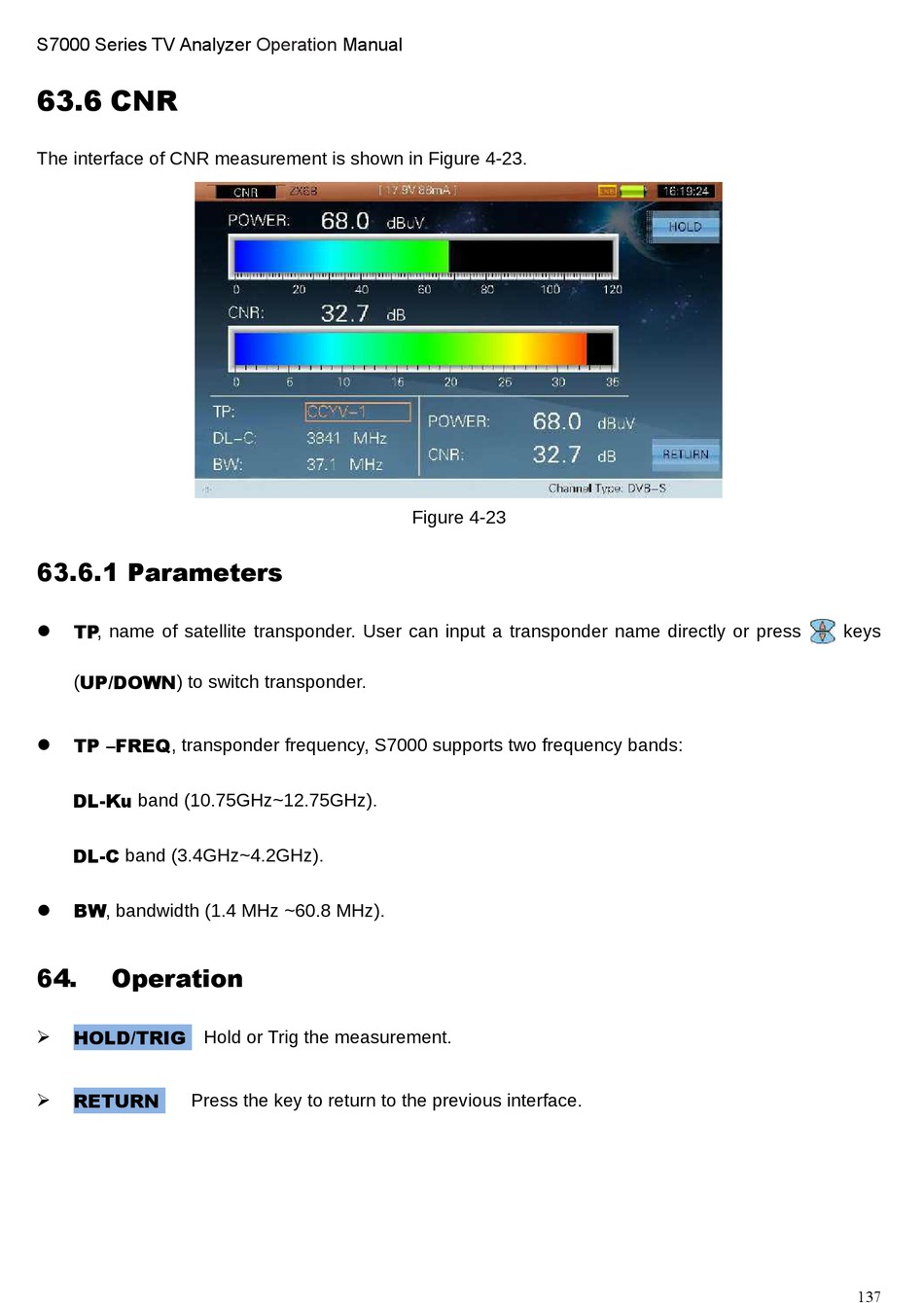

The interface of CNR measurement is shown in Figure 4-23.

63.6.1 Parameters

TP , name of satellite transponder. User can input a transponder name directly or press

( UP/DOWN ) to switch transponder.
TP –FREQ , transponder frequency, S7000 supports two frequency bands:

DL-Ku band (10.75GHz~12.75GHz).
DL-C band (3.4GHz~4.2GHz).
BW , bandwidth (1.4 MHz ~60.8 MHz).

64.

Operation

HOLD/TRIG Hold or Trig the measurement.

RETURN
 Press the key to return to the previous interface.
Operation Manual
Figure 4-23
