Deviser S7000 Series Operation Manual page 12

SETUP key, this key is used to enter into system setup from home menu and related setup menu
8)
in different function display.
SAVE key, this key is used to save picture and data file.
9)
10) HOME key, this key is used to return to the main menu.
11) ENTER key, this key is used to accept changes and confirm numerical value entries.
12) ESC key, this key is used to escape from the current function/view or return to function/view.
13) TAB key, this key is used to switch marker.
14) UP key, DOWN key, LEFT key, RIGHT key, the keys are used to move cursors and change the
value within a function display.
15) Keypad , these keys are used to enter alphanumeric characters.
16) Function soft keys , these keys are used to access various functions within the display.

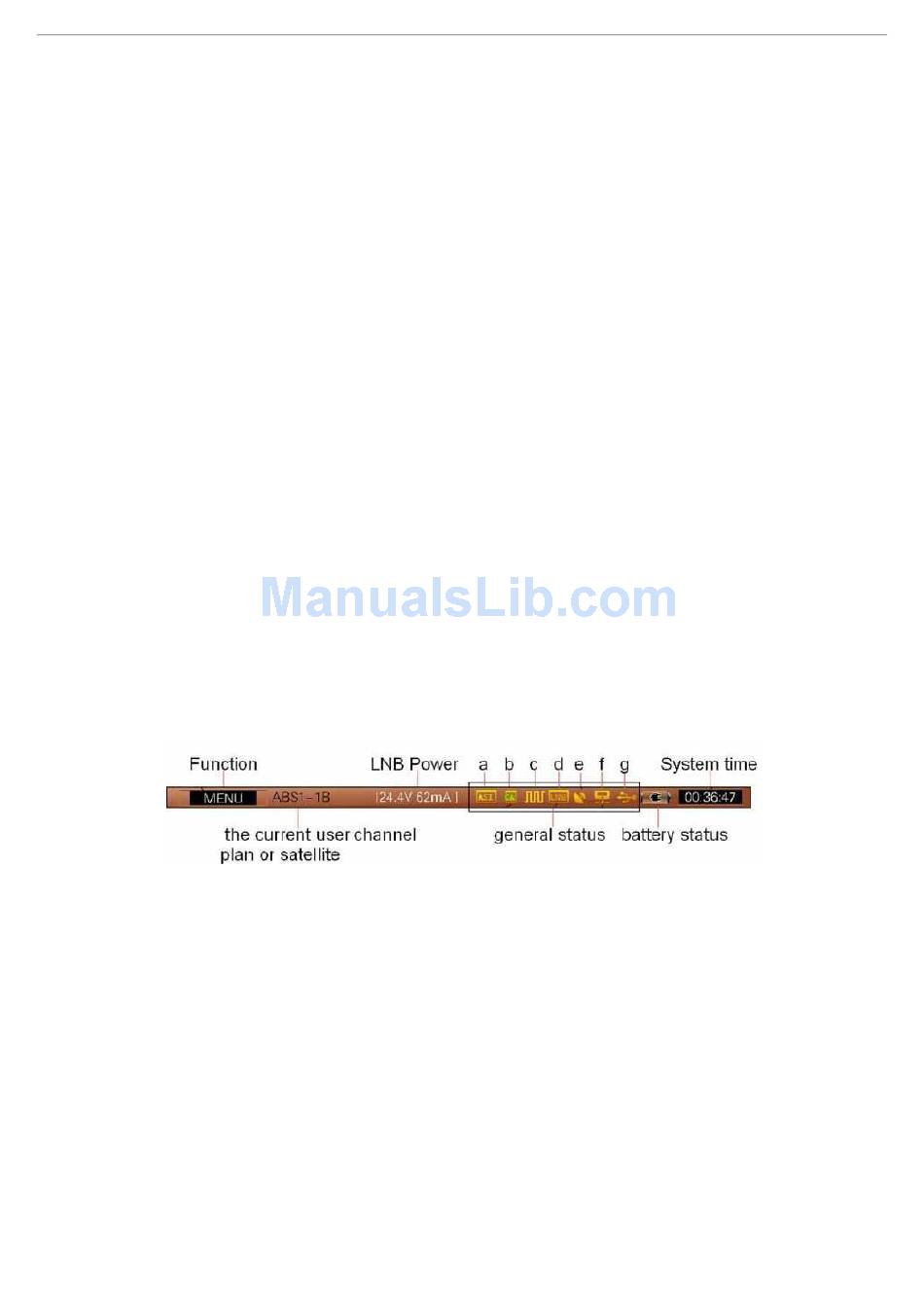

3. Title Bar
a. TS-ASI indicator. It indicates that ASI function works when this icon appears on the title bar. Please
see Section 2: SETUP->INTF.->TS INTERFACE to get the operation,
b. CA indicator. It indicates that the instrument recognizes CA card successfully when this icon
appears on the title bar. And then users can run the TS Monitor & Analysis function. Please
see Section 5: TS Monitor & Analysis to get the operation.
c. 22KHz signal indicator. Users must run this signal when using DiSEqC. It indicates that the running
is successful when this icon appears on the title bar. Please see Section 2: SETUP->INTF.-
>LNB POWER to get the operation.
6
S7000 Series TV Analyzer
Figure 1-2
Operation Manual
