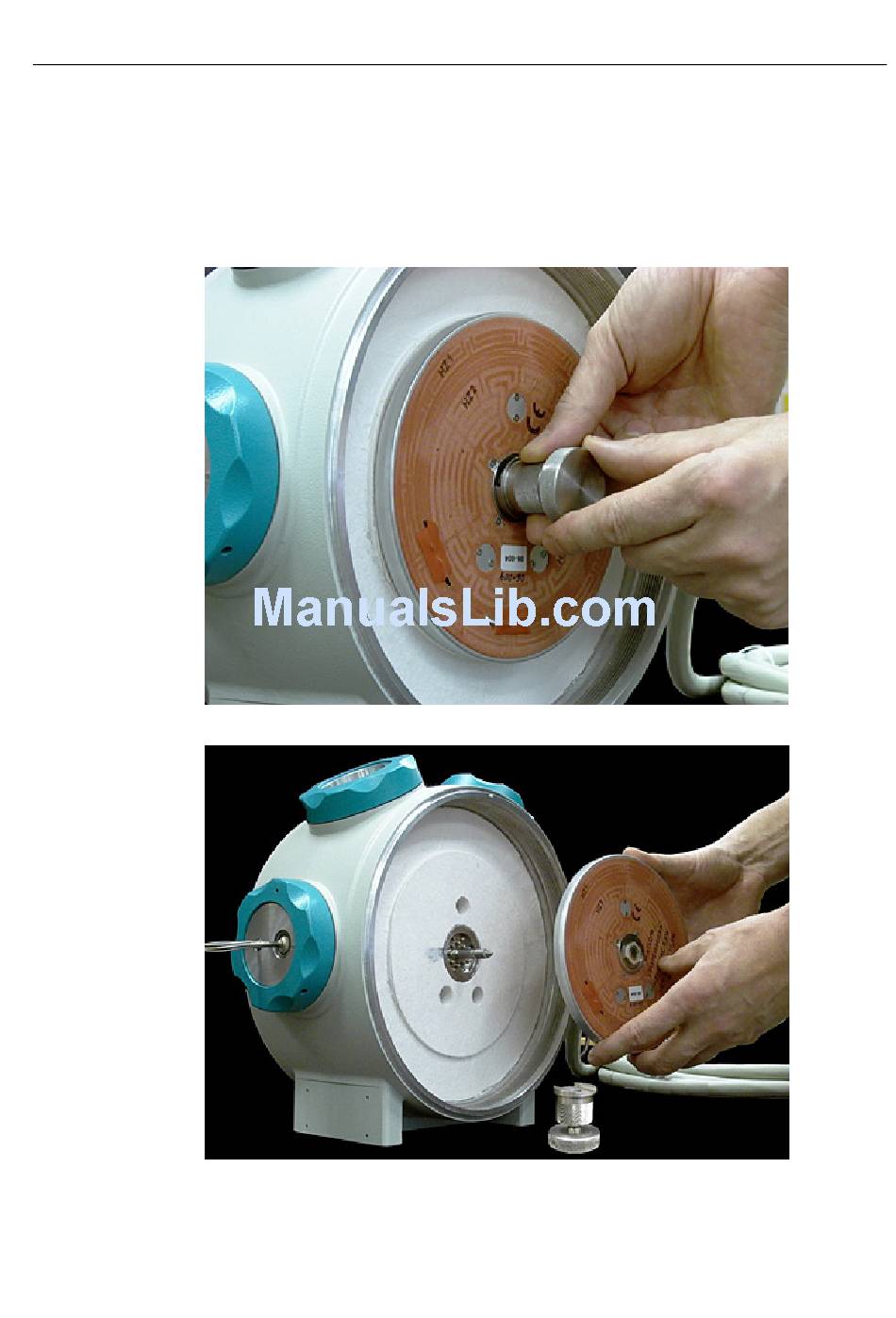

9. Insert the dovetail of the pulling tool behind the hexagon screw head on the analysis
10. Lock the pulling tool by rotating clockwise.
11. Hold the bottom part of the pulling tool tight, and rotate the screw clockwise until the
12. Remove the analysis module from the guide pin.
MicroSAM
Operating Instructions, 06/2012, C79000-G5376-C560-07
module.
analysis module is released.
Service and maintenance
6.1 Maintenance of analysis module
83
