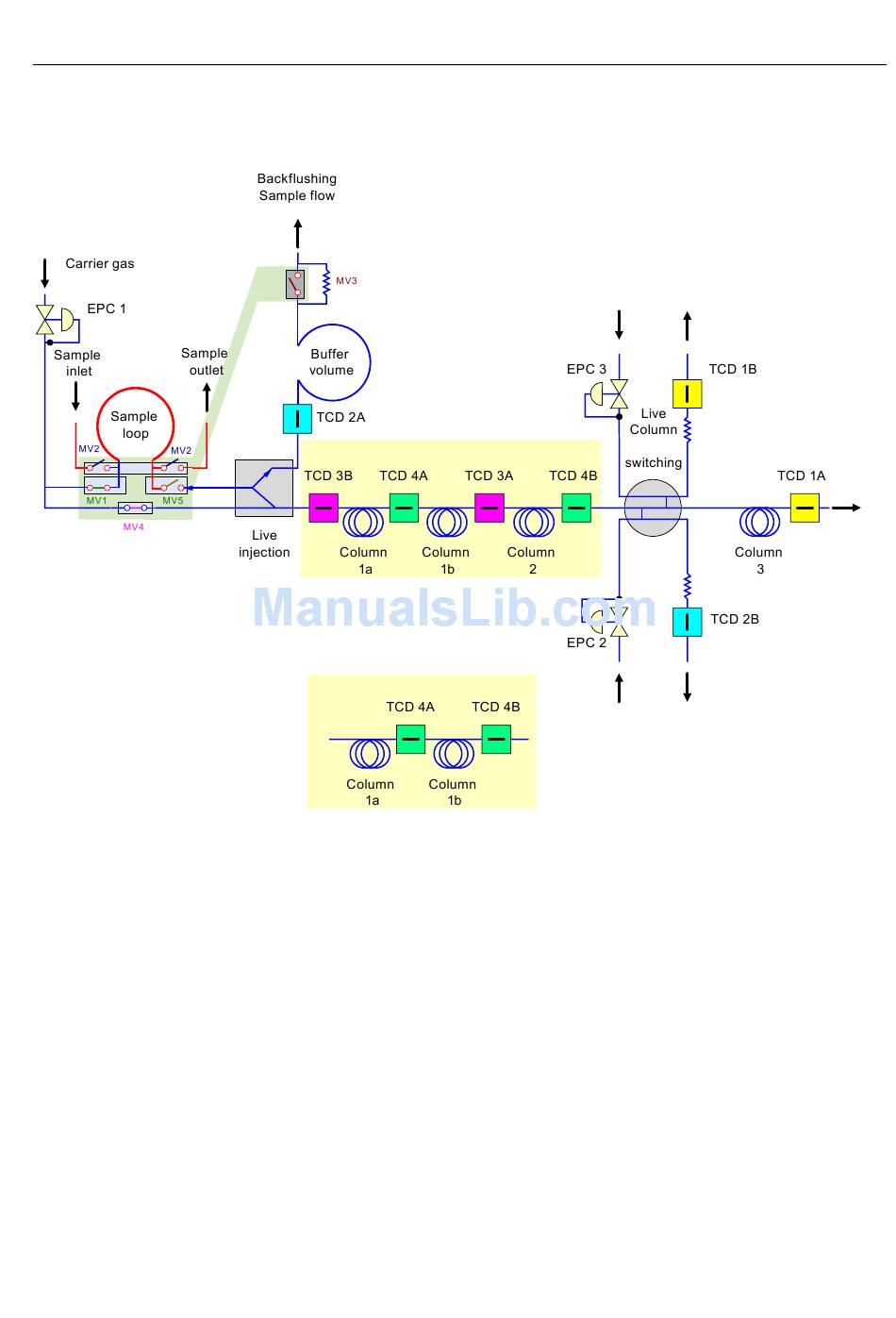

Gas flow chart for analysis modules D01 - D11 (eLive injection)
Solenoid valve 1 (MV1)
Solenoid valve 2 (MV2)
Solenoid valve 3 (MV3)
Solenoid valve 4 (MV4)
Solenoid valve 5 (MV5)
EPC
TCD
Figure 3-6 Analysis module of type D with eLive injection
MicroSAM
Operating Instructions, 06/2012, C79000-G5376-C560-07
D04 ... D11
Membrane valve function 1: "Bring sample loop to pressure of EPC 1"
Membrane valve function 2: "Purge sample loop with sample"
Membrane valve function 3: "Empty sample loop completely"
Membrane valve function 4: "Inject"
Membrane valve function 5: "Purge sample loop"
Electronic pressure control
Thermal conductivity detector
D01 ... D03
Description
3.6 Functions
