Monitoring of the chromatograph functions

The gas chromatograph is a measuring instrument for determining the concentration of
selected components in a process gas. The intended use of the device includes checking of
correct functioning at regular intervals.
Display

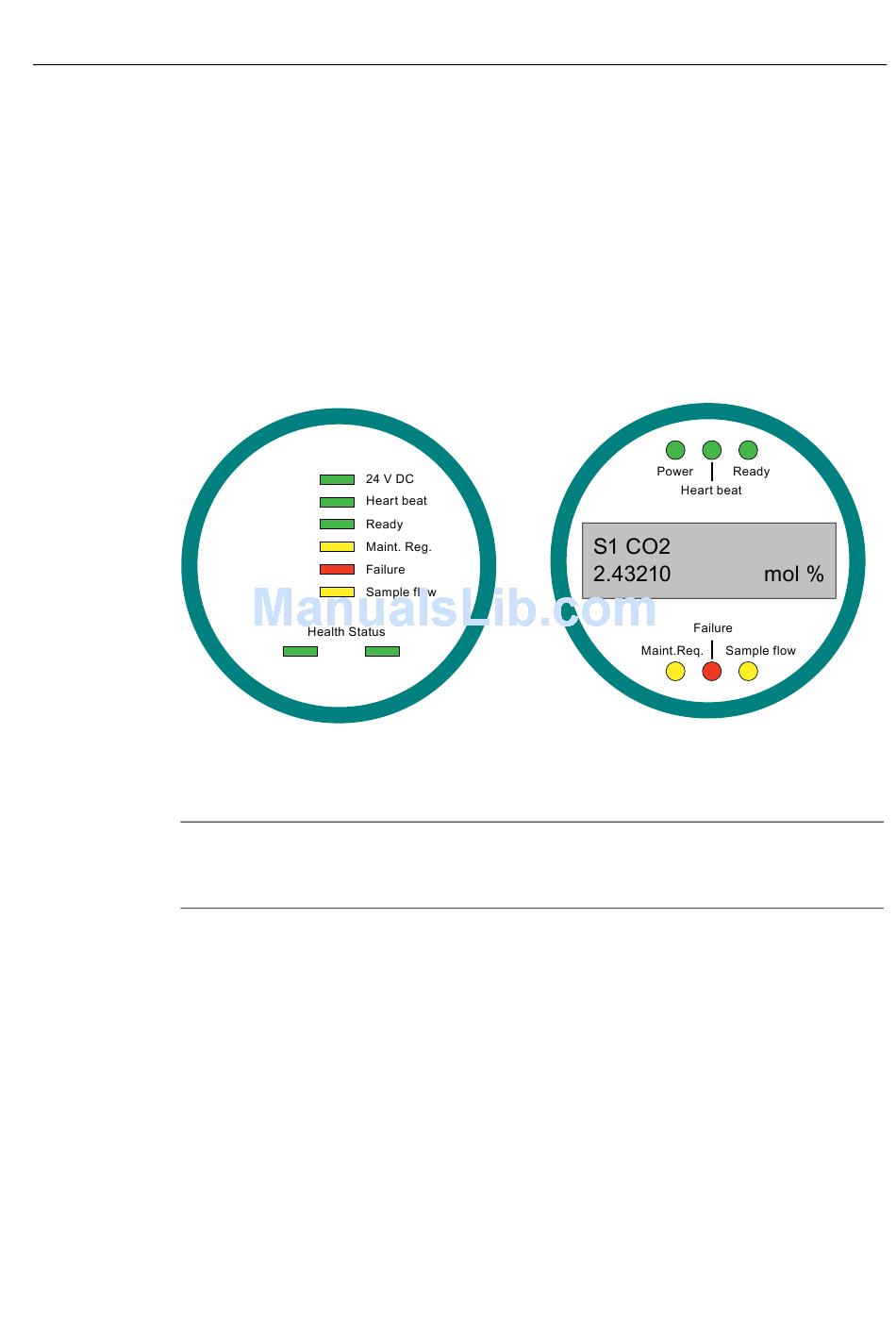

Up to release version 4, the display consists of 8 LEDs. From release version 5 onwards, the
display consists of an alphanumeric display and 6 LEDs.
Display up to and including release version 4
Note
Release version
You can find the release version of your gas chromatograph on the rating plate under "AS".
