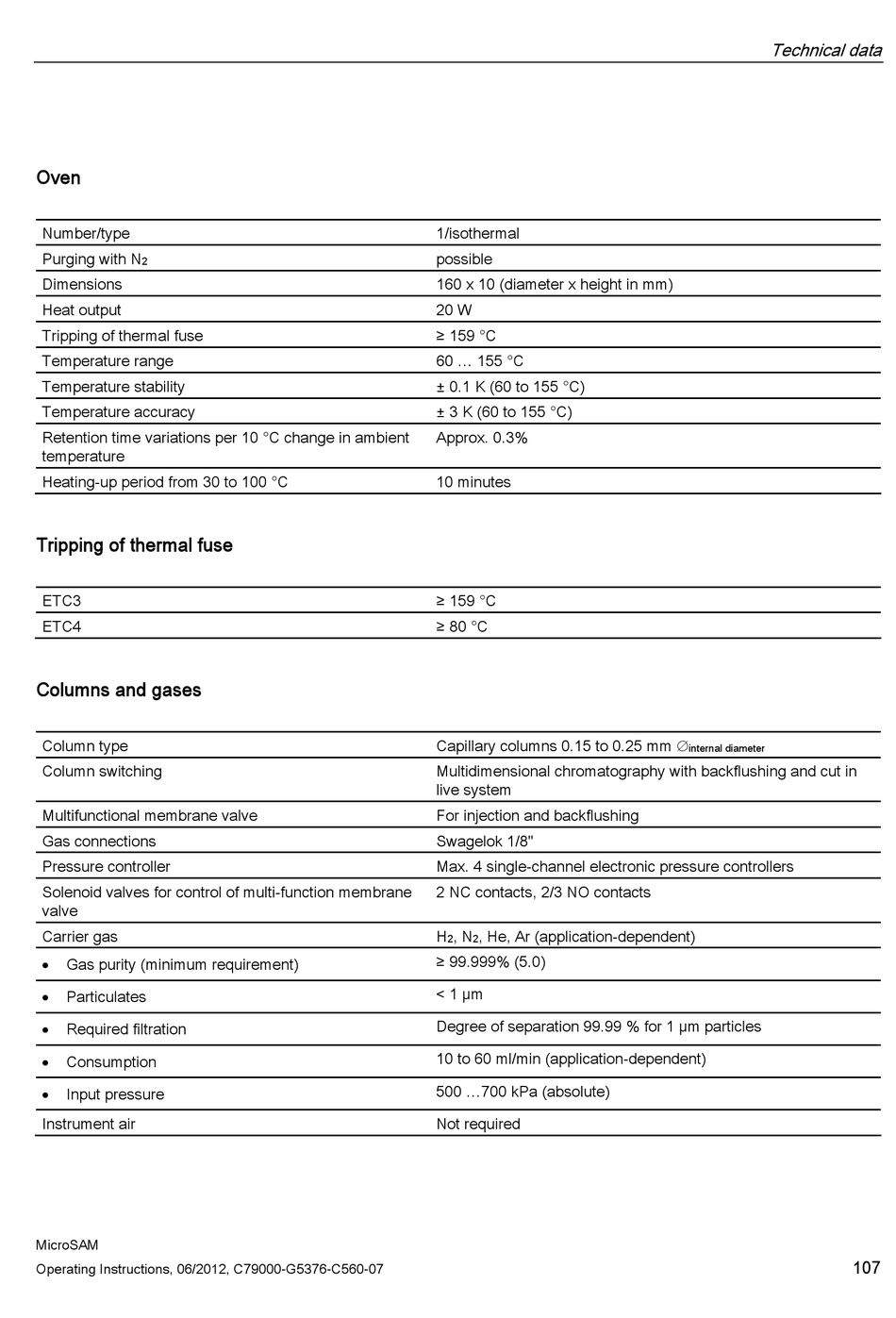

Siemens MicroSAM Operating Instructions Manual page 109

Oven
Number/type
Purging with N
2
Dimensions
Heat output
Tripping of thermal fuse
Temperature range
Temperature stability
Temperature accuracy
Retention time variations per 10 °C change in ambient
temperature
Heating-up period from 30 to 100 °C
Tripping of thermal fuse
ETC3
ETC4
Columns and gases
Column type
Column switching
Multifunctional membrane valve
Gas connections
Pressure controller
Solenoid valves for control of multi-function membrane
valve
Carrier gas
Gas purity (minimum requirement)

Particulates

Required filtration

Consumption

Input pressure

Instrument air
MicroSAM
Operating Instructions, 06/2012, C79000-G5376-C560-07
1/isothermal
possible
160 x 10 (diameter x height in mm)
20 W
≥ 159 °C
60 ... 155 °C
± 0.1 K (60 to 155 °C)
± 3 K (60 to 155 °C)
Approx. 0.3%
10 minutes
≥ 159 °C
≥ 80 °C
Capillary columns 0.15 to 0.25 mm ∅
Multidimensional chromatography with backflushing and cut in
live system
For injection and backflushing
Swagelok 1/8"
Max. 4 single-channel electronic pressure controllers
2 NC contacts, 2/3 NO contacts
H , N , He, Ar (application-dependent)
2 2
≥ 99.999% (5.0)
< 1 μm
Degree of separation 99.99 % for 1 μm particles
10 to 60 ml/min (application-dependent)
500 ...700 kPa (absolute)
Not required
Technical data
internal diameter
