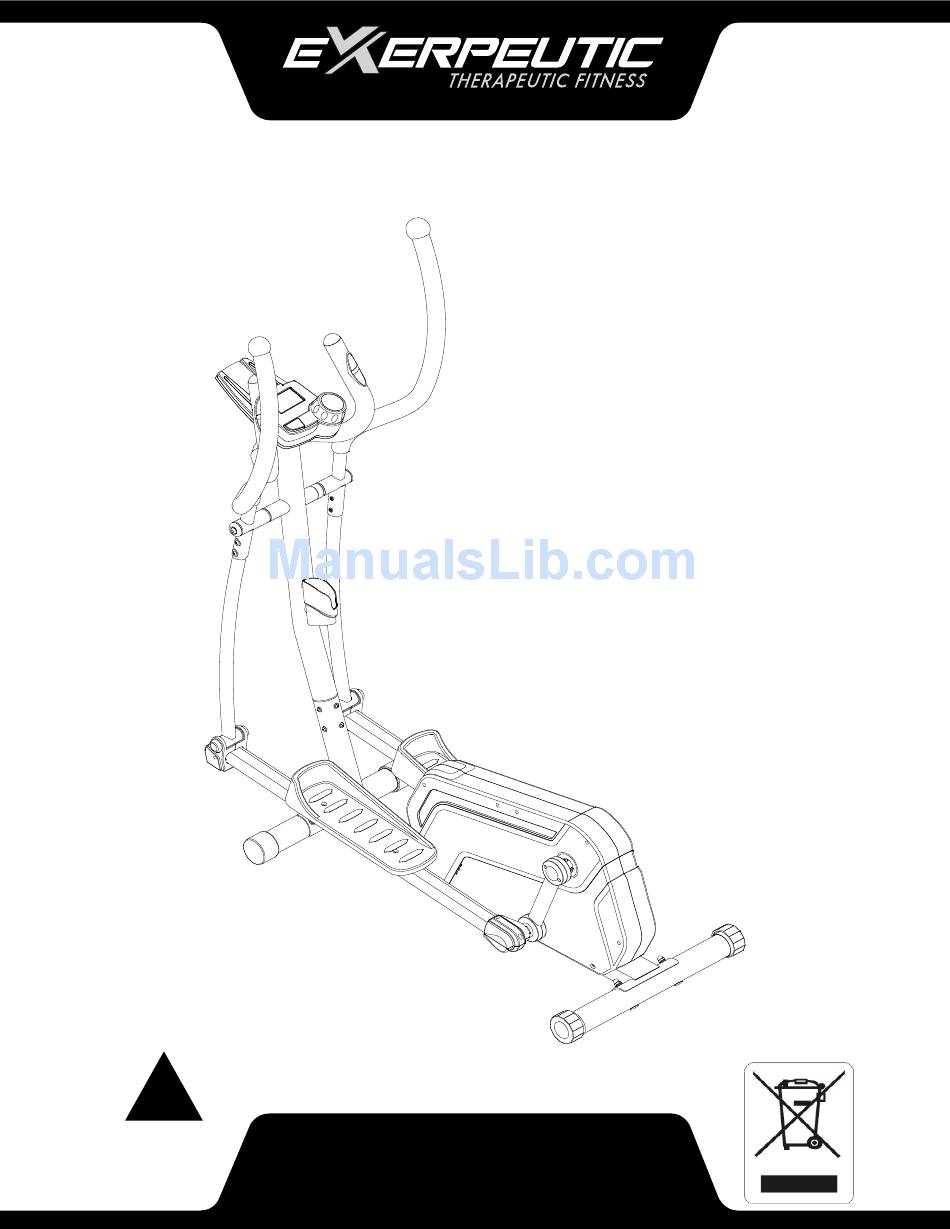

Elliptical Trainer

Read all instructions carefully before using this product.
!
Retail this owner's manual for future reference. The specifications
of this product may vary from this photo, subject to change without
notice.
1317.5‐101016
OWNER'S MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 1317.5-101016 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Exerpeutic 1317.5-101016

Summary of Contents for Exerpeutic 1317.5-101016

  • Page 1: Elliptical Trainer

    Elliptical Trainer Read all instructions carefully before using this product. Retail this owner’s manual for future reference. The specifications of this product may vary from this photo, subject to change without notice. 1317.5‐101016  OWNER’S MANUAL ...

  • Page 3: Table Of Contents

    TABLE OF CONTENTS SERVICE ----------------------------------------------------------------------------------------- LABEL PLACEMENTS ----------------------------------------------------------------------- IMPORTANT SAFETY GUIDELINES ----------------------------------------------------- OVERVIEW DRAWING ----------------------------------------------------------------------- PARTS LIST ------------------------------------------------------------------------------------- HARDWARE & TOOLS PACK -------------------------------------------------------------- ASSEMBLY -------------------------------------------------------------------------------------- COMPUTER CONSOLE----------------------------------------------------------------------- LEVEL ADJUSTMENTS & TRANSPORT ------------------------------------------------ TROUBLE SHOOTING & MAINTENANCE ---------------------------------------------- WARRANTY -------------------------------------------------------------------------------------- PARTS REQUEST FORM --------------------------------------------------------------------...

  • Page 4: Service

    SERVICE IMPORTANT: FOR NORTH AMERICA ONLY For damaged or defective product, questions, replacement parts or any other service support, please contact our customer service department (8:00 AM - 5:00 PM Pacific Standard Time, Daily) by the below methods: For The Best Service, please Email: Service@paradigmhw.com* Response Time: 1-2 Business Days*.

  • Page 6: Label Placements

    LABEL PLACEMENTS...

  • Page 7: Important Safety Guidelines

    IMPORTANT SAFETY GUIDELINES Basic precautions should always be followed, including the following safety guidelines when using this equipment. Read all of the guidelines before using this equipment. Before exercising and to avoid injuring your muscles, it is highly recommended that you perform warm-up exercises for each muscle group.

  • Page 8: Overview Drawing

    OVERVIEW DRAWING...

  • Page 9: Parts List

    PARTS LIST No. Description No. Description Main Frame 23B Lower Crank Cover B Front Stabilizer Belt Pulley Ø214 1set Rear Stabilizer Belt Pulley Ø180 Handrail Foam Grip Front Post Ø60x2.0tx975mm Ø32x5tx750mm Handlebar Foam Grip Handlebar Ø32x3tx380mm Upper Left Handrail Flywheel Ø200 Upper Right Handrail Magnetic bracket Left Handrail Arm...
  • Page 10 PARTS LIST No. Description No. Description Bushing Ø10x32x2.5 Washer Ø12xØ17x0.3T Hexagon Socket Head Bolt Spring Washer 8mm M8x18mm Bushing Ø16.3x22.4 Plastic Washer 20.1*41.8*4mm Bushing Ø19x38 Bearing 6004-2RS Bolt M6x12 Inner C Ring Ø12 Adjustment Screw Wave Washer Ø12xØ17x0.2t Round Head Self Tapping Screw Conical Washer Ø8.15xØ11x3.5 M4.5x15mm Decorate Cover Ø60...
  • Page 11 PARTS LIST No. Description No. Description 106 C Clip 20mm 116 Tension Control Knob Cable 107 Washer 19.5*25*0.5mm 117 Nylon Locknut M6 108 U Shape Plate 118 Spring Washer 10mm Hexagon Socket Head Bolt 119 Tension Control Knob M8x15mm 110 Bolt M8*10mm 120 Plastic Buckle Wave Washer 21*27*0.3 121 Crank Plug...

  • Page 12: Hardware & Tools Pack

    HARDWARE & TOOLS PACK...

  • Page 13: Main Frame

    ASSEMBLY Tool: Multi Hex Tool with Phillips Screwdriver Step 1 1-A Front Stabilizer Installation Lift up the front of the Main Frame (1) and align the Front Stabilizer (2) onto the front curved bracket of the frame so that the transport wheels on the stabilizer are facing outwards and parallel to the ground.

  • Page 14: Rear Stabilizer

    ASSEMBLY Tool: Multi Hex Tool with Phillips Screwdriver 1PC Step 2 2-A Rear Stabilizer Installation Lift up the front of the Main Frame (1) and align the Rear Stabilizer (2) onto the back curved bracket. Insert two Carriage Bolts (34) through the stabilizer and the front curved bracket and secure the bolts using two Washers (36), two Spring Washers (80), and two Cap Nuts (35).

  • Page 15: Assembly

    ASSEMBLY Tool: Multi Hex Tool with Phillips Screwdriver 1 PC Step 3 3-A Computer Console Installation Remove the four Screws (103) from the backside of the Console (102). Put them aside. Insert the Hand Pulse Sensor Wires (17) in the tube of the Front Post (4) and out of the same tube through a side hole.
  • Page 16 ASSEMBLY           Tool:     5mm Allen Wrench     MUST TIGHTEN IN SEQUENCE: A,B,C,D,E,F,G,H.  Step 4  Assembly of Front Post. Use the 5mm Allen Wrench to remove eight Hexagon Socket Head Bolts (109), eight Spring Washers (80), and eight Curve Washers (38) from the Front Post (4). Put these hardware aside. Thread the Tension Control Knob Cable (116) cable coming out from under Main Post (4) into the cable lock end of the Tension Cable (14).
  • Page 17 ASSEMBLY Tool: 5mm Allen Wrench Step 5 Assemble Handlebar. Use the 5mm Allen Wrench to remove two Hexagon Socket Head Bolts (32), two Spring Washers (80), and two Curve Washers (38) from the Front Post (4). Attach the Handlebar (5) to the Front Post (4) using the previously removed hardware: two Hexagon Socket Head Bolts (32), two Spring Washers (80), and two Curved Washers (38).
  • Page 18 ASSEMBLY Tools: 5mm Allen Wrench Multi Hex Tool with Phillips Screwdriver 1PC Step 6 Assemble Upper Handrails and Handrail Arms: The parts are marked with a “R” for the right side and a “L” for the left side. Insert the Upper Left Handrail (6L) over the Left Handrail Arm (7L) and secure in place with two Hexagon Socket Head Bolts (39), two Curve Washers (38) and two Nylon Locknuts (40).
  • Page 19 ASSEMBLY Tool: 5mm Allen Wrench Step 7 Attaching Upper Handrails and Front Post: The parts are marked with an “R” for right side and “L” for left side. Attach two Plastic Bushings (50) onto the rods coming out from the Front Post (4). Then insert a Washer (51) on each side.
  • Page 20 ASSEMBLY Tool: Multi Hex Tool with Phillips Screwdriver 1PC Step 8 Assemble Foot Pedals: The parts are marked with an “R” for right side and “L” for left side. Place the Left Foot Pedal (22L) on top of the Left Foot Bar (9L), and align to the holes. Insert two Carriage Bolts (43) into the aligned holes of the pedal and bar Left Foot Pedal (22L).
  • Page 21 ASSEMBLY Tool: Multi Hex Tool with Phillips Screwdriver 1PC Step 9 Assemble Upper Crank Cover A/B Remove the plastic tape covering the left side Crank (10) and rotate the left side Crank (10) to its highest position. Slide one Pedal Cover A (23A) all the way towards the outwards facing side of the left side Crank (10).

  • Page 22: U Shape Bracket

    ASSEMBLY Tool: 5mm Allen Wrench Step 10 Assemble Foot Bars: The parts are marked with an “R” for right side and “L” for left side. Slide the U Shape Bracket (8) all the way in the shaft of the left side Crank (10). Insert one Hexagon Socket Head Bolt (53), one Wave Washer (70), and one Washer (71).
  • Page 23 ASSEMBLY Tools: 5mm Allen Wrench Multi Hex Tool with Phillips Screwdriver 1PC Step 11 Assemble Handrail Arms: The parts are marked with an “R” for right side and “L” for left side. Insert the Left Handrail Arm (7L) into the U shaped Bracket at the front end of the Left Foot Bar (9L).
  • Page 24 ASSEMBLY Tool: Multi Hex Tool With Phillips Screwdriver Step 12 Assemble U Shape Bracket Covers. Pair the U Shaped Bracket Covers A (97A) & Covers B (97B) for each of the Cranks (10). Ensure that each pair are orientated so that the cut-out edges are facing the Crank (10). Insert the posts of the U Shape Bracket Covers B (97B) into the holes at the rear of the Left (9L) &...
  • Page 25 ASSEMBLY Tool: Multi Hex Tool with Phillips Screwdriver Step 13 Assemble Foot Bar Covers A/B. Sandwich each of the axis brackets where the Left Foot Bar (9L) & Right Foot Bar (9R) meet with their respective Handrail Arms (7L) & (7R) with both the Foot Bar Covers A (75A) & Covers B (75B).

  • Page 26: Bottle Holder

    ASSEMBLY Tool: Multi Hex Tool with Phillips Screwdriver 1PC Step 14 Bottle Holder Installation: Use the Multi-Hex Tool with Phillips Screwdriver to remove two Bolts (33) on the Front Post (4). Attach the Bottle Holder (101) onto the Front Post (4) and tighten them with two Bolts (33) that were previously removed using the same Multi-Hex Tool with Phillips Screwdriver.

  • Page 27: Computer Console

    COMPUTER CONSOLE USING YOUR COMPUTER CONSOLE The computer can be activated by pressing the button or by pedaling. If you leave the equipment idle for approximate 5 minutes, the power will turn off automatically. BUTTON FUNCTIONS: Press the button to select each function of computer. Press and hold the button for 3 seconds, all data values will clear to zero except the ODO (ODOMETER) data values.

  • Page 28: Spring 2

    COMPUTER CONSOLE CAL (CALORIES): Displays the total accumulated calories burned during workout. (This data is a rough guide for comparison of different exercise sessions and should not be used in medical treatment). ODO (ODOMETER): Displays the total accumulative distance traveled. RPM (Revolutions per Minute): Displays the current revolutions per minute.

  • Page 29: Level Adjustments & Transport

    LEVEL ADJUSTMENTS & TRANSPORT Adjusting the Rear Stabilizer End Cap Turn the Rear Stabilizer End Caps on the Rear Stabilizer (3) as needed to level the elliptical. Transporting the Elliptical Hold the Handlebar (5) and pull the machine until the wheels on the Front Stabilizer (2) make contact with the floor.

  • Page 30: Troubleshooting & Maintenance

    TROUBLESHOOTING & MAINTENANCE TROUBLE SHOOTING PROBLEM: The elliptical wobbles when in use. SOLUTION: Turn the rear stabilizer end cap on the rear stabilizer as needed to level the elliptical. PROBLEM: There is no display on the computer console. SOLUTION: Remove the computer console and verify the wires that come from the computer console are properly connected to the wires that come from the front post.

  • Page 31: Warranty

    WARRANTY MANUFACTURER’S LIMITED WARRANTY Paradigm Health & Wellness warrants to the original purchaser that this product is free from defects in material and workmanship when used for the purpose intended, under the conditions that it has been installed and operated in accordance with Paradigm’s Owner’s Manual.

  • Page 32: Parts Request Form

    PARTS REQUEST FORM Paradigm Health & Wellness, Inc. EMAIL THIS FORM WITH YOUR RECIEPT OF PURCHASE TO Service@paradigmhw.com NAME: _______________________________________________________ ADDRESS: ____________________________________________________ CITY ______________ STATE ______________ ZIP ___________________ TELEPHONE: (Day) _____________________________________________ (Night) ____________________________________________ SERIAL#: _____________________________________________________ MODEL#: _____________________________________________________ PURCHASE DATE: ______________________________________________ PLACE OF PURCHASE: _________________________________________ PART # DESCRIPTION...
