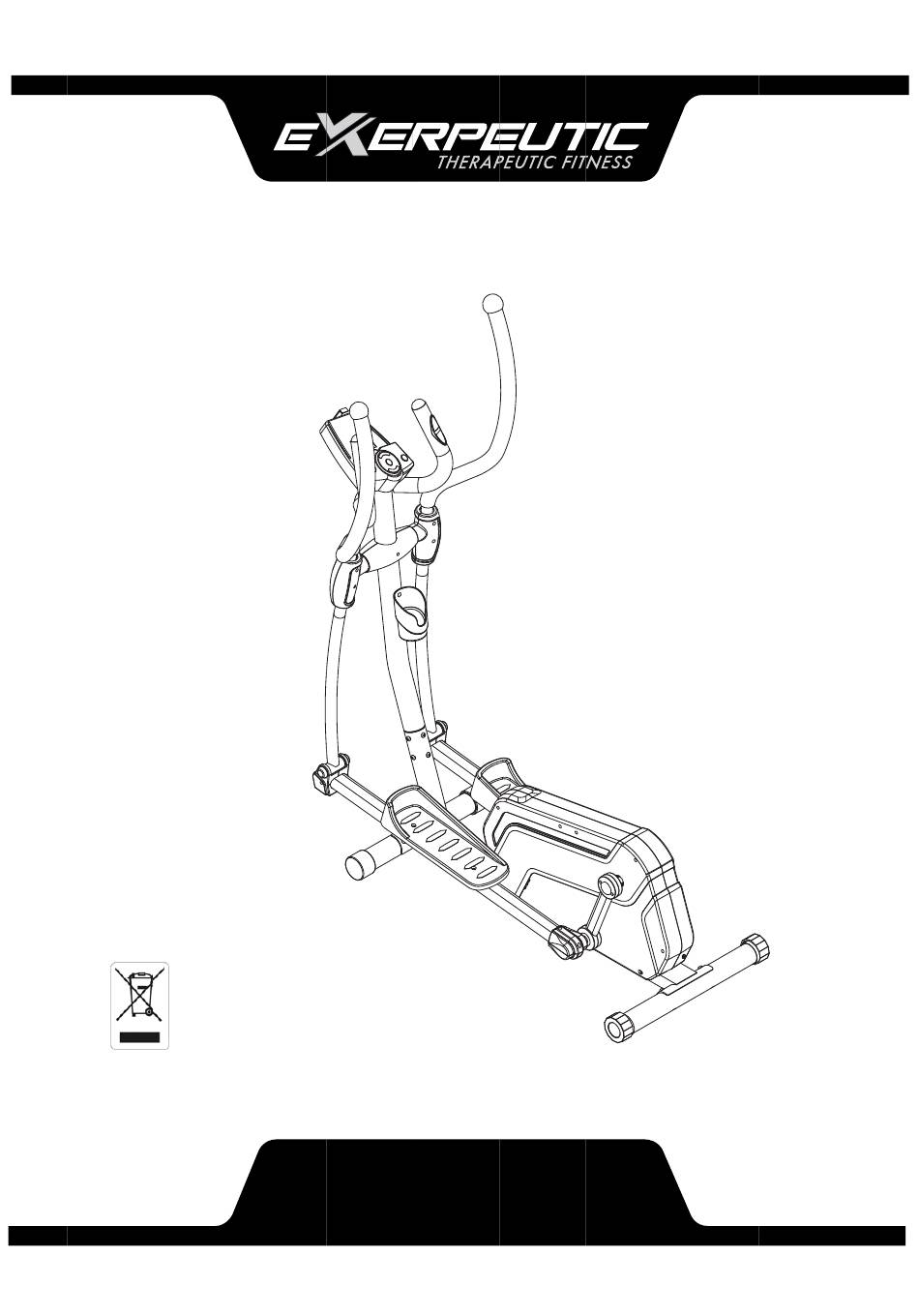

Owner's Manual
IMPO
ORTANT: R
Retai
in this ow
The s
specificatio
witho
out notice.
Item
m#1318
Ell
Read all in
nstructions
wner's man
nual for fu
ons of this
product m
may vary fro
OW
WNER
liptic
cal
s carefully
y before u
using this
uture refer
rence.
om this pho
R'S M
MANUA
product.
oto, subjec
ct to chang ge
AL
Advertisement
Table of Contents
Related Manuals for Exerpeutic 1318
Summary of Contents for Exerpeutic 1318
- Page 1 The s specificatio ons of this product m may vary fro om this pho oto, subjec ct to chang ge witho out notice. WNER R’S M MANUA Item m#1318 ...
- Page 2 1318.2‐030615 ...
-
Page 3: Table Of Contents
TABLE OF CONTENTS SERVICE ------------------------------------------------------------------------ 2 LABEL PLACEMENT --------------------------------------------------------- 3 PRODUCT SAFETY ---------------------------------------------------------- 4 OVERVIEW DRAWING ------------------------------------------------------ 5 PARTS LIST --------------------------------------------------------------------- 6 HARDWARE & TOOLS LIST ----------------------------------------------- 9 ASSEMBLY ---------------------------------------------------------------------- 10 COMPUTER --------------------------------------------------------------------- 25 ADJUSTMENT ----------------------------------------------------------------- 32 TROUBLE SHOOTING & MAINTENANCE ----------------------------- 33 WARM UP ---------------------------------------------------------------------- 34 WARRANTY -------------------------------------------------------------------- 35 FAX FORM ---------------------------------------------------------------------- 36... -
Page 4: Service
SERVICE IMPORTANT: FOR NORTH AMERICA ONLY To request product service and order replacement parts, please call our customer service department at: 1-844-641-7921 Monday through Friday, 8:00 AM-5:00 PM Pacific Standard Time, service@paradigmhw.com or email us at: Please visit our website at www.paradigmhw.com. Please have the following information ready when requesting for service: Your name Phone number... -
Page 5: Label Placement
LABEL PLACEMENT... -
Page 6: Product Safety
PRODUCT SAFETY Basic precautions should always be followed, including the following Important safety instructions when using this equipment. Read all instructions before using this equipment. Read all the instructions in this manual and do warm up exercises before using this product. Before exercise, in order to avoid injuring your muscles, warm-up exercise for every muscle group is highly recommended. -
Page 7: Overview Drawing
OVERVIEW DRAWING... -
Page 8: Parts List
PARTS LIST Description Qty No. Description 001 Main Frame 1 021R Right Cover 002 Front Stabilizer Ø60x1.5tx510mm 1 022L Left Foot Pedal 003 Rear Stabilizer Ø60x1.5tx590mm 1 022R Right Foot Pedal 004 Front Post Ø60x2.0tx975mm 1 023A Lower Crank Cover A (Black) 005 Handlebar Ø32 1 023B Lower Crank Cover B (Black) 006L Upper Left Handrail Ø32... - Page 9 PARTS LIST Description Qty No. Description 044 Nylon Locknut M10 3 070 Wave Washer Ø16.2xØ25x0.5t 045 Nylon Locknut M6 4 071 Washer Ø8xØ25x2.0T Hexagon Socket Head Bolt 046 Washer Ø6xØ14x1.0t 6 072 M8x54mm Hexagon Socket Head Bolt 047 Tension Bracket & Eyebolt Set I 4 073 M8x50mm 048 Washer Ø10xØ20x3.0T...
- Page 10 PARTS LIST Description Qty No. Description Belt 855 PK5 1 104 Belt Pulley Bracket Hexagon Socket Head Bolt Washer Ø20.5xØ25x1T 3 105 M8x12mm 097A U Shape Bracket Cover A 2 106 C-ring Φ20 097B U Shape Bracket Cover B 2 107 Washer Ø19.5xØ25x0.5T Motor 1 108...
-
Page 11: Hardware & Tools List
HARDWARE & TOOLS LIST (#34) Carriage Bolt (#35) Cap Nut M8 (#36) Washer (#18) Washer 4 PCS 4 PCS 4 PCS 2 PCS (#39) Hexagon Socket (#40) Nylon Locknut (#41) Hexagon Socket (#42) Flat Head Bolt 4 PCS Head Bolt Washer 4 PCS 2 PCS... -
Page 12: Assembly
ASSEMBLY Tool: Multi Hex Tool with Phillips Screwdriver Front Stabilizer Installation. Lift up the main frame (1) towards the front, and then align the Front Stabilizer (2) onto the front curve of the Main Frame (1). Attach two Carriage Bolts (34) and on the other ends of bolts with two Washers (36) and two Cap Nuts (35). - Page 13 ASSEMBLY Tool: Multi Hex Tool with Phillips Screwdriver Rear Stabilizer Installation. Lift up the Main Frame (1) towards the end, and then align the Rear Stabilizer (3) onto the rear curve of the Main Frame (1). Attach Two Carriage Bolts (34) and on the other ends of bolts with two Washers (36) and two Cap Nuts (35).
- Page 14 ASSEMBLY Tool: Multi Hex Tool with Phillips Screwdriver 3.Computer Installation Insert the wires that come from the Computer (102) into the Handlebar Post (4), and pull it out from the hole located on the right hand side of Front Post (4). Attach the Computer (102) onto the top end of the Front Post (4) with four Cross Recessed Pan Head Bolts (103) that were removed.
- Page 15 ASSEMBLY Tool: Allen Wrench MUST TIGHTEN IN SEQUENCE: A,B,C,D,E,F,G,H. Assemble Front Post. Use the Allen Wrench to remove eight Hexagon Socket Head Bolts (109), eight Spring Washers (80), and eight Curve Washers (38) from the Front Post (4). Connect the Computer Wire (12) from the Front Post (4) with the Extension Sensor Wire (15) from the Main Frame (1).
- Page 16 ASSEMBLY Tool: Allen Wrench 5. Assemble Handlebar. A. Use Allen Wrench to remove two Hexagon Socket Head Bolts (32) and two Curve Washers (38) from the Front Post (4). Take off the Wire Plug (89) from the right hand side of the Front Post (4). B.
- Page 17 ASSEMBLY Tool: Allen Wrench Multi Hex Tool with Phillips Screwdriver Assemble Upper Handrails and Handrail Arms: “R” for right side and “L” for left side. A. Insert the Upper Left Handrail (6L) into Left Handrail Arm (7L), tighten with two Hexagon Socket Head Bolts (39) and two Nylon Locknuts (40) by Allen Wrench and Multi Hex Tool with Phillips Screwdriver.
- Page 18 ASSEMBLY Tool: Allen Wrench 7. Assemble Upper Handrails and Front Post: “R” for right side and “L” for left side. Insert Plastic Bushings (50) on both sides of the central axis on the Front Post (4). Attach Washers (51) behind them. Insert the Upper Left/Right Handrails (6L, 6R) onto both sides of the central axis on the Front Post (4).
- Page 19 ASSEMBLY Tool: Multi Hex Tool with Phillips Screwdriver Assemble Foot Pedals: “R” for right side and “L” for left side. A. Place the Left Foot Pedal (22L) on top of the Left Foot Bar (9L), align to the bolt hole with two Carriage Bolts (43) two Washes (46) and two Nylon Locknuts (45) by using Multi Hex Tool with Phillips Screwdriver.
- Page 20 ASSEMBLY Tool: Allen Wrench Assemble Foot Bars: “R” for right side and “L” for left side. A. Insert the U shape bracket (8) at the back of the Left Foot Bar (9L) into the left Crank (10). Then attach one Wave Washer (70), following with another Washer (71), at the end lock it with one Hexagon Socket Head Bolt (53).
- Page 21 ASSEMBLY Tool Multi Hex Tool with Phillips Allen Wrench Screwdriver 10. Assemble Handrail Arms: “R” is for right side and “L” is for left side. A. Place the Left Handrail Arm (7L) into the U shape from Left Foot Bar (9L). Align the hole then tighten with one Hexagon Socket Head Bolt (41), one Washer (42) and one Nylon Locknut (44) by using the Allen Wrench and Multi Hex Tool with Phillips Screwdriver until firm and secure.
- Page 22 ASSEMBLY Tool: Multi Hex Tool with Phillips Screwdriver 11. Assemble Front and Rear Decorate Covers for Front Post and Handrail Arm Covers A/B. A. Remove two Bolts (69) from the Front and Rear Decorate Covers (13A, 13B) by using the Multi Hex Tool with Phillips Screwdriver. B.
- Page 23 ASSEMBLY Tool: Multi Hex Tool with Phillips Screwdriver 12. Assemble U Shape Bracket Covers. Place the U Shape Bracket Covers A/B (97A, 97B) around the U Shape Brackets (8). Make sure the side with holes is facing the Crank (10). Tight them with four Round Head Self Tapping Screws (59) by using the Multi Hex Tool with Phillips Screwdriver until firm and secure.
- Page 24 ASSEMBLY Tool: Multi Hex Tool with Phillips Screwdriver 13. Assemble Foot Bar Covers A/B. Place the Foot Bar Covers-A/B (75A, 75B) around the Left/Right Foot Bars (9L, 9R). Make sure the side with holes on the Foot Bar Covers-A/B (75A, 75B) is facing the Left/Right Foot Bars (9L, 9R).
- Page 25 ASSEMBLY Tool: Multi Hex Tool with Phillips Screwdriver 14. Bottle Holder Installation. Remove two Bolts (33) on the Front Post (4). Attach the Bottle Holder (101) onto the Front Post (4), then tighten them with two Bolts (33) that were removed by using the Multi Hex Tool with Phillips Screwdriver until firm and secure.
- Page 26 ASSEMBLY 15. Adaptor Installation. Plug one end of the Adaptor (100) into the power jack of the Power Supply Cable (99) on the back of the Right Cover (21R). Before plugging in, make sure to check carefully the specifications on the Adaptor. Plug the other end of the Adaptor (100) into the electrical wall outlet.
- Page 27 OMPUT I. Display: 1. The fi eld is an in ndividual L LCD display ying: TIME, , RPM\SPE EED, DIST TANCE, WA ATT\CALO ORIES, PU LSE, USE 2. Dot m matrix displ ● The LC CD screen n will have a single do ot matrix d isplay with...
- Page 28 OMPUT III. USER R Operatio on instruc ctions (U0~ ~U4): Select U USER 0, US SER 1, US SER2, USE ER 3, USE R 4: The mes ssage read ds “U0” unt til a selecti ion is mad e. By pre essing ▲...
-
Page 29: Computer
COMPUTER 2. Press ENTER button to accept PROGRAM By pressing the ▲ or ▼ button to adjust the P1-P12 Press ENTER button to accept program. By pressing the ▲ or ▼ button to adjust the Profile . Press ENTER button to accept LEVEL. By pressing the ▲ or ▼ button to adjust the TIME value. - Page 30 COMPUTER Press ENTER button to accept TIME. By pressing the ▲ or ▼ button to adjust the DISTANCE value. Press ENTER button to accept DISTANCE. By pressing the ▲ or ▼ button to adjust the CALORIES value. 6. Press ENTER button to accept H.R.C. (55%, 75%, 90%, Tag) By pressing the ▲...
- Page 31 COMPUTER 2. ENTER button: To confirm set value and enter into the next set value. 3. ▲ and ▼ button: (1). Used to change SEX, AGE, HEIGHT, WEIGHT, TIME, DISTANCE, CALORIES, TARGET HRC and LEVEL; (2). Work level can be changed during a workout. 4.
- Page 32 OMPUT VII. Pre-defi ined pro gram pro ofile: ● ● MANUAL ● PROGR ● FITNE ● PERSO ONAL ● ● WATT ● H.R.C ● ● RANDOM rogram P Profile fo or the P1~ ~P12 Pro ogram ● P2 ● P3 ●...
- Page 33 OMPUT ● P5 ● P6 ● P4 ● P8 ● P9 ● P7 ● P11 ● P12 ● P10 Progra m Profile e for the H.R.C. ( 55%, 75% %, 90%, Tag) Pro ogram ●HRC (75%) ●HRC (5 55%) ●HRC C (90%) ●HRC (T Tag)
-
Page 34: Adjustment
ADJUSTMENT Rear Stabilizer End Cap Adjusting the Rear Stabilizer End Cap Turn the rear stabilizer end cap on the rear stabilizer as needed to level the elliptical. -
Page 35: Trouble Shooting & Maintenance
TROUBLE SHOOTING &MAINTENANCE TROUBLE SHOOTING PROBLEM: The elliptical wobbles when in use. SOLUTION: Turn the rear stabilizer end cap on the rear stabilizer as needed to level the elliptical. PROBLEM: There is no display on the computer console. SOLUTION: Remove the computer console and verify the wires that come from the computer console are properly connected to the wires that come from the front post. -
Page 36: Warm Up
WARM U adriceps S Stretch With h one hand d against a a wall for b balance, re ach behind u and pull y your right fo oot up. B Bring your h heel as clo to y your buttoc cks as poss sible. -
Page 37: Warranty
WARRANTY MANUFACTURER’S LIMITED WARRANTY Paradigm Health & Wellness warrants to the original purchaser that this product is free from defects in material and workmanship when used for the purpose intended, under the conditions that it has been installed and operated in accordance with Paradigm’s Owner’s Manual. -
Page 38: Fax Form
FAX FORM Paradigm Health & Wellness, Inc. PARTS REQUEST FAX FORM Please fax this form to (1-626-810-2166) OR YOU CAN EMAIL CUSTOMER SERVICE REQUESTS TO service@paradigmhw.com NAME: _______________________________________________________ ADDRESS: ____________________________________________________ CITY ______________ STATE ______________ ZIP ___________________ TELEPHONE: (Day) _____________________________________________ (Night) ____________________________________________ (Email Address) ____________________________________ SERIAL#: __________________________________________ MODEL#: __________________________________________...
