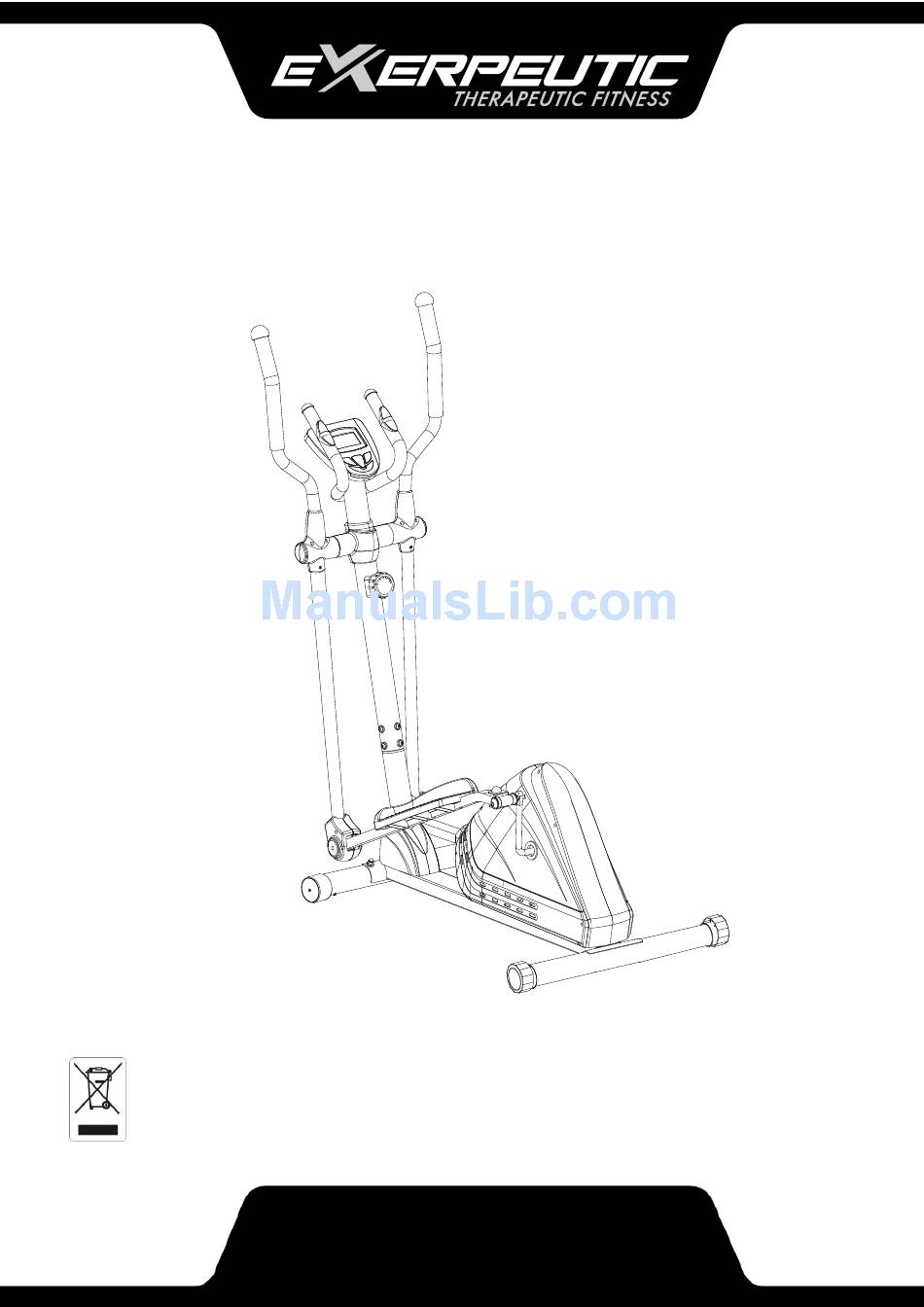

Elliptical
IMPORTANT: Read all instructions carefully before using this product. Retain this
owner's manual for future reference. The specifications of this product may vary from
this photo and, subject to change without notice.
OWNER'S MANUAL
1302.7-070617

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 1302.7 and is the answer not in the manual?

Questions and answers

Related Manuals for Exerpeutic 1302.7

Summary of Contents for Exerpeutic 1302.7

  • Page 1 Elliptical IMPORTANT: Read all instructions carefully before using this product. Retain this owner’s manual for future reference. The specifications of this product may vary from this photo and, subject to change without notice. OWNER’S MANUAL 1302.7-070617...
  • Page 2 THIS PAGE WAS INTENTIONALLY LEFT BLANK...

  • Page 3: Service

    PLEASE DO NOT RETURN THIS PRODUCT TO THE STORE. STOP. Contact customer service if you have any questions regarding assembly or proper operation of the machine. Email us at: Service@paradigmhw.com Or call us at: 1-844-641-7921 Hours: 8:00 am to 5:00 pm (PST) Daily...
  • Page 4 TABLE OF CONTENTS SERVICE ------------------------------------------------------------------------ 2 LABEL PLACEMENT --------------------------------------------------------- 3 PRODUCT SAFETY ---------------------------------------------------------- 4 OVERVIEW DRAWING ------------------------------------------------------ 5 PART LIST ----------------------------------------------------------------------- 6 HARDWARE PACK------------------------------------------------------------ 7 ASSEMBLY ---------------------------------------------------------------------- 8 COMPUTER -------------------------------------------------------------------- 16 ADJUSTMENTS --------------------------------------------------------------- 17 MOVING THE ELLIPTICAL ------------------------------------------------- 18 TROUBLE SHOOTING & MAINTENANCE ----------------------------- 19 WARRANTY -------------------------------------------------------------------- 20 PARTS REQUEST FORM --------------------------------------------------- 21...
  • Page 5 SERVICE IMPORTANT: FOR NORTH AMERICA ONLY For damaged or defective product, questions, replacement parts or any other service support, please contact our customer service department by the below methods: For The Best Service, please Email: service@paradigmhw.com Response Time: 1-2 Business Days Emailing us with the information above will be the best method to receive a response during peak business hours Website:...

  • Page 6: Label Placement

    LABEL PLACEMENT...
  • Page 7 IMPORTANT SAFETY GUIDELINES Read all guidelines before using this machine. When using this machine, basic precautions should always be followed, including the following: WARNING - To reduce the risk of injury to persons: Make sure your equipment is correctly assembled before you use it. Be sure all screws, nuts, and bolts are tightened prior to use.
  • Page 8 IMPORTANT SAFETY GUIDELINES Do not use this equipment if you have any of the following conditions or ailments: • Pregnancy • Extreme obesity • Middle ear infection • Hiatus hernia or Ventral hernia • Glaucoma, retinal detachment or conjunctivitis • Use of anticoagulants including Aspirin in high doses.

  • Page 9: Overview Drawing

    OVERVIEW DRAWING...

  • Page 10: Part List

    PARTS LIST Description Description Main Frame 27 Tension Cable 1800 Right Foot Bar 28 Nut Cap S13 Left Foot Bar 29 Self-Tapping Phillips Screw ST4.2*25 Left Handrial Post 30L Left Foot Bar Cover Right Handrail Post 30R Right Foot Bar Cover Left Handrail Arm Ф32*1.5 31 Big Flat Washer Ф6*Ф18*1.5 Right Handrail Arm Ф32*1.5...

  • Page 11: Parts List

    PARTS LIST Description Description Hand Pulse Sensor 79 Belt Foam Grip φ31*φ37*480 80 Idle Wheel Bracket Foam Grip φ27*φ33*360 81 Phillips Screw M6*15 Ball Cap 82 Eye Bolt M6*36 Round Cap 83 U Shaped Bracket Self-Drilling Phillips Screw ST4.2*25 84 Hex Nut M6 Curve Washer Ф20*Ф5.2 85 Spring Washer Ø6 Phillips Screw M5*55...
  • Page 12 HARDWARE & TOOLS PACK...

  • Page 13: Hardware Pack

    ASSEMBLY TOOL Multi Hex Tool with Phillips Screwdriver 1 PC STEP 1 1a. Installing the Front Stabilizer – Align the Front Stabilizer (7) onto the front curve of the Main frame (1). Make sure the transport wheels are positioned toward the front and parallel to the floor.

  • Page 14: Assembly

    ASSEMBLY TOOL 6mm Allen Wrench 1PC Multi Hex Tool with Phillips Screwdriver 1 PC MUST TIGHTEN IN SEQUENCE: A,B,C,D,E,F,G,H. STEP 2 2a. Removing The Hardware From The Front Post – Use the 6mm Allen Wrench to remove eight Socket Hex Bolts (38), eight Curve Washers (11), and eight Spring Washers (41) from the Main Frame (1).
  • Page 15 ASSEMBLY TOOL 6mm Allen Wrench STEP 3 Removing The Hardware From The Front Post–Remove the Pre-Installed Hexagon Socket Head Bolts (40), Spring Washers (41), Big Washers (46), and Washers (42) from the left and right horizontal posts on the Front Post (5). 3b.
  • Page 16 ASSEMBLY TOOLS 8mm Allen Wrench Multi-Hex Wrench STEP 4 4a. Left Foot Bar Installation –Insert the Left Bracket Bolt (13L) along with a Wave Washer (15) through the U Shaped Bracket (20) located on the back of the Left Foot Bar (2L). Secure the Left Bracket Bolt (13L) to the Left side of the Crank (75) by turning the Bolt Counter-Clockwise.
  • Page 17 ASSEMBLY Fig. B NOTE: Look to Fig. B for the correct installation of the Pedal Bolts. Keep the bolt perfectly straight when the bolt goes through the Foot Bars, and is being screwed into the Crank correctly. If the bolt is screwed into the crank at an angle, this may damage the equipment.
  • Page 18 ASSEMBLY TOOLS Multi Hex Tool with Phillips Screwdriver 1 PC STEP 5 5a. Pedal Installation – Install the Left Pedal (33) onto the Left Foot Bar (2L) using three Bolts (26), three Flat Washers (25) and three Lock Nuts (24). Tighten the Lock Nuts (24) using the Multi Hex Tool with Phillips Screwdriver provided.
  • Page 19 ASSEMBLY TOOL Multi Hex Tool with Phillips Screwdriver 1 PC STEP 7 7a. Installing the Left Handrail Arm – Insert the Left Handrail Arm (4L) onto the Left Handrail Post (3L) using two Carriage Bolts (44), two Curve Washers (45) and two Lock Nut (24). Tighten the Lock Nut (24) using the Multi Hex Tool with Phillips Screwdriver provided.
  • Page 20 ASSEMBLY TOOL Multi Hex Tool with Phillips 6mm Allen Wrench Screwdriver 1 PC 8a. Hardware Removal- Remove the two Phillips Screws (88) from the back of the Console (53). Then remove the two Socket Hex Bolts (38) and two Curve Washers (93) from the Front Post (5). 8b.
  • Page 21 ASSEMBLY 9a. Cover Installation - Attach the Front and Rear Front Post Covers (90, 54) onto the Front Post (5) using two Self-Tapping Phillips Screws (29). Then, tighten using the Multi Hex Tool with Phillips Screwdriver provided. Attach the Left Front Handrail Post Cover (49L) and Left Rear Handrail Post Cover-B (50L) onto the Left Handrail Post (3L) with four Screws (94) and tighten using the Multi Hex Tool with Phillips Screwdriver.
  • Page 22 CONSOLE Button functions: MODE: Press to change the current statistics being displayed. Hold for 3 seconds to reset all the workout statistics to 0, except odometer. SET: Use to set a goal value for TIME, DISTANCE, CALORIES, or PULSE. RESET: Resets the current exercise values, as well as goal values. Hold for 3 seconds to reset all the workout statistics to 0, except odometer.

  • Page 23: Adjustments

    ADJUSTMENTS Adjusting the Tension Control Knob To increase the resistance, turn the Tension Control Knob (51) in a CLOCKWISE direction. To decrease the resistance, turn the Tension Control Knob (51) in a COUNTER-CLOCKWISE direction. Adjusting the Rear Stabilizer End Cap Turn the Rear Stabilizer End Caps (10) on the Rear Stabilizer (8) as needed to level the Rear Stabilizer (8)
  • Page 24 TRANSPORTING THE ELLIPTICAL Transporting the Elliptical Hold the Handlebar (6) and lift up the machine until the wheels on the Front Stabilizer (7) make contact with the floor. Push or pull the unit to the desired location, then gently lower the machine and Rear Stabilizer (8) until it makes contact with the ground.

  • Page 25: Trouble Shooting & Maintenance

    TROUBLESHOOTING & MAINTENANCE TROUBLESHOOTING PROBLEM: The elliptical wobbles when in use. SOLUTION: Turn the Rear Stabilizer End Cap (10) on the Rear Stabilizer (8) as needed to level the elliptical. PROBLEM: The Console (53) does not turn on. SOLUTION: Remove the Console (53) and verify that ALL wires that come from the Console (53) are properly connected to the wires that come from the Front Post (5).

  • Page 26: Warranty

    WARRANTY MANUFACTURER’S LIMITED WARRANTY Paradigm Health & Wellness warrants to the original purchaser that this product is free from defects in material and workmanship when used for the purpose intended, under the conditions that it has been installed and operated in accordance with Paradigm’s Owner’s Manual.

  • Page 27: Parts Request Form

    PARTS REQUEST FORM Paradigm Health & Wellness, Inc. EMAIL THIS FORM WITH YOUR RECEIPT OF PURCHASE TO Service@paradigmhw.com NAME:_____________________________________________________________________________________ ADDRESS:__________________________________________________________________________________ CITY:________________________ STATE:_____________ ZIP:_______________________________________ TELEPHONE: (Day)______________________________________________________________________ (Night)_____________________________________________________________________ SERIAL#:___________________________________________________________________________________ MODEL#:___________________________________________________________________________________ PURCHASE DATE:___________________________________________________________________________ PLACE OF PURCHASE:_______________________________________________________________________ PART # DESCRIPTION “YOUR ORDER WILL BE PROCESSED WITHIN 3 BUSINESS DAYS” This form can also be faxed to #: 626-810-2166...
