Before using the terminal

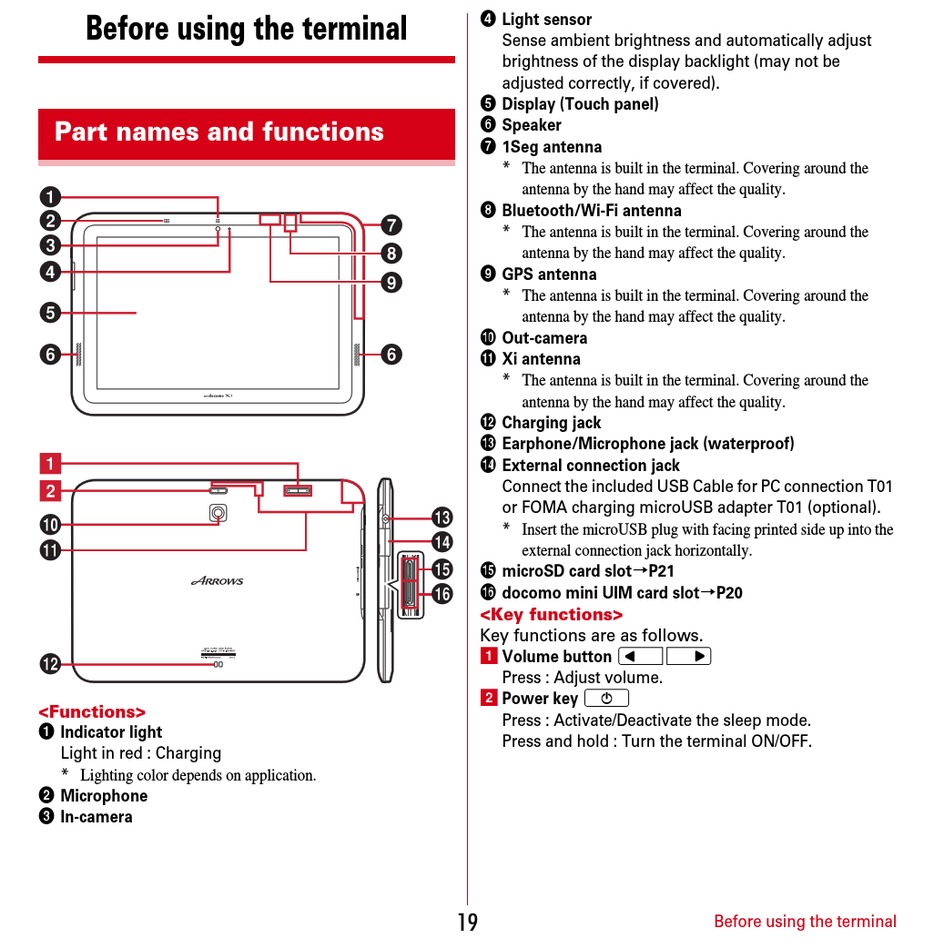

Part names and functions

a
b
c
d
e
f
a
b
j
k
l
<Functions>
a Indicator light
Light in red : Charging
* Lighting color depends on application.
b Microphone
c In-camera
d Light sensor
Sense ambient brightness and automatically adjust
brightness of the display backlight (may not be
adjusted correctly, if covered).
e Display (Touch panel)
f Speaker
g 1Seg antenna
* The antenna is built in the terminal. Covering around the
antenna by the hand may affect the quality.
h Bluetooth/Wi-Fi antenna
g
* The antenna is built in the terminal. Covering around the
h
antenna by the hand may affect the quality.
i GPS antenna
i
* The antenna is built in the terminal. Covering around the
antenna by the hand may affect the quality.
j Out-camera
f
k Xi antenna
* The antenna is built in the terminal. Covering around the
antenna by the hand may affect the quality.
l Charging jack
m Earphone/Microphone jack (waterproof)
n External connection jack
Connect the included USB Cable for PC connection T01
or FOMA charging microUSB adapter T01 (optional).
m
* Insert the microUSB plug with facing printed side up into the
n
external connection jack horizontally.
o
o microSD card slot→P21
p p docomo mini UIM card slot→P20
<Key functions>
Key functions are as follows.
a Volume button ty
Press : Adjust volume.
b Power key X
Press : Activate/Deactivate the sleep mode.
Press and hold : Turn the terminal ON/OFF.
19
Before using the terminal
