Reassembly

1. Lubricate helix threads and drive end cap bush-
ing with SAE 10W oil.
2. Install components onto armature shaft
d
g
a - Washer
b - Helix Threads
c - Armature Shaft
d - Drive End Cap
e - Drive Assembly
f - Spring
g - Spacer
3. Install locknut
.
a
4. Construct a brush retainer tool as shown.
90-852572R1 JANUARY 1998
.
a
b
c
e
f
11658
51711

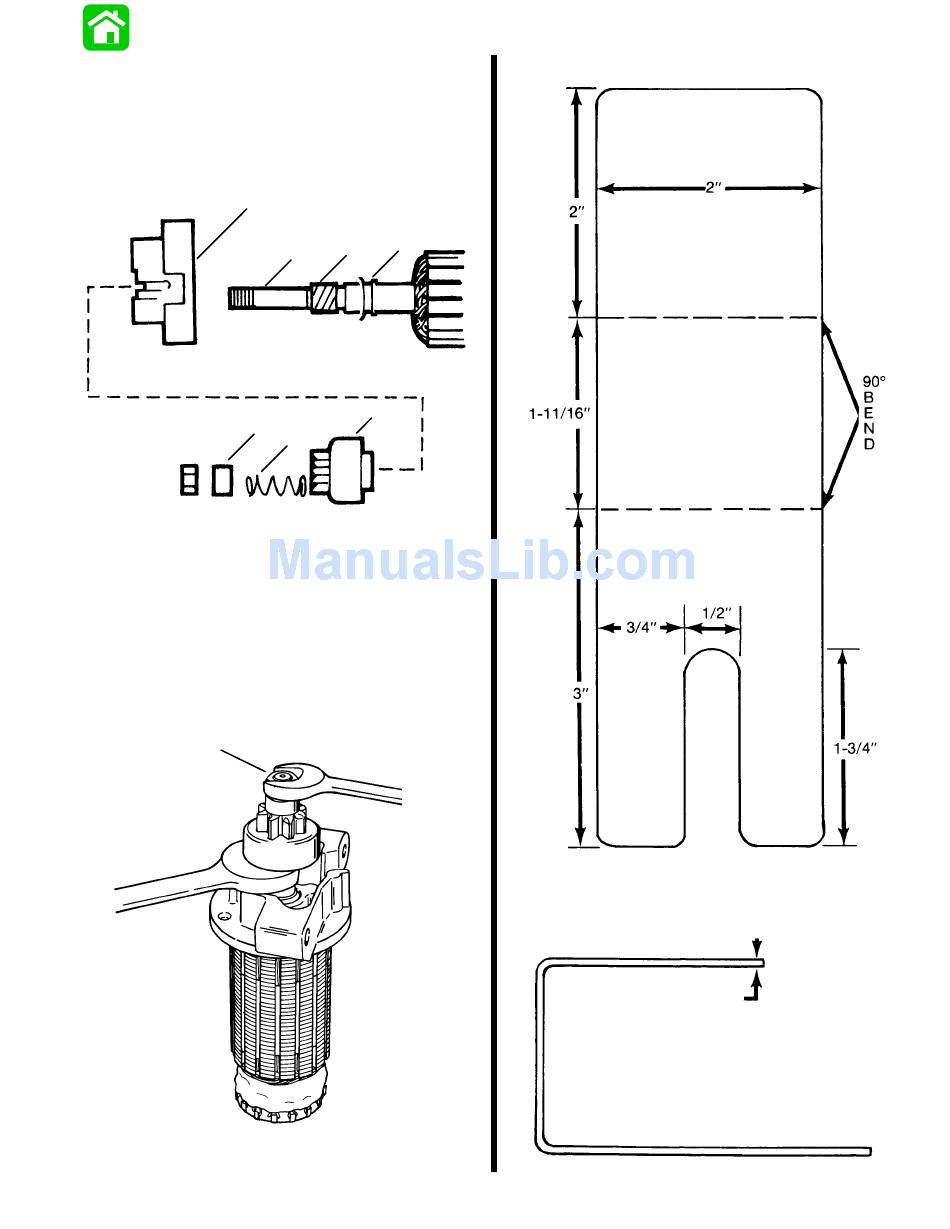

Brush Retainer Tool Layout (Full Size)
Brush Retainer Tool Side View (Full Size)
18-Gauge Sheet Metal
METRIC
SCALE
3" = 76.2mm
2" = 50.8mm
1-3/4" = 44.5mm
1-11/16"
= 42.9mm
3/4" = 19.1mm
1/2"
= 12.7mm
ELECTRICAL - 2B-19
