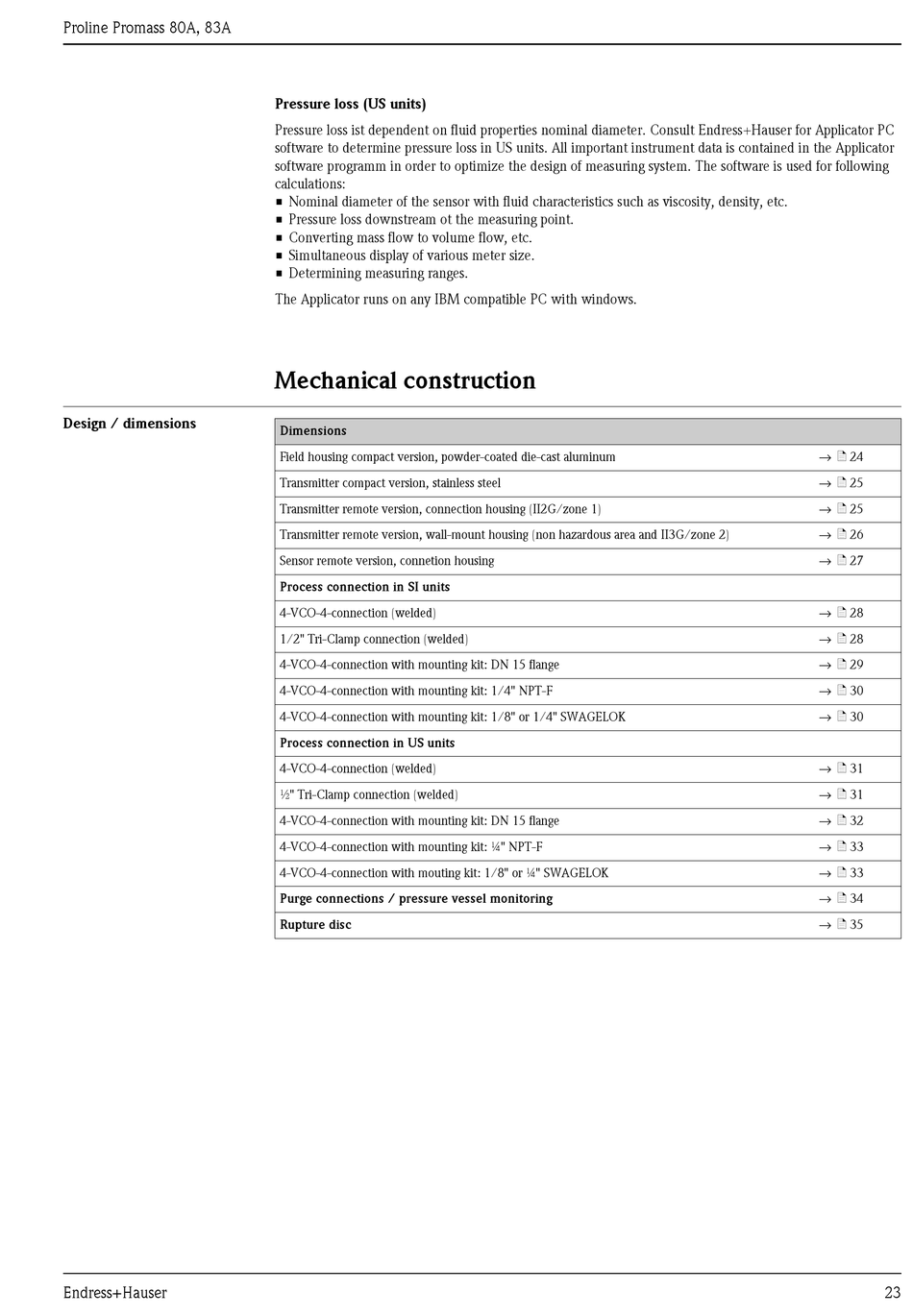

Proline Promass 80A, 83A

Design / dimensions

Endress+Hauser
Pressure loss (US units)
Pressure loss ist dependent on fluid properties nominal diameter. Consult Endress+Hauser for Applicator PC
software to determine pressure loss in US units. All important instrument data is contained in the Applicator
software programm in order to optimize the design of measuring system. The software is used for following
calculations:
• Nominal diameter of the sensor with fluid characteristics such as viscosity, density, etc.
• Pressure loss downstream ot the measuring point.
• Converting mass flow to volume flow, etc.
• Simultaneous display of various meter size.
• Determining measuring ranges.
The Applicator runs on any IBM compatible PC with windows.

Mechanical construction

Dimensions
Field housing compact version, powder-coated die-cast aluminum
Transmitter compact version, stainless steel
Transmitter remote version, connection housing (II2G/zone 1)
Transmitter remote version, wall-mount housing (non hazardous area and II3G/zone 2)
Sensor remote version, connetion housing
Process connection in SI units
4-VCO-4-connection (welded)
1/2" Tri-Clamp connection (welded)
4-VCO-4-connection with mounting kit: DN 15 flange
4-VCO-4-connection with mounting kit: 1/4" NPT-F
4-VCO-4-connection with mounting kit: 1/8" or 1/4" SWAGELOK
Process connection in US units
4-VCO-4-connection (welded)
½" Tri-Clamp connection (welded)
4-VCO-4-connection with mounting kit: DN 15 flange
4-VCO-4-connection with mounting kit: ¼" NPT-F
4-VCO-4-connection with mouting kit: 1/8" or ¼" SWAGELOK
Purge connections / pressure vessel monitoring
Rupture disc
→ ä 24
→ ä 25
→ ä 25
→ ä 26
→ ä 27
→ ä 28
→ ä 28
→ ä 29
→ ä 30
→ ä 30
→ ä 31
→ ä 31
→ ä 32
→ ä 33
→ ä 33
→ ä 34
→ ä 35
23
