Measuring System - Endress+Hauser Proline Promass 80A Technical Information

Measuring system

4
The measuring system consists of a transmitter and a sensor. Two versions are available:
• Compact version: transmitter and sensor form a mechanical unit.
• Remote version: transmitter and sensor are mounted physically separate from one another.

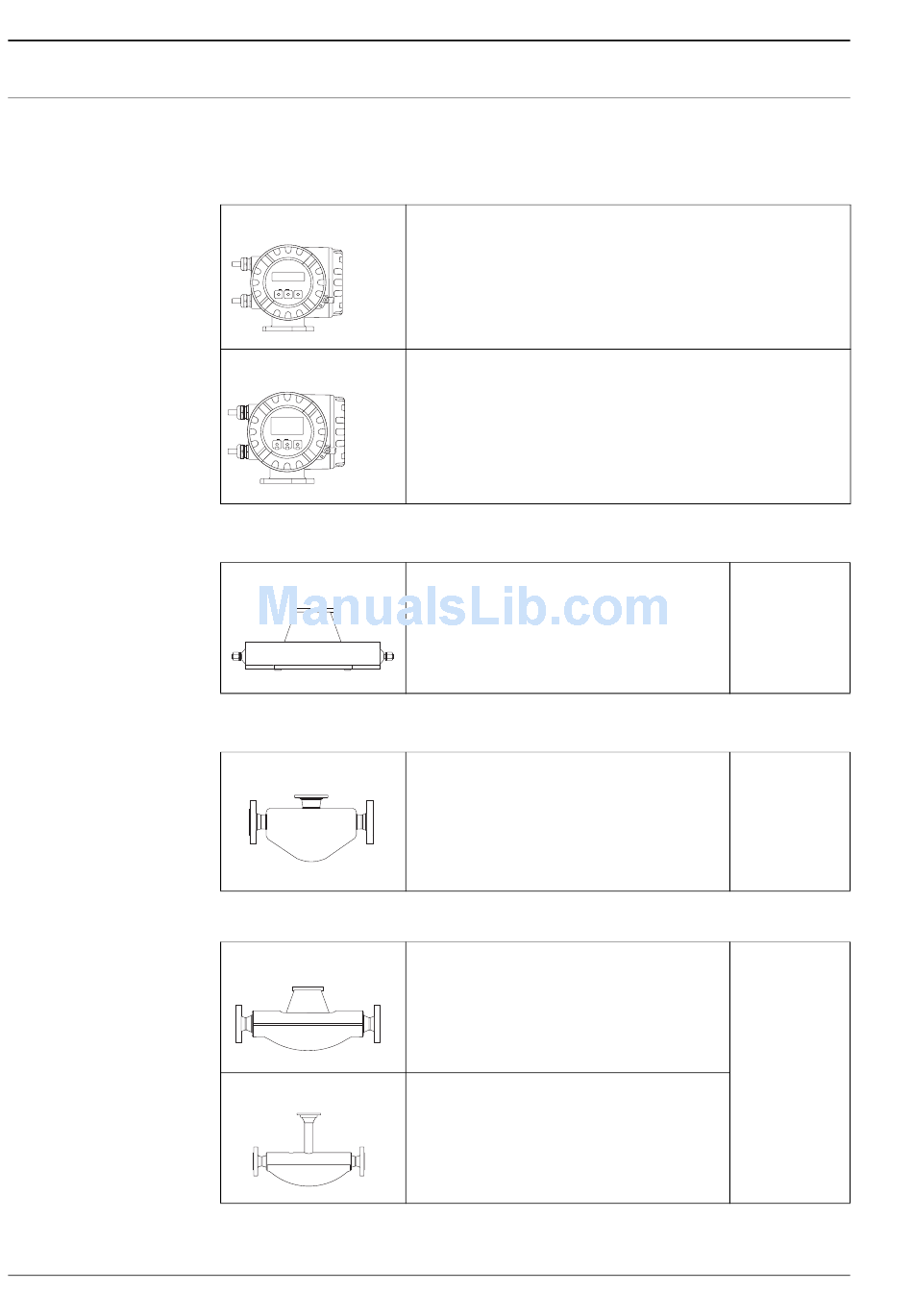

Transmitter
Promass 80
Esc
- +
E
a0003671
Promass 83
Esc
–
+ E
a0003672
Sensor
A
a0003679
Other sensors can be found in the separate documentation
E
a0002271
F
a0003673
F (High-temperature)
a0003675
• Two-line liquid-crystal display
• Configuration also using key operation
• Four-line liquid-crystal display
• Operation with "Touch control"
• Application-specific Quick Setup
• Mass flow, volume flow, density and temperature measurement as well as
calculated variables (e.g. fluid concentrations)
• Single-tube system for highly accurate measurement of
very small flows
• Nominal diameters DN 1 to 4 (1/24" to 1/8")
• Material: Stainless steel EN 1.4539/ASTM 904L,
EN 1.4404/ASTM 316L (process connection),
Alloy C-22 DIN 2.4602
• General purpose sensor, ideal replacement for volumetric
flowmeters.
• Nominal diameters DN DN 8 to 50 (3/8" to 2")
• Material: Stainless steel EN 1.4539/ASTM 904L,
EN 1.4404/ASTM 316L
• Universal sensor for fluid temperatures
up to +200 °C (+392 °F).
• Nominal diameters DN 8 to 250 (3/8" to 10").
• Material: Stainless steel EN 1.4539/ASTM 904L,
EN 1.4404/ASTM 316L, Alloy C-22 DIN 2.4602
• Universal high-temperature sensor for fluid temperatures
up to +350 °C (+662 °F).
• Nominal diameters DN 25, 50, 80 (1", 2", 3")
• Material: Alloy C-22, DIN 2.4602,
EN 1.4404/ASTM 316L
Proline Promass 80A, 83A
Documentation
No. TI054D
Documentation No.
TI061D
Documentation No.
TI101D
