Dimensions and Weights

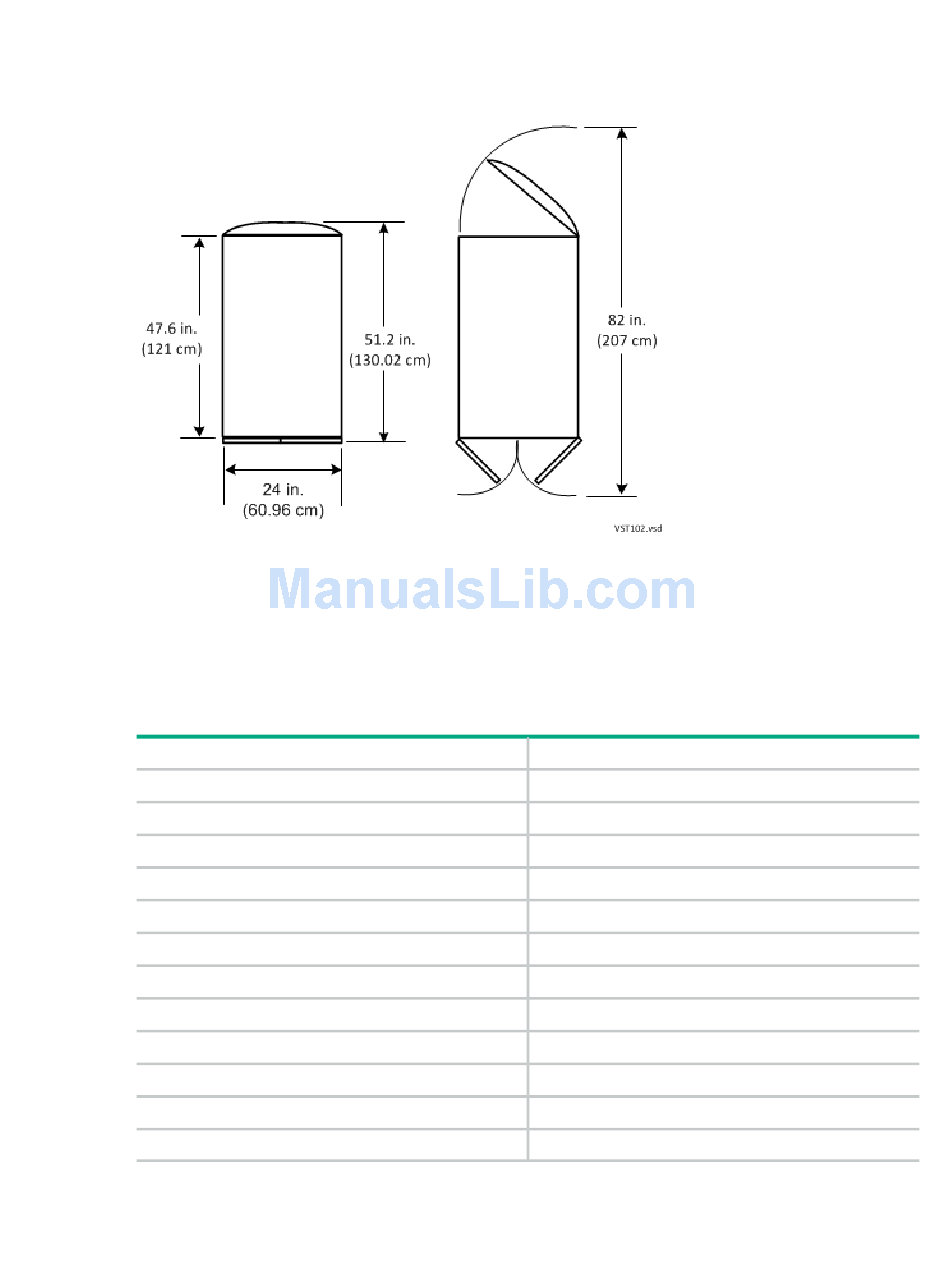

Plan View of the Racks

Service Clearances for the Racks

Aisles: 6 feet (182.9 centimeters)
Front: 3 feet (91.4 centimeters)
Rear: 3 feet (91.4 centimeters)

Unit Sizes

Enclosure Type
Blade element
VIO enclosure
SAS Disk Enclosure
Storage CLIM
IP CLIM
Telco CLIM
Maintenance switch (Ethernet)
RJ45 patch panel
R5000 UPS (for single-phase power)
R12000/3 UPS (for three-phase power)
Extended runtime module (ERM)
Rack-mount system console, keyboard, and display
Height (U)
2
4
2
2
2
2
1
1
3
6
3
2
Dimensions and Weights 49
