HP Integrity NonStop i NS2300 Planning Manual page 14

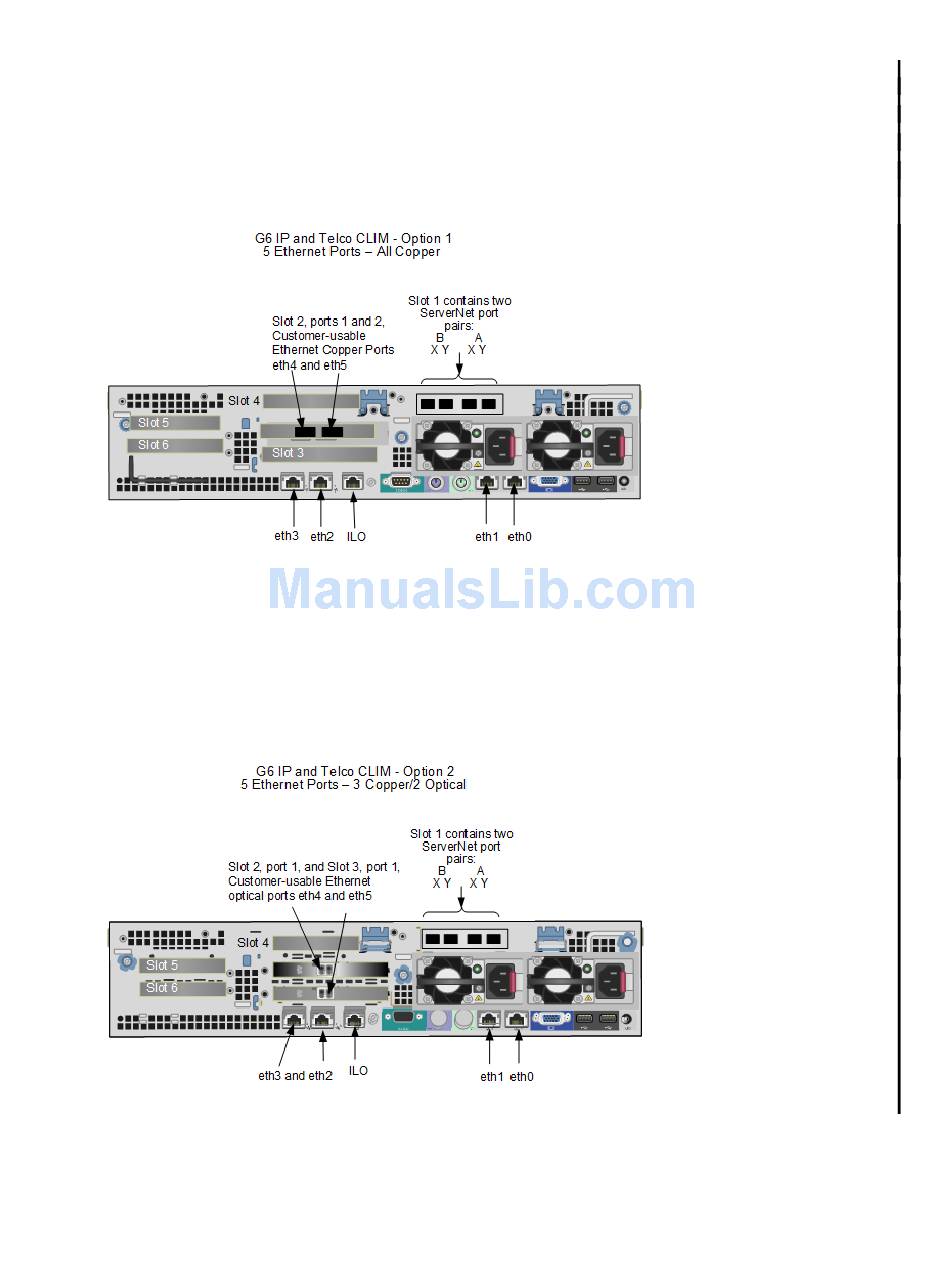

G6 IP and Telco CLIM Option 1 — Five Ethernet Copper Ports
Interface
Slot 1
Slot 2
Eth1, eth2, eth3 Three 1GbE copper ports for customer data
Interface
Slot 1
Slot 2 and Slot 3
Slot 4 and Slot 5
Eth1, eth2, eth3 Three copper ports for customer data
14 NS2300 System Overview
Characteristics of NonStop i 5C IP and Telco CLIMs (G6)
ServerNet PCIe interface card provides the ServerNet fabric connections
2-port 1GbE copper NIC for customer interfaces
Eth0 is reserved and provides maintenance support
Characteristics of NonStop i 3C/2F IP and Telco CLIMs (G6)
ServerNet PCIe interface card provides the ServerNet fabric connections
1-port 1GbE optical NIC
Not used
Eth0 is reserved and provides maintenance support
