HBA in Slot
1
2
3
4

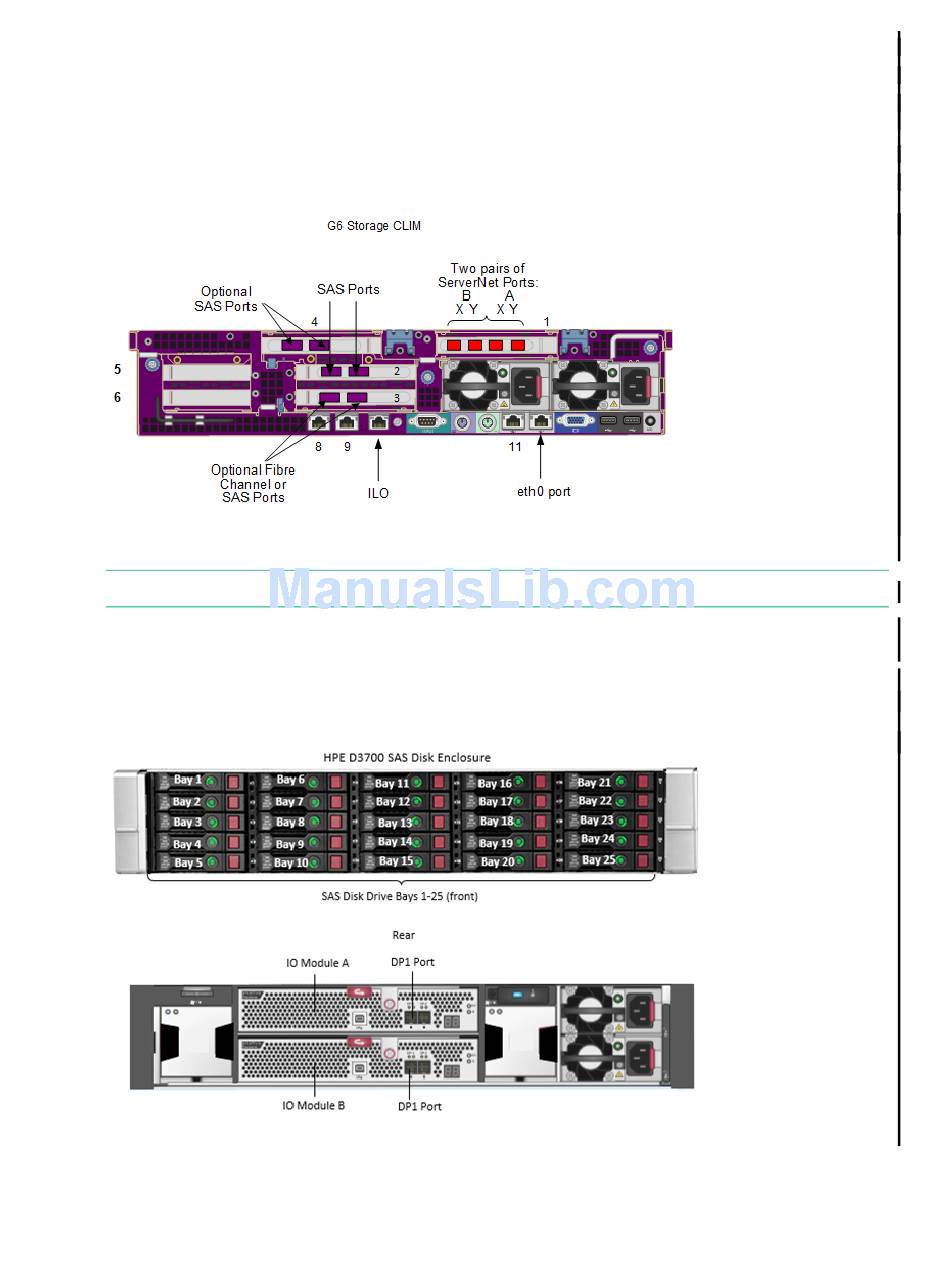

SAS Disk Enclosure

NOTE: Solid state drives are supported as of J06.13.
The SAS disk enclosure provides the storage capacity for the Storage CLIM and supports SAS
HDDs and SAS SSDs.
The D3700 SAS disk enclosure is supported by the Gen9 Storage CLIM. This enclosure holds
25 2.5" SAS Smart Carrier HDDs and SSDs with redundant power and cooling.
16 NS2300 System Overview
Characteristics of NonStop i Storage CLIMs (G6)
HBA (part of base configuration) provides the ServerNet fabric connections
SAS HBA with two 6 Gbps SAS ports or
FC HBA with two 8 Gbps FC ports (must be ordered)
Optional order of SAS or FC HBA
Optional order of FC ports
