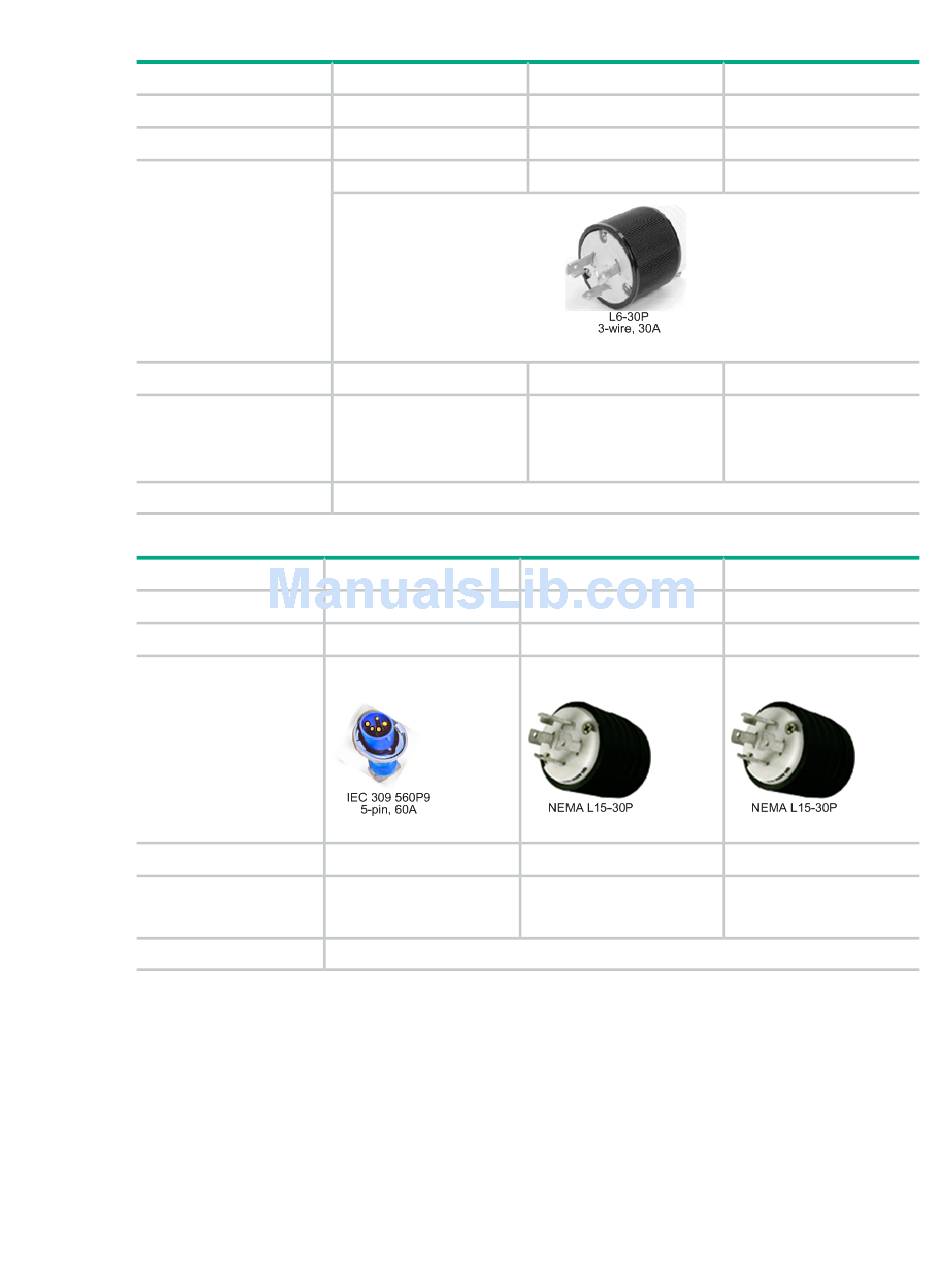

North America/Japan Single-Phase Power Specifications; North America/Japan Three-Phase Power Specifications - HP Integrity NonStop i NS2300 Planning Manual

Table 1 North America/Japan Single-Phase Power Specifications
Output Load
Input Voltage
Input Connector
Output Voltage
Output Connectors
Notes
Table 2 North America/Japan Three-Phase Power Specifications
Output Load
Input Voltage
Input Connector
Output Voltage
Output Connectors
Notes
R5000 1-phase UPS
4500 W
200 – 208 V
NEMA L6-30P
200 – 208 V
1 x L6-30R
4 x C19
4 x C13
UPS outputs are connected to the compatible PDU inputs.
R12000 3-phase UPS
12 kW
208V 3P Wye
IEC309 560P9
208V 3P Delta
2 x NEMA L15-30R
UPS outputs are connected to the compatible PDU inputs.
iPDU 1-phase
24 A
200 – 208 V
NEMA L6-30P
N/A
6 x C19
(20 x C13)
iPDU 3-phase
24 A
208V 3P Delta
NEMA L15-30P
N/A
6 x C19
(20 x C13)
AC Input Power for NS2300 Systems
Modular PDU 1-phase
24 A
200 – 240 V
NEMA L6-30P
N/A
4 x C19
(28 x C13)
Modular PDU 3-phase
24 A
208V 3P Delta
NEMA L15-30P
N/A
6 x C19
(42 x C13)
