Port A in slot 6b is reserved for OSM.

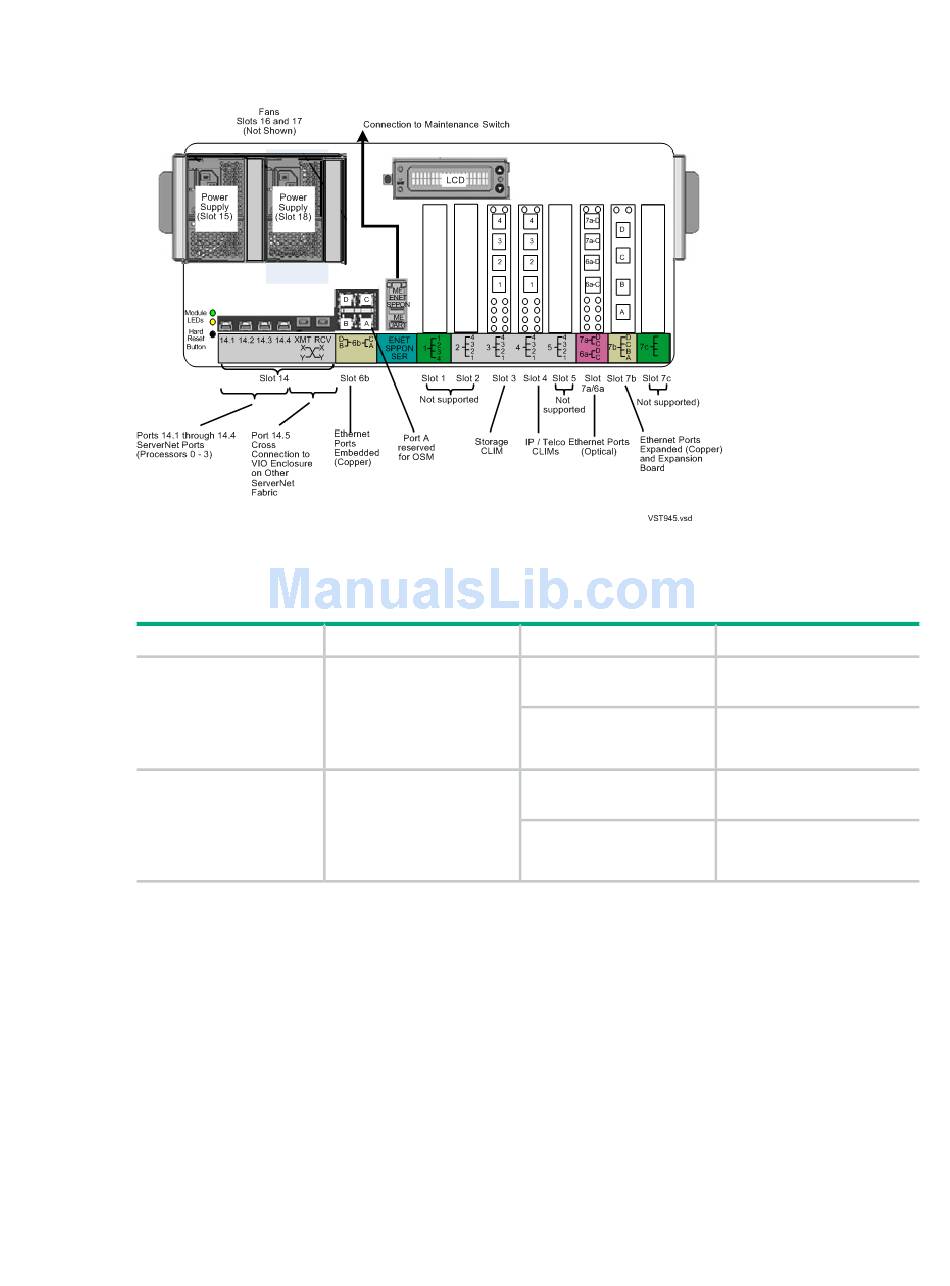

Figure 2 VIO Enclosure Slot Locations, NS2300 System

CLIM Connection Group-Module-Slot-Port Numbering

This table lists the default numbering for VIO connections to a CLIM:
CLIM Group
100
100
Module
2
3
Component Location and Identification in a NS2300 System
VIO Slot
3 (Storage CLIM)
4 (IP CLIM)
4 (Telco CLIM)
3 (Storage CLIM)
4 (IP CLIM)
4 (Telco CLIM)
PIC Port Numbers
1 and 3 for 2 Storage CLIMs,
1 - 4 for 4 Storage CLIMs
1-2
1 and 3 for 2 Storage CLIMs,
1 - 4 for 4 Storage CLIMs
1-2
