Installing The Server Blade Into The Enclosure - HPE BL860c i2 Getting Started Manual

Server blade signal
Mezzanine 3
For detailed port mapping information, see the BladeSystem enclosure installation
poster or the BladeSystem enclosure setup and installation guide for your product on
the Hewlett Packard Enterprise website
documentation).

Installing the server blade into the enclosure

NOTE: When installing additional blades into an enclosure, additional power supplies
might also be needed to meet power requirements. For more information, see the
BladeSystem enclosure setup and installation guide for your product on the Hewlett
Packard Enterprise website (http://www.hpe.com/info/bladesystem/documentation).
NOTE: Before installing and initializing the server blade, install any server blade
options, such as an additional processor, hard drive, or mezzanine card.

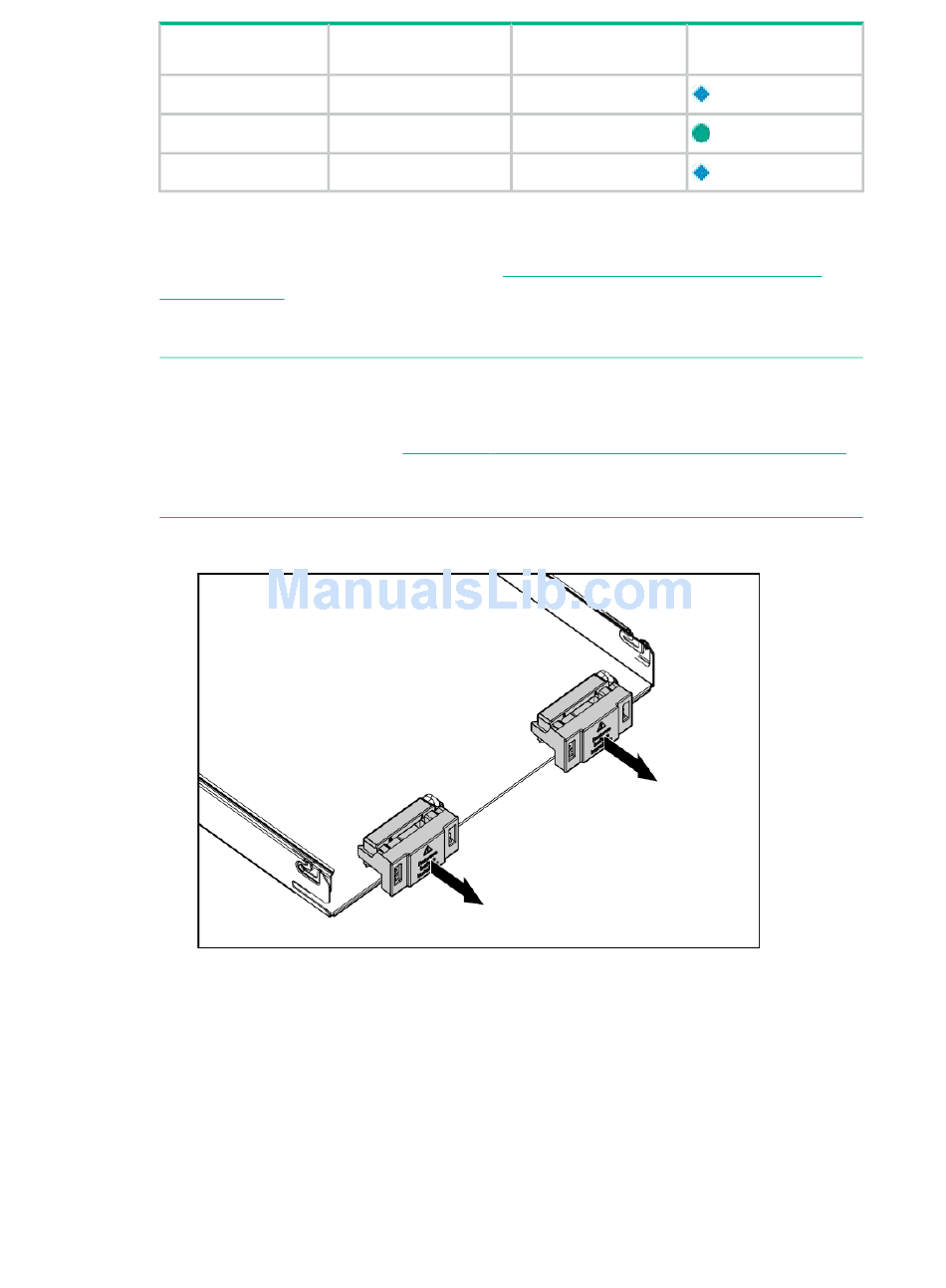

1. Remove the connector covers if they are present.
2. Prepare the server blade for installation.
c7000 interconnect bay
7 and 8
5 and 6
7 and 8
(http://www.hpe.com/info/bladesystem/
c3000 interconnect Interconnect bay
bay labels
3 and 4
3 and 4
3 and 4
18
