HPE BladeSystem c3000 Enclosure

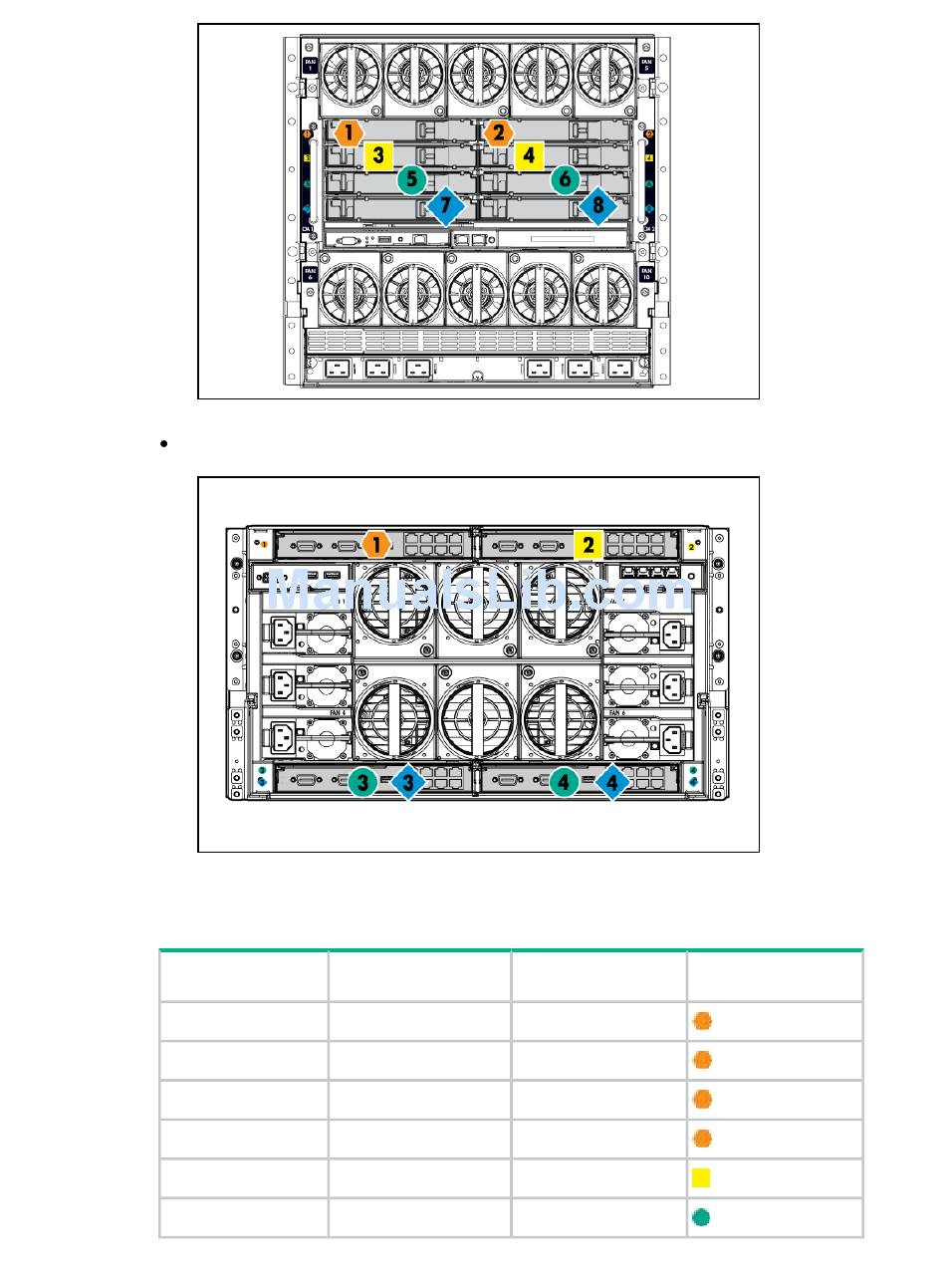

To support network connections for specific signals, install an interconnect module
in the bay corresponding to the embedded NIC or mezzanine signals.
Server blade signal c7000 interconnect bay
NIC 1 (Embedded) 1
NIC 2 (Embedded) 2
NIC 3 (Embedded) 1
NIC 4 (Embedded) 2
Mezzanine 1 3 and 4
Mezzanine 2 5 and 6
c3000 interconnect Interconnect bay
bay labels
1
1
1
1
2
3 and 4
