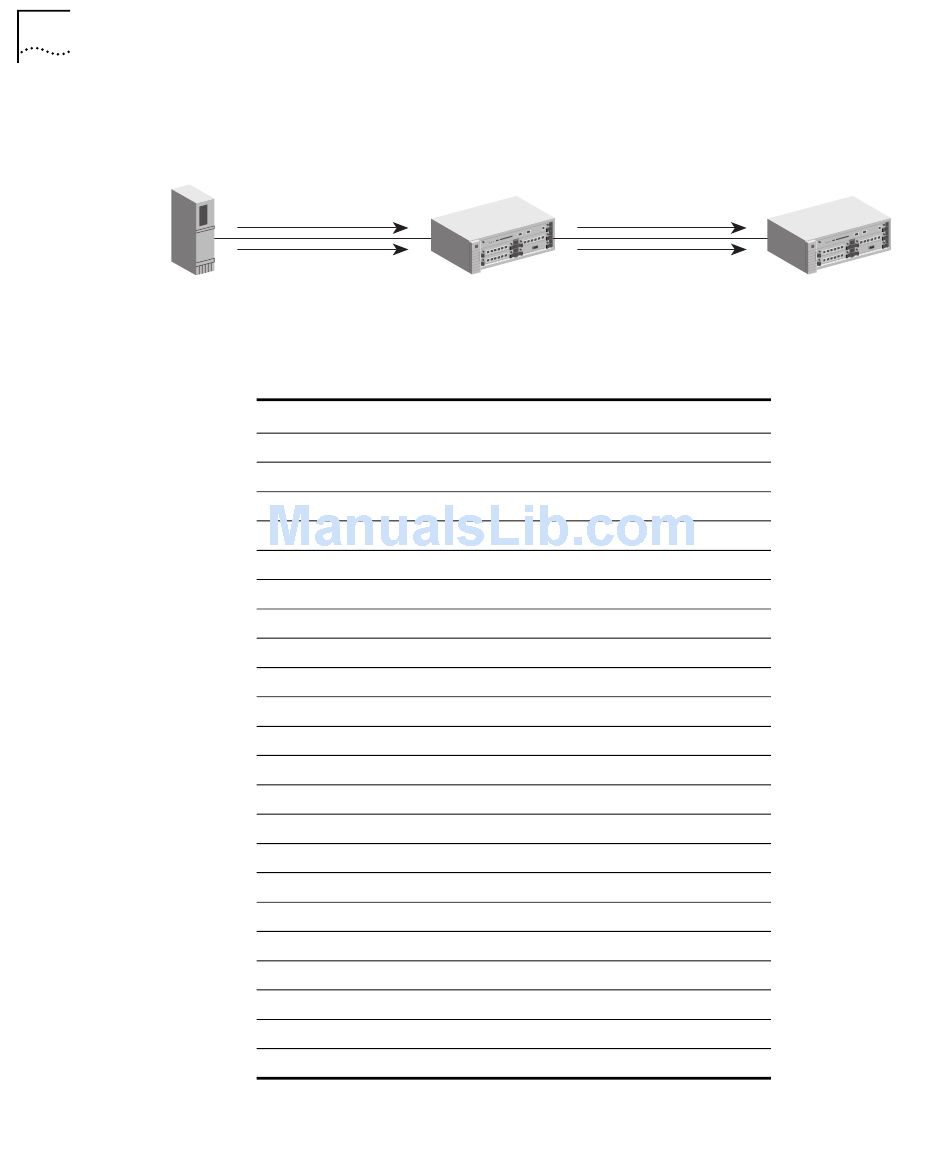

Figure 92 QoS Excess Tagging
Conforming (1 MByte)
Excess (500 KBytes)
Classifier definition for QoS Excess Tagging:
Classifier Field
Classifier Number
Classifier Name
Cast Type
IP protocol type
Source IP address
Source IP address mask
Destination IP address
Destination IP address mask
UDP source port range (start)
UDP source port range (end)
UDP destination port range (start)
UDP destination port range (end)
Add another filter (address/port pattern)? y
Source IP address
Source IP address mask
Destination IP address
Destination IP address mask
UDP source port range (start)
UDP source port range (end)
UDP destination port range (start)
UDP destination port range (end)
Add another filter (address/port pattern)? n
Conforming
Excess with tag of 2
Upstream
system
Classifier Definition
25
VideoServer1
multicast
UDP
169.10.20.30
255.255.255.255
0.0.0.0
0.0.0.0
0
65535
2010
2020
169.10.20.30
255.255.255.255
0.0.0.0
0.0.0.0
2010
2020
0
65535
Downstream
system
