Technical Specifications - Altronix eBridge4PCRM Installation Manual

Parameter Description
Connections BNC for Coax link. RJ45 for ethernet link.
Input power
Midspan or endspan port connected.
requirements
Blue: Coax Link.
Yellow (RJ45 connector): On - Link, Off - No Link, Blinking - Activity.
Indicators
Green (RJ45 connector): On - 100Base-TX, Off - 10Base-T.
Green: Power.
Operating Ambient Temperature: UL60950-1
eBridge4PCRM: -- 4ºF to 120.2ºF (-- 20ºC to +49ºC).
Environmental eBridge1PCTX: --- 4ºF to 120.2ºF (-- 20ºC to +49ºC).
Conditions Relative humidity: 20 to 85%, non-condensing.
Storage Temperature: -- 22º to 158ºF (-- 30º to +70ºC).
Operating Altitude: --1000 to 6,561.679 ft. (- - 304.8 to 2000m).
Regulatory UL/CUL Listed for Information Technology Equipment (UL 60950-1).
Compliance CE approved. C-Tick compliant.
Weights (approx.) Product: 1.35 lbs. (0.61 kg) Shipping: 1.7 lbs. (0.77 kg)
Maximum Length of Coax Type vs. Camera Power/PoE Class:
Camera
Power/ RG59/U - 23AWG RG59/U - 22AWG RG59/U - 20AWG RG59/U - 18AWG
PoE Class
13W/0 260.6
4W/1 500
6.5W/2 500
13W/3 260.6
19W 152.4
25W 118.9

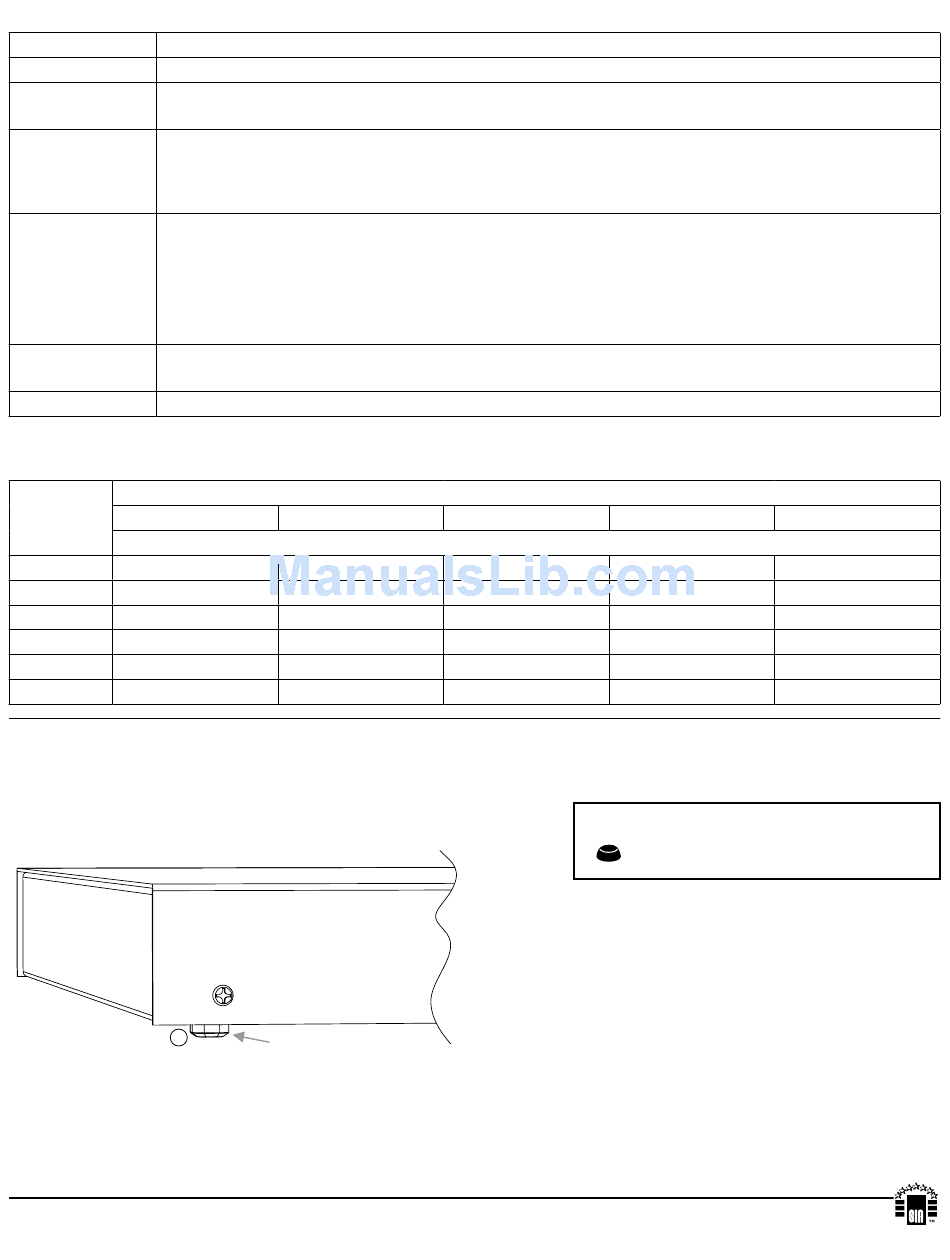

1 - Position and affix rubber pads (C) (included) at each corner on the bottom of the unit (Fig. 4).
2 - Place unit in desired location.
Fig. 4
C
Altronix is not responsible for any typographical errors.
140 58th Street, Brooklyn, New York 11220 USA, 718-567-8181, fax: 718-567-9056
website: www.altronix.com, e-mail: info@altronix.com, Lifetime Warranty, Made in U.S.A.
IIeBridge4PCRM
- 4 -

Technical Specifications:

Max. Length (meters)
335.3
500
500
335.3
198.1
150.6
Shelf Installation
Left Side
Rubber Pad
Coax Type
500
500
500
500
315.5
239.3
A
B
Mounting Hardware
Four (4) rubber pads.
C
H01N
RG6/U - 18AWG
500 500
500 500
500 500
500 500
500 500
500 365.8
(Included):
MEMBER
eBridge4PCRM
