Altronix Pace1PRMT Installation Manual

Pace1PRMT
IP and PoE+ Over Extended Distance UTP or CAT5e

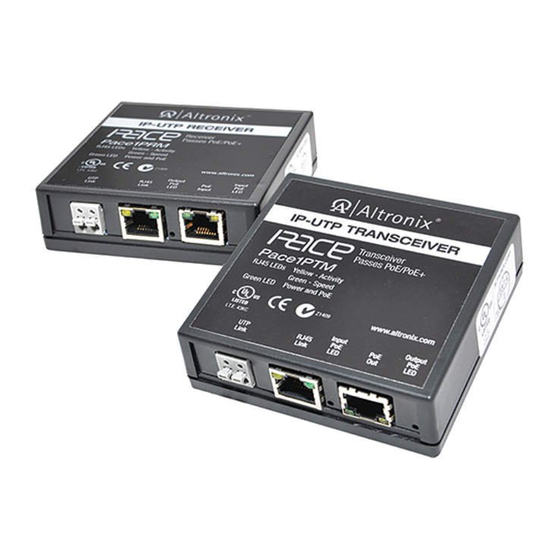

Pace1PRM Receiver and Pace1PTM Transceiver Kit
Pace1PRMT is a long range Ethernet adapter kit that transmits data at 100Mbps full duplex and
power via a single twisted pair (UTP) or CAT5e or higher cable in a PoE(+) compliant format.
The Pace1PRM receiver is powered via a PoE midspan, such as the Altronix Netway series, or
by an endspan. The receiver passes the PoE(+) compliant power over the cable to the Pace1PTM
transceiver which, in turn, passes this power to an enabled IP camera/device. These plug and play
units facilitate cost-effective solutions for IP devices that need to be installed at distances greater
than 100m. They also provide a simple way to replace legacy analog products with new IP devices
over single twisted pair (UTP) or structured cable.
Agency Listings:
• UL/cUL Listed for Information
Technology Equipment (UL 60950-1).
• CE European Conformity.
• C-Tick compliant.
Input (Pace1PRM):
• Powered by midspan or endspan.
PoE compliant to IEEE 802.3af (15W) and
PoE+ compliant to IEEE 802.3at (30W).
Ethernet:
• Connectivity: RJ45, auto-crossover.
• Wire type: 4-pair CAT5 or 1 pair UTP
structured cable.
• Distance: up to 500m.
• Speed: 10/100BaseT, half/full duplex, auto
negotiation. PoE compliant to IEEE 802.3af
(15W) and PoE+ compliant to IEEE 802.3at
(30W) delivered to camera by Pace1PTM.
Power provided by Pace1PRM to Pace1PTM
by PoE protocol.*
• Throughput is rated to pass 100Mbps of
data at distances up to 500m with
proper headend equipment, this supports
Megapixel, HD720, HD1080.
CAT5e or Higher:
• Distance: up to 500m @ 100Mbps
(see Maximum Length of Cable Type vs.
Camera Power/PoE Class, pg. 4).
UTP (Single Pair):
• Distance: up to
153m
(see Max. Length of Cable Type vs.
Camera Power/PoE Class, pg. 4).
* See note on page 3.
Overview:
Features:
@ 100Mbps
Installation Guide
I.T.E. 43KC
LED Indicators:
• Pace1PRM/Pace1PTM:
Green - PoE ON (by respective RJ45 jack).
• Pace1PRM and Pace1PTM (RJ45 jack):
Yellow and Green LED IP Link status,
10/100Base-T/active.
Environmental:
• Operating and Storage Temperature:
(refer to Technical Specifications
chart pg. 2).
• Humidity: 20 to 85%, non-condensing.
Functions:
• Auto detection and protection of legacy
non-PoE cameras/devices.
Applications:
• Extend Network link distance in an
industrial environment over 700m
(see note, pg. 2).
• Retrofit digital IP cameras in an analog
CCTV CAT5e wired installations.
• Works with Megapixel, HD720, HD1080
and VGA (SD) cameras (see note, pg. 3).
Mechanical:
• Dimensions (W x L x H approx.):
Pace1PRM/Pace1PTM:
3.5" x 3.5" x 1"
(88.9mm x 88.9mm x 25.4mm).
Rev. 111413
Z1409
