- Page 1 IP and PoE+ over Coax Solution PLUS Installation Guide Models Include: eBridge8PCRM - Eight (8) Channel Receiver eBridge16PCRM - Sixteen (16) Channel Receiver Z1409 I.T.E. 43KC More than just power.™ Rev. 072412...

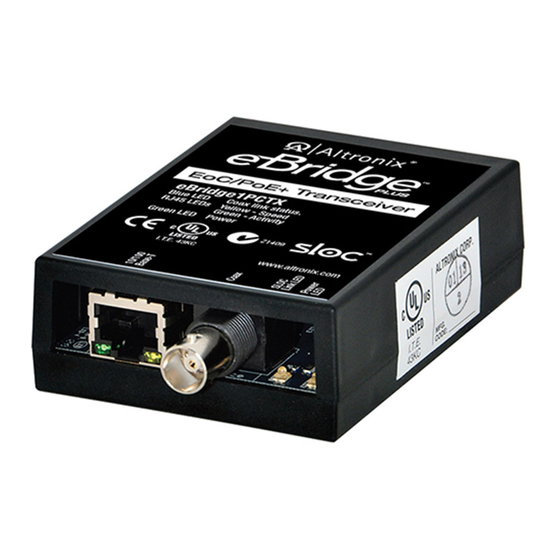

- Page 2 Overview: eBridge8PCRM/16PCRM and eBridge1PCTX or eBridge1ST are CAT5 to Coax cable Ethernet adapters/Media converters that deliver data and power over the coax cable in a PoE+ compliant format. The paired set enables fast 10/100Base-T Ethernet digital communication to be transmitted over Coax cable. eBridge8PCRM/16PCRM receiver is powered by a UL Listed limited power source, PoE midspan or endspan product, such as a NetWay8M and NetWay16M, and sends its power over the coax to the eBridge1PCTX or eBridge1ST transmitter under PoE protocol.
-
Page 3: Installation Instructions
Installation Instructions: Wiring methods shall be in accordance with the National Electrical Code/NFPA 70/ANSI, and with all local codes and authorities having jurisdiction. Wiring should be UL Listed and/or Recognized wire suitable for the application. eBridge8PCRM/16PCRM is not intended to be connected to outside plant leads and should be installed indoors within the protected premises. - Page 4 Fig. 1 eBridge8PCRM Coax Cable from eBridge1PCT or eBridge1PCTX Data In Data In eBridge8PCRM (rear) 10/100 10/100 Base-T Base-T eBridge8PCRM (front) Structured Cable from midspan/endspan Fig. 1a eBridge16PCRM Coax Cable from eBridge1PCT or eBridge1PCTX Data In Data In Data In Data In eBridge16PCRM (rear)
- Page 5 Multiple PoE Camera Connection: eBridge8PCRM shown. eBridge16PCRM is similar, with twice as many channels. Fig. 3 Transceiver PoE compliant PoC (PoE+ over Coax) 100m max. 457m max. PoE Camera PoE compliant PoC (PoE+ over Coax) Transceiver 100m max. 457m max. PoE Camera PoE compliant Transceiver...
-
Page 6: Technical Specifications
Technical Specifications: Parameter Description Connections BNC for Coax link. RJ45 for ethernet link. Input power Midspan or endspan port connected. requirements Blue: Coax Link. Yellow (RJ45 connector): On - Link, Off - No Link, Blinking - Activity. Indicators Green (RJ45 connector): On - 100Base-TX, Off - 10Base-T. Green: Power. -
Page 7: Rack Mount Installation
Mounting Options: Rack Mount Installation 1- Remove and discard factory installed screws from both sides of rack chassis (Fig. 4a). 2- Install mounting brackets (A) on the left and right side of rack chassis using the four (4) flat head screws (B) (included) (Fig. 4b). 3- Place unit into desired EIA 19”... -
Page 8: Enclosure Dimensions
Data In Data In 42mm Altronix is not responsible for any typographical errors. 140 58th Street, Brooklyn, New York 11220 USA, 718-567-8181, fax: 718-567-9056 website: www.altronix.com, e-mail: info@altronix.com. Lifetime Warranty, Made in U.S.A. MEMBER IIeBridge8PCRM/16PCRM K218P - 8 - eBridge8PCRM/16PCRM...
