Altronix eBridge100STR Installation Manual

eBridge100STR
eBridge100RM
eBridge100ST

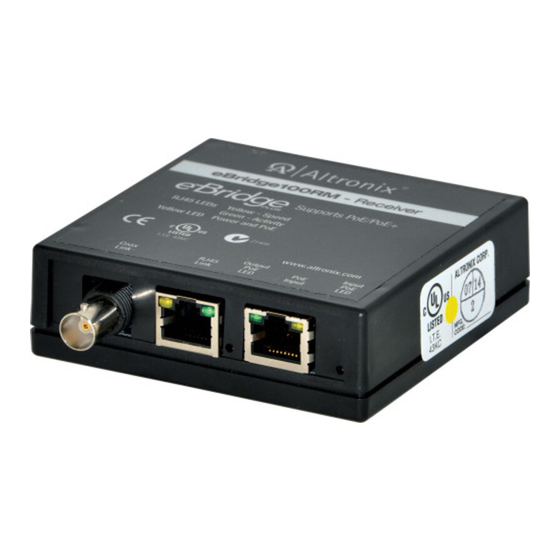

eBridge100STR is a versatile solution Ethernet adapter/media converter kit which transmits data at
100Mbps full duplex and power over Coax cable in a PoE+ compliant format. The eBridge100RM
is powered via a PoE midspan, such as the Altronix Netway series, or by an endspan. The receiver
passes the PoE(+) compliant power over cable to the eBridge100ST transceiver which in turn
passes this power to an enabled IP Camera/device. These plug and play units facilitate cost effec-
tive solutions for IP devices that need to be installed at distances greater than 100m. They provide
a simple way to replace legacy analog products with new IP devices over existing coax.
Agency Listings:
• UL/CUL Listed for Information
Technology Equipment (UL 60950-1).
• CE approved.
Input eBridge100RM:
• Powered by midspan or endspan.
PoE compliant to IEEE 802.3af (15W) and
PoE+ compliant to IEEE 802.3at (30W).
Ethernet:
• Connectivity: RJ45, auto-crossover.
• Wire type: 4-pair CAT5.
• Distance: up to 100m.
• Speed: 10/100BaseT, half/full duplex,
auto negotiation.
PoE compliant to IEEE 802.3af (15W) and
PoE+ compliant to IEEE 802.3at (30W)
Delivered to camera by eBridge100ST.
Power provided by eBridge100RM to
eBridge100ST by PoE protocol.*
Coax Link:
• Distance: Coax 300m (Maximum Length of
Coax Type vs. Camera Power/PoE Class,
pg. 3) for power delivery.
• Throughput is rated to pass 100mbps of
data at distances up to 500m.
• Connectivity: BNC, RG-59/U or similar.
LED Indicators:
• Yellow - PoE ON (by respective RJ45 jack).
• Yellow and Green LED (RJ45) IP Link
status, 10/100Base-T/active.
*See note on the bottom of Page 2.
eBridge100STR
- EoC and PoE/PoE+ Adapter Kit
- EoC and PoE/PoE+ Receiver
- EoC and PoE/PoE+ Hardened Transceiver
Installation Guide
PLUS
Overview:
Features:
Environmental:
• Operating Temperature:
eBridge100RM:
-- 20ºC to 49ºC (-- 4ºF to 120.2ºF).
eBridge100ST:
For 15W: --- 40ºC to 75ºC (--- 40ºF to 167ºF).
For 30W: --- 40ºC to 60ºC (--- 40ºF to 140ºF).
• Storage Temperature:
-- - 40ºC to 75ºC (--- 40ºF to 167ºF).
• Humidity: 20 to 85%, non-condensing.
Functions:
• Auto detection and protection of legacy
non-PoE cameras/devices.
Applications:
• Retrofit digital IP cameras in an analog
CCTV installation.
• Works with Megapixel, HD720, HD1080
and VGA (SD) cameras (see note, pg. 2).
• Extend Network link distance in an
industrial environment over 610m
(see note, pg. 2).
• Upgrade deployed CCTV Coax to a digital
network in Retail, Casinos, Airports,
Schools, Hospitals, etc.
Mechanical:
• Dimensions (W x L x H approx.):
eBridge100RM:
3.5" x 3.5" x 1"
(88.89mm x 88.89mm x 25.4mm).
eBridge100ST:
2.27" x 2.645" x 1.12"
(57.66mm x 67.18mm x 28.44mm).
Rev. 111014
I.T.E. 43KC
- 1 -
