Altronix NetWay3024 Installation Manual

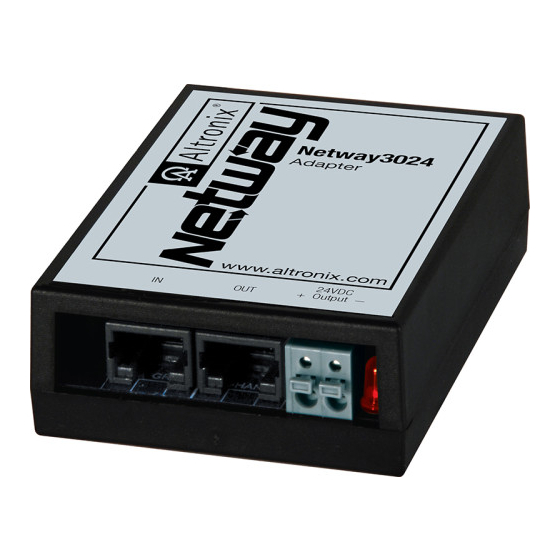

Altronix NetWay3024 adapter converts PoE+ into a 24VDC / 25W output and passes IP data.
For 12VDC @ up to 2A see model NetWay3012.
Agency Listings:
• CE - European Conformity.
Input:
• PoE+ (30W).
Output:
• 24VDC/25W (1A).
PoE:
• PoE+ Mode "A / B" compliant.

Features:

• Power LED indicator.
• Auto detection and protection of legacy
non-PoE cameras/devices.
• Speed: 10/100 Mbps.
• Compact insulated housing.
• Spring terminals.
Wiring methods shall be in accordance with the National Electrical Code/NFPA 70/ANSI, and with all local codes
and authorities having jurisdiction.
1. Mount NetWay3024 in proximity to IP device utilizing mounting hole (Fig. 1, pg. 2).
Use a proper fastener and/or wall anchor when securing NetWay3024 to the wall.
2. Connect structured cable from port marked [PoE IN] on NetWay3024 to port marked [OUT] of PoE Switch or
Midspan (Fig. 1, pg. 2).
3. Connect structured cable from port marked [Data OUT] on NetWay3024 to the IP device (Fig. 1, pg. 2).
4. Connect 24VDC output from NetWay3024 terminals marked [+ 24VDC Output –] to the power input of the IP
device (Fig. 1, pg. 2). Polarity must be observed.
5. Power LED indicator will illuminate on NetWay3024 under normal conditions (Fig. 1, pg. 2).
NetWay3024
Adapter for
Non-PoE Compliant IP Devices
Installation Guide

Overview:

Features:

Installation Instructions:

Physical and Environmental:

• Dimensions (W x L x H approx.):
3.8" x 2.5" x 1" (96.5mm x 63.5mm x 25.4mm).
• Weight (approx.): 0.2 lb. (0.1 kg)
• Temperature:
Operating: 0ºC to 50ºC (32ºF to 122ºF)
Storage: – 40ºC to 70ºC (– 40ºF to 158ºF)
• Relative Humidity: 85% +/– 5%
• Operating Altitude: – 304.8 to 3,048m
