Altronix Pace2KRT Installation Manual

Pace2KRT is a long range Ethernet adapter kit that transmits data and power via UTP (2-wire, twisted
pair) in a PoE(+) compliant format. Pace1KR receiver is powered via a PoE midspan/endspan, such
as the Altronix Netway series. The receiver passes the PoE compliant power over UTP to the Pace2KT
transceiver which, in turn, provides two (2) PoE enabled ports: typically, one port for IP camera/device
and the other to continue Ethernet pair to next Pace2KRT kit or another IP camera/device. These plug
and play, cost-effective solutions facilitate IP devices that need to be installed at greater distances such
as in elevator shafts, tunnels, bridges, HVAC, etc. supporting deployments over 1000m. Multipoint SPE
configuration also offers a convenient solution to upgrade legacy 2-wire bus networks; LON Protocol,
RS485 to Ethernet Device based networks.
Input (Pace1KR Receiver):
• Powered by midspan or endspan.
PoE compliant to IEEE 802.3af (15W) and
PoE+ compliant to IEEE 802.3at (30W).
UTP Connection:
• Wire type: 2-wire
(UTP, up to 16/2 twisted AWG).
• Speed: 10Mbps
• Distance: + 1000m
(see Maximum Length of Cable & Type vs.
Total Power Consumption, pg.4)
Ethernet Connection:
• Connectivity: RJ45, auto-crossover.
• Wire type: 4-pair CAT5e or higher.
• Distance: up to 100m from midspan to
Pace1KR receiver (headend),
100m from Pace2KT transceiver to device
• Speed: 10/100BaseT, half/full duplex, auto
negotiation. PoE compliant to IEEE 802.3af
(15W) and PoE+ compliant to IEEE 802.3at
(30W) delivered to device by Pace1KR.
Power provided by Pace1KR to Pace2KT
by PoE protocol (See note on Page 4).

LED Indicators:

• Pace1KR and Pace2KT:
Link LED: Green, PoE Active
(left of UTP link)
Link LED: Green, Active Indicate
Data transmission (Next to Ethernet link)
• Pace1KR and Pace2KT: (RJ45 jack(s)):
Yellow and Green LED IP Link status,
10/100Base-T/active.
Pace2KRT
Long Range Single Pair (UTP)
Ethernet Adapter Kit

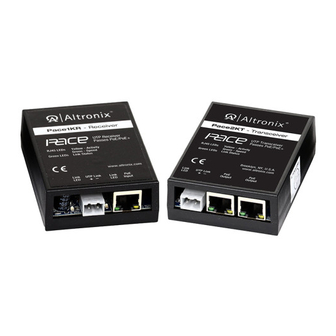

Kit includes Pace1KR Receiver and Pace2KT Transceiver
Installation Guide

Overview:

Features:

Environmental:
• Operating Temperature:
• Storage Temperature:
• Relative humidity:
Functions:
• Auto detection and protection of legacy
Applications:
• Utilize twisted pair for new installations
• Building Automation, Surveillance &
• Extend Network link distance in an
• Works with Megapixel, HD720, HD1080

Mechanical:

• Dimensions (W x L x H approx.):
For single port connectivity please refer to kit
model: Pace1KRT
Pace1KR / Pace2KT:
– 40ºC to 75ºC (– 40ºF to 167ºF).
– 40ºC to 75ºC (– 40ºF to 167ºF).
20 to 85%, non-condensing.
non-PoE cameras/devices.
or retrofit of IP devices.
Security.
industrial environment over 1000m.
and VGA (SD) cameras with proper
headend equipment.
Pace1KR and Pace2KT:
3.8" x 2.5" x 1"
(96.5mm x 63.5mm x 25.4mm).
