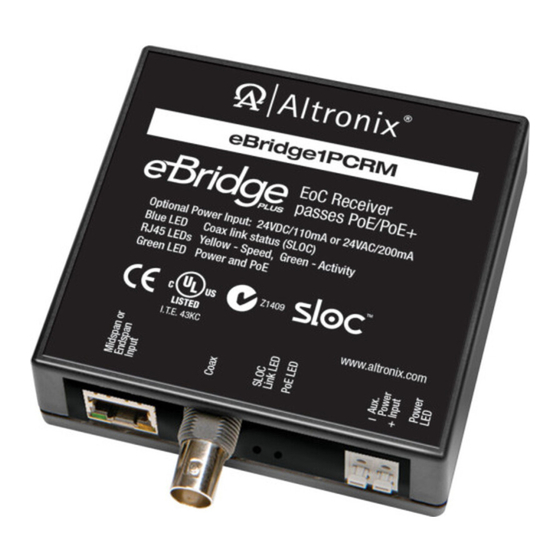

eBridge1PCRM
IP and PoE+ over Coax Receiver
eBridge1PCRM is a single port EoC Receiver which transmits data and passes power over coax cable.
eBridge1PCRM passes PoE/PoE+ up the coax to an eBridge1PCT, eBridge1PCTX or eBridge1ST
transceiver. The transceiver, in turn, delivers that PoE compliant power to an edge device/camera.
This plug and play unit facilitates system upgrades from analog to IP utilizing existing legacy Coax
and eliminates the costs and labor associated with installing new network cabling. Data transmission
and power over the Coax is possible up to 500m in comparison to 100m Ethernet distance (CAT5e). A
maximum range from head end to the edge device/camera is 700m, taking into consideration that up to
100m of structured cable may be deployed from the receiver to the network switch and the transceiver
to the edge device/camera.
Agency Listings:
• UL/CUL Listed for Information
Technology Equipment (UL 60950-1).
• CE approved.
• C-Tick compliant.
Compatible Transceivers:
• eBridge1PCT: PoE compliant transceiver.
• eBridge1PCTX:
PoE/PoE+ compliant transceiver.
• eBridge1ST:
PoE/PoE+ compliant mini transceiver.
Input:
• 24VDC/110mA or 24VAC/200mA.
Ethernet:
• Connectivity: RJ45, auto-crossover.
• Wire type: 4-pair CAT5 or better
structured cable.
• Distance: up to 100m.
• Speed: 10/100BaseT, half/full duplex,
auto negotiation.
PoE compliant to IEEE 802.3af (15W) and
PoE+ compliant to IEEE 802.3at (30W)
delivered to camera by eBridge transceiver.
• Throughput is rated to pass 25Mbps of data at
distances up to 500m with proper headend
equipment which supports Megapixel, HD720,
HD1080.
Coax:
• Distance: up to 500m for power delivery of coax.
• Connectivity: BNC, RG-59/U or similar.
LED Indicators:
Blue LED - Coax link connection.
Green - PoE ON.
Green - Power ON.
Yellow and Green LED (RJ45) IP Link status,
10/100Base-T/active.
eBridge1PCRM
Installation Guide
PLUS
Overview:
Features:
Environmental:
• Operating Temperature:
-20ºC to 49ºC (-4ºF to 120.2ºF).
• Storage Temperature:
-30ºC to 70ºC (-22ºF to 158ºF).
• Relative humidity: 85%, +/-5%, non-condensing.
• Operating Altitude: -304.8 to 2,000m.
Functions:
• Auto detection and protection of legacy
non-PoE cameras/devices.
Applications:
• Retrofit digital IP cameras in an analog CCTV
installation.
• Works with Megapixel, HD720, HD1080, and
VGA (SD) cameras.
• Extend Network link distance in an industrial
environment.
• Upgrade deployed CCTV Coax to a digital
network in Retail, Hospitality, Arenas, Casinos,
Airports, Schools, Hospitals, Transportation, etc.
Mechanical:
• Lightweight molded compact insulated housing.
• eBridge1PCRM dimensions:
3.5" x 4.375" x 1"
(88.9mm x 111.1mm x 25.4mm).
• eBridge1PCTX/1PCT dimensions:
2.5" x 3.8" x 1" (64mm x 97mm x 25mm).
• eBridge1ST dimensions:
2.27" x 2.645" x 1.12"
(57.7mm x 67.2mm x 28.4mm).
Rev. 032113
I.T.E. 43KC
Z1409
- 1 -

Advertisement

loading
Need help?

Need help?

Do you have a question about the eBridge1PCRM and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Altronix eBridge1PCRM

  • Page 1 I.T.E. 43KC Overview: eBridge1PCRM is a single port EoC Receiver which transmits data and passes power over coax cable. eBridge1PCRM passes PoE/PoE+ up the coax to an eBridge1PCT, eBridge1PCTX or eBridge1ST transceiver. The transceiver, in turn, delivers that PoE compliant power to an edge device/camera.
  • Page 2: Installation Instructions

    Connect Coax cable to BNC connector marked [Coax] (Fig. 2, pg. 3). d. A local AUX input 24VAC or 24VDC can be used to power the eBridge1PCRM. This will eliminate the need for the eBridge1PCRM to draw power from the midspan/endspan thus making the midspan/endspan additional power available to the end PoE powered device.
  • Page 3 Coax Powered Switch or NetWay MidSpan Structured Cable Single PoE Camera Connection (eBridge1ST): Fig. 3 Fig. 3a eBridge1PCRM Mounting Hole eBridge1ST eBridge1PCRM - Receiver EoC/PoE+ Receiver Supports PoE/PoE+ Coax Coax Coax Link Link eBridge1PCRM Optional Power Input: 24VDC/110mA or 24VAC/200mA...
  • Page 4 13W/3 Notes: Altronix is not responsible for any typographical errors. 140 58th Street, Brooklyn, New York 11220 USA | phone: 718-567-8181 | fax: 718-567-9056 website: www.altronix.com | e-mail: info@altronix.com | Lifetime Warranty | Made in U.S.A. IIeBridge1PCRM H07Q MEMBER - 4 -...
