Installation Instructions - Altronix eBridge4PCRM Installation Manual

Wiring methods shall be in accordance with the National Electrical Code/NFPA 70/ANSI, and with all local codes and
authorities having jurisdiction. Wiring should be UL Listed and/or Recognized wire suitable for the application.
eBridge1PCTX and eBridge4PCRM are not intended to be connected to outside plant leads and should be installed indoors
within the protected premises. eBridge1PCTX and eBridge4PCRM are intended for indoor use only.
1. eBridge4PCRM installation:
a. Affix rubber pads to eBridge4PCRM for shelf installation (Fig. 4, pg. 4).
Unit should be mounted in proximity to ethernet switch/network, NVR or video server.
b. Connect structured cable from ethernet midspan or endspan device to RJ45 jack marked [10/100BaseT]
(Fig. 2, pg. 3).
c. Connect Coax cable to BNC connector marked [Coax] (Fig. 1, pg. 2).
2. eBridge1PCTX installation:
a. Secure unit to desired mounting surface with a proper fastening device utilizing the case's mounting hole.
Unit should be mounted in proximity of camera/device.
b. Connect structured cable from IP camera/device to RJ45 jack marked [10/100BaseT] (Fig. 2, pg. 3).
c. Connect Coax cable to BNC connector marked [Coax] (Fig. 2, pg. 3).
Note: The eBridge4PCRM is designed to accommodate Megapixel, HD720, HD1080 and VGA (SD) cameras. It is impor-
tant to note that some high resolution and high frame rate cameras may demand faster headend processing ability, such as
a PC graphics card to present a quality image. If the headend processing equipment is insufficient in speed, the image may
show pixelation and latency. It is advisable to pre-test system if unsure. Alternatively, frame rate and resolution may be
reduced to accommodate system equipment.

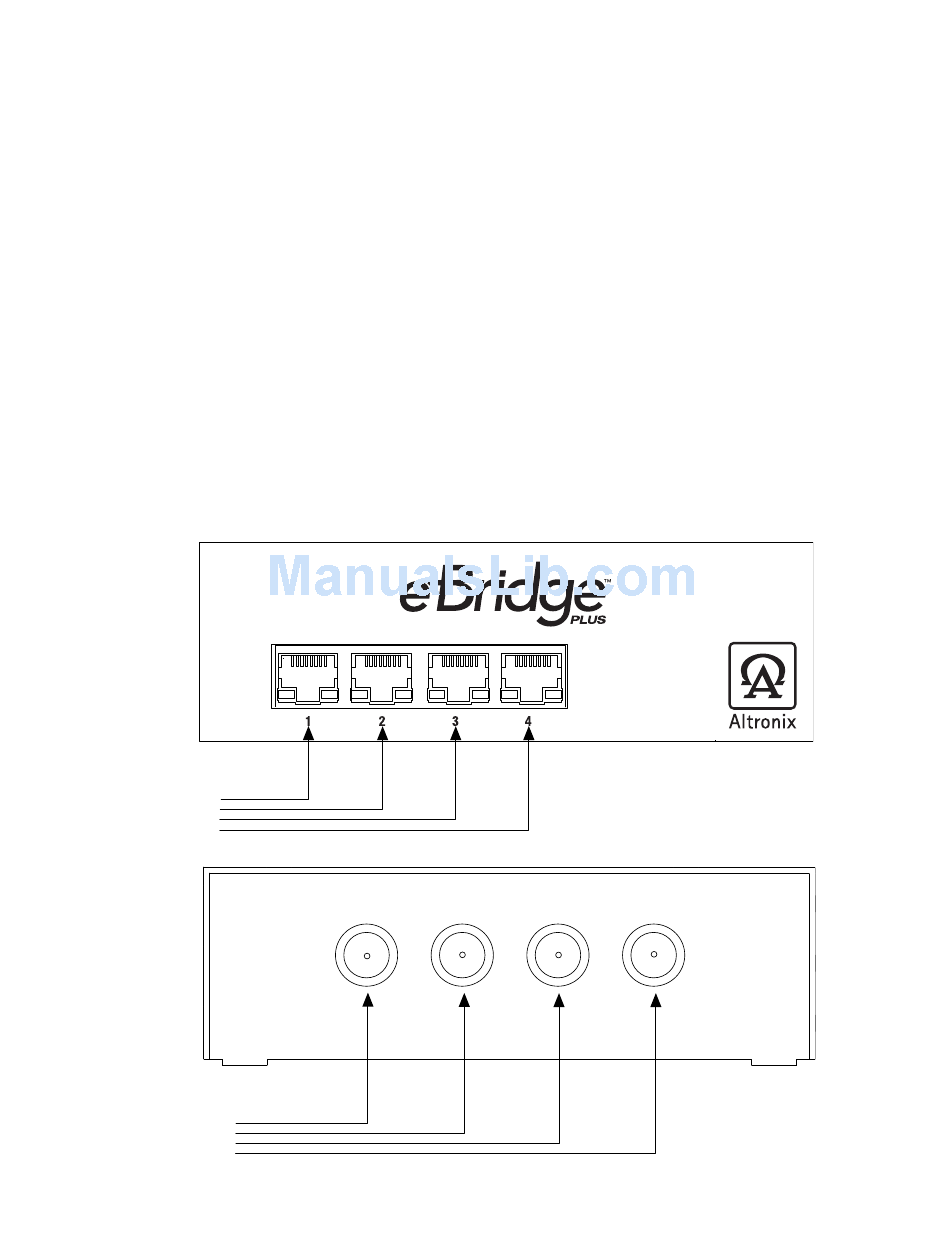

Fig. 1
Front Panel
Structured
Cable from
midspan/endspan
Back Panel
Coax
Cable from
eBridge1PCT or
eBridge1PCTX
- 2 -

Installation Instructions:

eBridge4PCRM
Data In
10/100
Base-T
eBridge4PCRM
