Technical Specifications - Altronix eBridge1CRT Installation Manual

b. Connect 16VAC/24VAC Class 2 plug-in transformer or 12VDC/24VDC (polarity not observed)
Class 2 power supply to jack marked [Power Input] utilizing barrel connector (supplied)
(Fig. 1, pg. 2). Use 22AWG-16AWG wire for this connection.
c. Connect structured cable from ethernet switch/NVR (network video server) to RJ45 jack marked
[10/100BaseT] (Fig. 2, pg. 3).
d. Connect Coax cable to BNC connector marked [Coax] (Fig. 2, pg. 3).
e. For optional simultaneous Composite Video transmission attach the Composite Video Cable
(Fig. 2, pg. 3) by plugging the two (2) position connector into the Comp. Video input marked on
the unit (Note: connector is polarized). Connect the BNC side to the composite video input of
the NVR, monitor display, matrix switch or other headend equipment.
2. eBridge1CT Installation:
a. Secure unit to desired mounting surface with a proper fastening device utilizing the case's
mounting hole (Fig. 2a, pg. 3). Unit should be mounted in proximity of camera/device.
b. Connect 16VAC/24VAC Class 2 plug-in transformer or 12VDC/24VDC (polarity not observed)
Class 2 power supply to jack marked [Power Input] utilizing barrel connector (supplied)
(Fig. 2, pg. 3). Use 22AWG-16AWG wire for this connection.
c. Connect structured cable from IP camera/device to RJ45 jack marked [10/100BaseT] (Fig. 2, pg. 3).
d. Connect Coax cable to BNC connector marked [Coax] (Fig. 2, pg. 3).
e. For simultaneous optional Composite Video transmission, attach the Composite Video Cable
(Fig. 2, pg. 3) by plugging the two (2) position connector into the Comp. Video input marked on
the unit (Note: connector is polarized). Connect the BNC side to the composite video output of
the camera.
Note: The eBridge is designed to accommodate Megapixel, HD720, HD1080 and VGA (SD) cameras. It
is important to note that some high resolution and high frame rate cameras may demand faster headend
processing ability, such as a PC graphics card to present a quality image. If the headend processing equip-
ment is insufficient in speed, the image may show pixelation and latency. It is advisable to pre-test system
if unsure. Alternatively, frame rate and resolution may be reduced to accommodate system equipment.

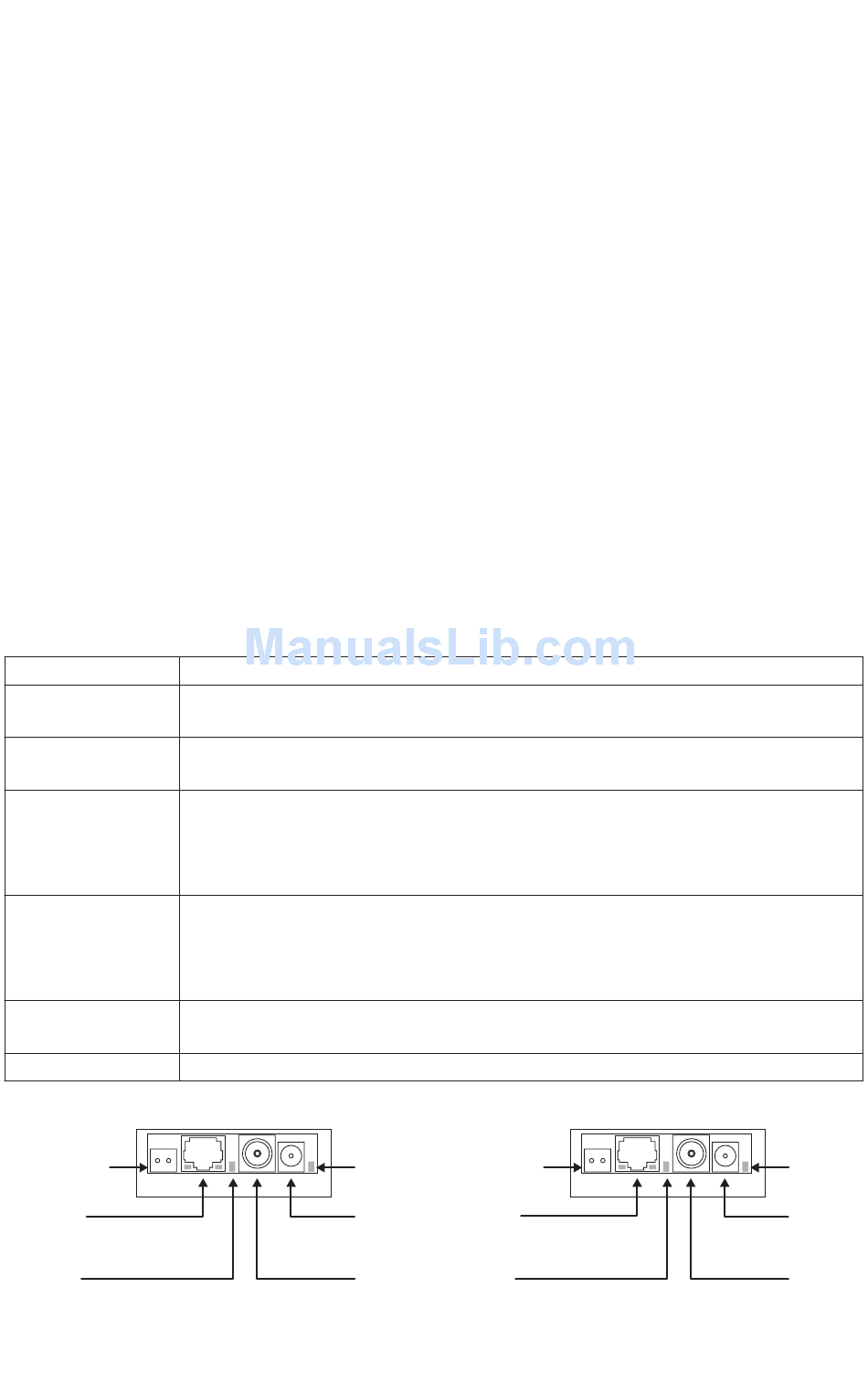

Parameter
Connections
Input power
requirements
Indicators
Environmental
Conditions
Regulatory
Compliance
Weights (approx.)
Fig. 1
Optional
Composite
Video Connector
to Monitor
Structured
Cable from
Ethernet Switch/NVR
Blue LED
indicates
Coax Connection
- 2 -

Technical Specifications:

Description
BNC for Coax link. RJ45 for ethernet link.
Composite video connector for optional composite video service
12VDC/275mA, 24VDC/110mA, 16VAC/375mA, 24VAC/200mA
Blue:
Yellow (RJ45 connector):
Green (RJ45 connector):
Green:
Operating Ambient Temperature (UL60950-1): 14ºF to 122ºF (-10ºC to 50ºC).
Relative humidity: 85%, +/ --- 5%
Storage Temperature: --- 4ºF to 158ºF (--- 20ºC to 70ºC).
Operating Altitude: --- 304.8 to 2,000m.
UL/cUL Listed for Information Technology Equipment (UL 60950-1).
CE approved. C-Tick complant.
Product: 4 oz. (0.11 kg) | Shipping: 7 oz. (0.17 kg)
eBridge1CR
Coax Link.
On - Link, Off - No Link, Blinking - Activity.
On - 100Base-TX, Off - 10Base-T.
Power.
Optional
Green LED
Composite
indicates Video Connector
Power to Camera
12 to 24
Structured
VAC or VDC
Cable from
Input
IP Camera/Device
Coax Blue LED
indicates
Cable from
Coax Connection
eBridge1CT
eBridge1CT
Green LED
indicates
VAC or VDC
Cable from
eBridge1CR
eBridge1CRT
Power
12 to 24
Input
Coax
