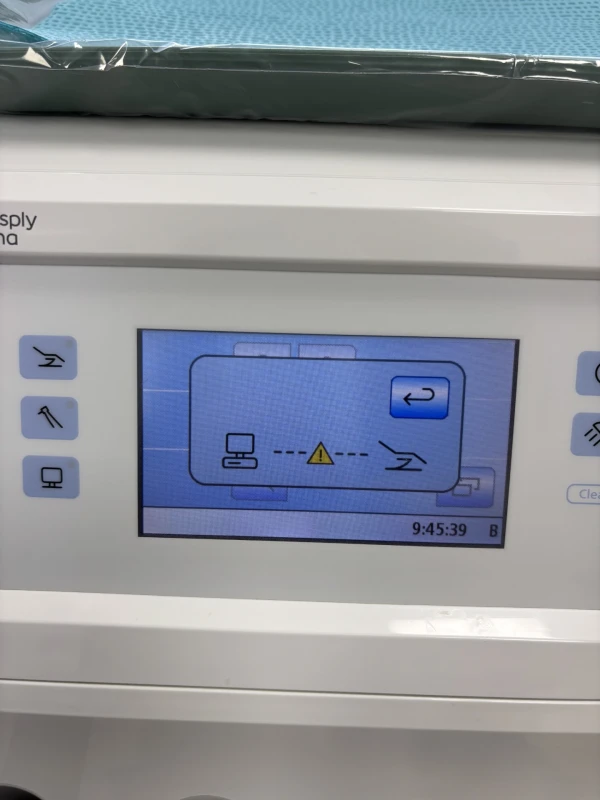

If the Sirona Sinius CS camera is not connecting to the computer, take the following troubleshooting steps:

1. Ensure the intraoral camera is correctly connected at the fifth instrument position on the dentist element and the plug is fully locked in place.
2. Check that the connection cable is properly mounted in the swivel arm and not kinked or twisted, as damaged cables may need replacement.
3. Verify that the treatment center is connected to an external or internal PC with the required SI Video application for displaying images.
4. Confirm that the Ethernet, HDMI, and USB cables are correctly installed and not sharing a cable channel with radiation cables.
5. If using an external PC, ensure it is properly connected and running compatible applications. If using an internal PC, verify that the mini PC is functioning.

Ensure all instruments are correctly repositioned and that no cables are obstructed.

This answer is automatically generated

ALIN SOARE

February 24, 2025

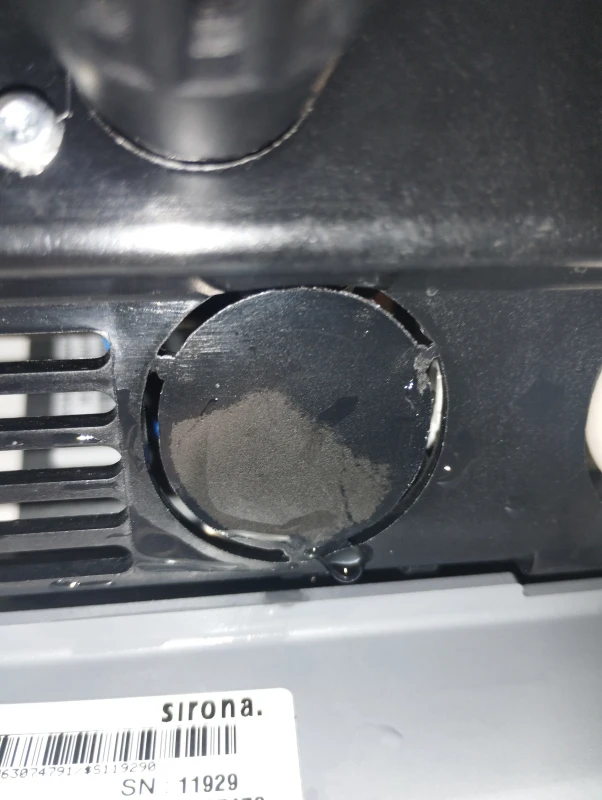

WHY IS WATER LEAKING CONSTANTLY FROM UNDER NEATH BY SCALER ON BRACKET TABLE NOT FROM ATTACHMENTS IT FROM A METAL CIRCLE

1 comments:

Mr. Anderson

February 24, 2025

The constant water leakage from underneath the scaler on the Sirona Sinius CS bracket table could be due to an issue with the water supply, drainage, or an internal malfunction in the scaler system. Possible causes include:

1. A defective water supply connection or leakage in the internal tubing.
2. A malfunction in the SIROSONIC TL scaler, possibly caused by improper operation or a faulty component.
3. A blockage or improper installation in the drainage system, leading to water accumulation and leakage.

To resolve this issue, check the water connections, ensure proper drainage, and inspect the scaler for defects. If the problem persists, inform your service engineer.

This answer is automatically generated

Summary of Contents for Sirona Sinius CS

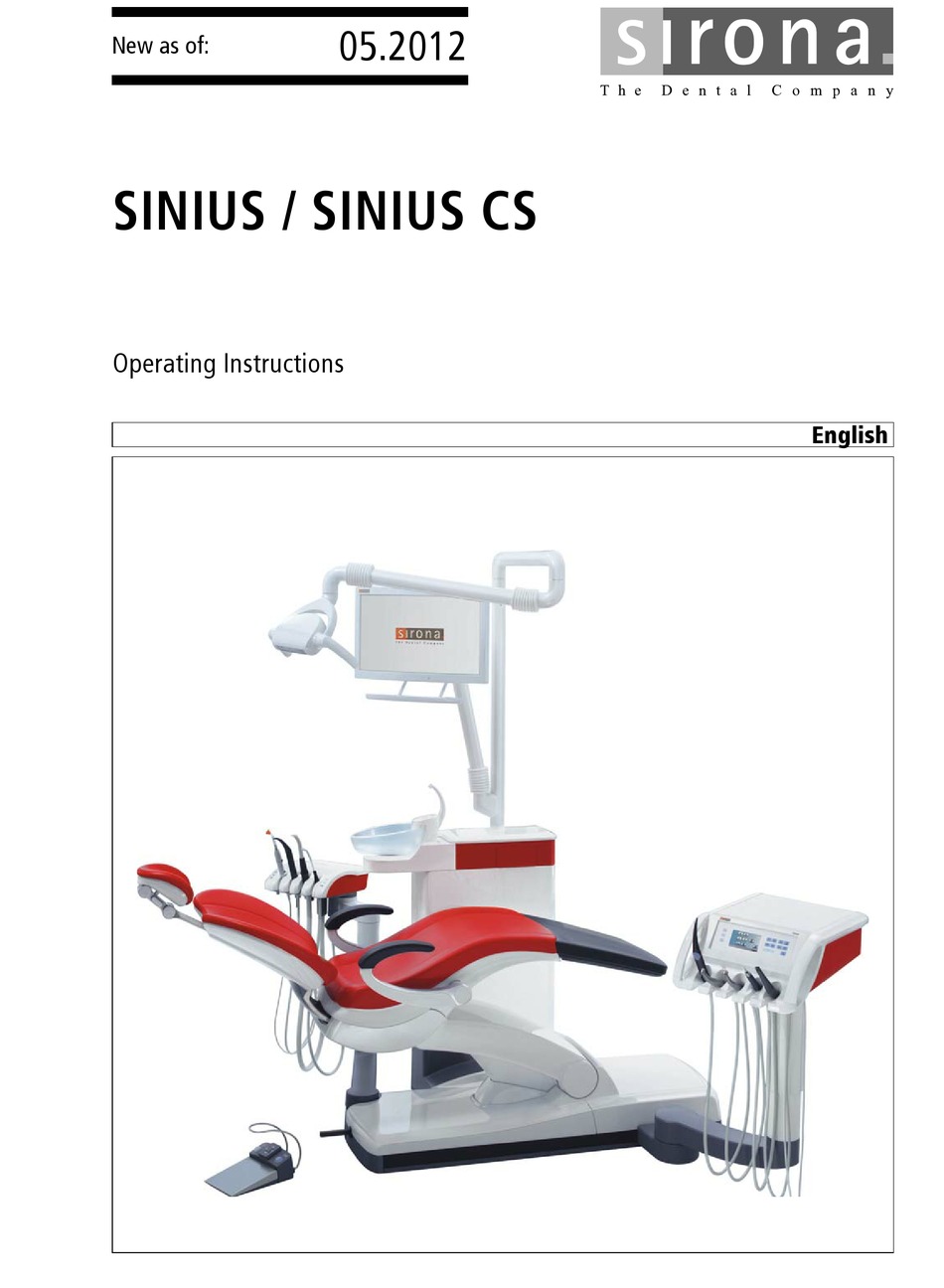

Page 1 MRKOMNO kÉï=~ë=çÑW== pfkfrp=L=pfkfrp=`p léÉê~íáåÖ=fåëíêìÅíáçåë båÖäáëÜ SINIUS / SINIUS CS Operating Instructions...
Page 3: Table Of Contents
Sirona Dental Systems GmbH Operating Instructions SINIUS / SINIUS CS Table of contents General information ....................Dear Customer, .................... Contact information ..................Notes on these Operating Instructions ............1.3.1 General information on the Operating Instructions ......1.3.2 Scope of these Operating Instructions ..........
Page 4 Sirona Dental Systems GmbH Operating Instructions SINIUS / SINIUS CS Unit description......................Standards/Approvals ..................Technical data....................System overview ................... Patient chair ....................Headrest......................3.5.1 Motor-driven headrest ................ 3.5.2 Double-jointed headrest ..............Foot control ....................Dentist element ..................... 3.7.1 Instrument positions ................
Page 5 Sirona Dental Systems GmbH Operating Instructions SINIUS / SINIUS CS Foot control ....................4.3.1 Wireless foot control................4.3.1.1 Setting the wireless foot control on the treatment center ... 4.3.1.2 Battery voltage message............ 4.3.2 Operating the foot control..............4.3.3 Using the cursor control ..............
Page 6 Sirona Dental Systems GmbH Operating Instructions SINIUS / SINIUS CS 4.5.4.6 Composite function ............. 4.5.4.7 Tumbler filling..............4.5.4.8 Flushing of the cuspidor bowl..........4.5.4.9 Freely selectable function ........... 4.5.4.10 Clean................... 4.5.4.11 Setup................... 4.5.5 Quick setting keys and function levels ..........
Page 7 Sirona Dental Systems GmbH Operating Instructions SINIUS / SINIUS CS 4.5.14 Endodontic treatment ................ 4.5.14.1 Treatment selection............4.5.14.2 File selection ..............4.5.14.3 Calibrating the burr drive ............ 4.5.14.4 Setting the direction of rotation........... 4.5.14.5 Using the ApexLocator ............4.5.14.6 Functions in the sub-screen ..........
Page 8 Sirona Dental Systems GmbH Operating Instructions SINIUS / SINIUS CS 4.10 Operating light ....................142 4.10.1 Switching the dentist element operating light on/off and adjusting it.. 142 4.10.2 Switching the dentist element composite function on/off ....143 4.10.3 Activating operating light on the assistant element ......143 4.11...
Page 9 Sirona Dental Systems GmbH Operating Instructions SINIUS / SINIUS CS 4.13.4.11Adjusting the temperature of the tumbler heater....4.13.4.12Switching the sensor control of the LEDview operating light on/off and adjusting it 4.13.5 Configure instruments ............... 4.13.5.1 Preselecting quick setting keys with SaveMode/with DropMode or function levels 4.13.5.2 Switching afterblow on/off ..........
Page 10 Sirona Dental Systems GmbH Operating Instructions SINIUS / SINIUS CS Vacuum system..................... 192 5.4.1 Cleaning the suction hoses ..............192 5.4.2 Cleaning vacuum system using cleaning adapter in the cuspidor..193 5.4.3 Sterilize and disinfect the suction handpieces ........195 5.4.4 Cleaning and disinfecting the suction hoses ........
Page 11: General Information
General information General information Dear Customer, Dear Customer, We are pleased that you have equipped your practice with the Sirona ® SINIUS / SINIUS CS treatment center. Our aim is to recognize our customers' demands in good time and to create innovative solutions.
Page 12: Notes On These Operating Instructions
Our Customer Service Center can provide the operating instructions in paper format free of charge on request. Please state the product name/ type number, and serial number of your unit (see contact details). The latest documentation can always be downloaded from the Sirona homepage (http://td.sirona.com). Help If you reach an impasse despite having thoroughly studied the Operating Instructions, please contact your dental depot.
Page 13: Other Valid Documents
Exclusion of liability In the event that the system owner fails to fulfill its obligation to perform maintenance activities or ignores error messages, Sirona Dental Systems GmbH and its authorized dealers cannot assume any liability for any damage thus incurred.
Page 14: Formats And Symbols Used
1 General information Sirona Dental Systems GmbH 1.7 Formats and symbols used Operating Instructions SINIUS / SINIUS CS Formats and symbols used Formats and symbols used The formats and symbols used in this document have the following meaning: ✔ Prompts you to do something.
Page 15: Safety Instructions
Sirona Dental Systems GmbH 2 Safety instructions Operating Instructions SINIUS / SINIUS CS 2.1 Identification of the danger levels Safety instructions Safety instructions Identification of the danger levels Identification of the danger levels To prevent personal injury and material damage, please observe the warning and safety information provided in this document.
Page 16: Media Quality
Disinfection system, optional To ensure compliance with the medical and national legal requirements for water from treatment centers, Sirona recommends equipping the treatment center with a disinfection system. If you decide to operate the treatment center without a disinfection system, you must make alternative arrangements to ensure good water quality.
Page 17: Trouble-Free Operation
Suction of steel abrasives permissible No restrictions apply when using salt blasting devices in connection with Sirona treatment centers. However, in such cases, make sure that the system is subsequently flushed with an adequate amount of water. Patient chair...
Page 18: Ventilation Slots
Sirona accessories or third-party accessories expressly approved by Sirona. The user assumes the risk of using non-approved accessories. If any devices not approved by Sirona are connected, they must comply with the applicable standards, e.g.: ● IEC 60950 for information technology equipment (e.g. PC) and ●...
Page 19: Electromagnetic Compatibility
Sirona Dental Systems GmbH 2 Safety instructions Operating Instructions SINIUS / SINIUS CS 2.15 Electromagnetic compatibility IEC 60601-1. Under no circumstances may it be connected to a stereo system, or similar, for example. If a system is created during the installation process, the requirements of IEC 60601-1, 3rd edition, must be fulfilled.
Page 20 2 Safety instructions Sirona Dental Systems GmbH 2.16 Electrostatic discharge Operating Instructions SINIUS / SINIUS CS ● discharging the electrostatic charges from your own body through contact with – the metallic device casing – a larger metallic object – another grounded protective ground wire ●...
Page 21: Dismantling/Installation
Sirona Dental Systems GmbH 2 Safety instructions Operating Instructions SINIUS / SINIUS CS 2.17 Dismantling/Installation the affected areas. Damage to individual integrated circuits may cause malfunction or failure of the unit. 2.17 Dismantling/Installation Dismantling/Installation Follow the installation instructions When dismantling and reinstalling the unit, proceed according to the installation instructions for new installation in order to guarantee its proper functioning and stability.
Page 22: Unit Description
3 Unit description Sirona Dental Systems GmbH 3.1 Standards/Approvals Operating Instructions SINIUS / SINIUS CS Unit description Unit description Standards/Approvals Standards/Approvals Compliance with standards, without HF surgery ® The SINIUS / SINIUS CS treatment center complies with the following standards, among others: ●...
Page 23 The current approvals of the wireless foot control are listed on the rating label on the underside of the wireless foot control. Product name is a registered trademark ® SINIUS / SINIUS CS is a registered trademark of Sirona Dental Systems GmbH. 63 22 726 D3561 D3561.201.01.03.02 05.2012...
Page 24: Technical Data
3 Unit description Sirona Dental Systems GmbH 3.2 Technical data Operating Instructions SINIUS / SINIUS CS Technical data Technical data Model designation, power ratings Model designation: SINIUS / SINIUS CS Power connection: 100 - 230 V AC ± 10% 50/60 Hz Rated current: 2.2 A at 230 V...
Page 25 Sirona Dental Systems GmbH 3 Unit description Operating Instructions SINIUS / SINIUS CS 3.2 Technical data Operating conditions: Ambient temperature: 10°C – 40°C (50°F – 104°F) Relative humidity: 30% – 85% no condensation Barometric pressure: 700 hPa – 1060 hPa Installation site: ≤...
Page 26: System Overview
3.3 System overview Operating Instructions SINIUS / SINIUS CS System overview System overview The SINIUS / SINIUS CS treatment center comprises the following main components: SINIUS treatment center Patient chair [ → 28] Motor-driven headrest [ → 29] (shown here) or Double-jointed headrest [ →...
Page 27 Motor-driven headrest [ → 29] (shown here) or Double-jointed headrest [ → 30] Foot control [ → 31] (with cable or wireless link) SINIUS CS dentist element with swivel arms on support arm [ → 32] Assistant element [ → 39] Water unit [ → 41] External device connection [ →...
Page 28: Patient Chair
3 Unit description Sirona Dental Systems GmbH 3.4 Patient chair Operating Instructions SINIUS / SINIUS CS Patient chair Patient chair The patient chair features a variety of motor adjustment options to optimally adapt the patient's position to the given treatment.
Page 29: Headrest
Sirona Dental Systems GmbH 3 Unit description Operating Instructions SINIUS / SINIUS CS 3.5 Headrest Headrest Headrest 3.5.1 Motor-driven headrest Motor-driven headrest The headrest allows for the following adjustment options: ● Motor-driven extension/retraction to adapt to the patient's stature ● Motor-driven tilting for maxillary/mandibular treatment ●...
Page 30: Double-Jointed Headrest
3 Unit description Sirona Dental Systems GmbH 3.5 Headrest Operating Instructions SINIUS / SINIUS CS 3.5.2 Double-jointed headrest Double-jointed headrest The double-jointed headrest is equipped with two rotary joints. They allow the adjustment of head inclination for maxillary/mandibular treatment to a great extent.
Page 31: Foot Control
Sirona Dental Systems GmbH 3 Unit description Operating Instructions SINIUS / SINIUS CS 3.6 Foot control Foot control Foot control The foot control enables hand-free control of the treatment instruments. Via the integrated cursor control, virtually all functions of the treatment center can be controlled via the foot control as an alternative to hand control.
Page 32: Dentist Element
The dental treatment center can be equipped with the SINIUS dentist element on the travel track or the SINIUS CS dentist element on a support arm. SINIUS dentist element The dentist element can be moved the entire length of the patient chair along the travel track.
Page 33 3.7 Dentist element SINIUS CS dentist element The SINIUS CS dentist element is attached to the water unit with a flexible support arm. The support arm is held in place by a pneumatic locking brake. To release the brake simply touch one of the two handles.
Page 34: Instrument Positions
3 Unit description Sirona Dental Systems GmbH 3.7 Dentist element Operating Instructions SINIUS / SINIUS CS 3.7.1 Instrument positions Instrument positions The following instrument positions are available: Holder 1 Holder 2 Holder 3 Holder 4 Holder 5 Additional holder SPRAYVIT M...
Page 35: Easytouch User Interface
3.7.2 EasyTouch user interface EasyTouch user interface User interface of the SINIUS dentist element User interface of the SINIUS CS dentist element Fixed keys for opening the Start, Instrument or SIVISION screen (membrane keyboard) Touchscreen (pressure-sensitive user interface) Fixed keys (membrane keyboard)
Page 36: Touchscreen
3 Unit description Sirona Dental Systems GmbH 3.7 Dentist element Operating Instructions SINIUS / SINIUS CS 3.7.3 Touchscreen Touchscreen The touchscreen displays virtual function keys according to the program selected. A list of all function keys is provided in the Appendix of this document, see "Overview of all function keys"...
Page 37: Fixed Keys On The Dentist Element
Sirona Dental Systems GmbH 3 Unit description Operating Instructions SINIUS / SINIUS CS 3.7 Dentist element 3.7.4 Fixed keys on the dentist element Fixed keys on the dentist element For a more detailed description of the fixed key functions, see "Fixed keys on the dentist element"...
Page 38 3 Unit description Sirona Dental Systems GmbH 3.7 Dentist element Operating Instructions SINIUS / SINIUS CS Flushing Starts or stops the flushing of the cuspidor bowl. Flushing Flushing Time When the key is pressed (> 2 s), the settings screen appears.
Page 39: Assistant Element
Holder 4 Mini L.E.D. curing light SPRAYVIT M Spray aspirator Saliva ejector multifunctional syringe SiroCam AF intraoral camera Only the SINIUS CS treatment center can be equipped with an intraoral camera on the assistant element. 63 22 726 D3561 D3561.201.01.03.02 05.2012...
Page 40: User Interface
3 Unit description Sirona Dental Systems GmbH 3.8 Assistant element Operating Instructions SINIUS / SINIUS CS 3.8.2 User interface User interface There are three fixed keys located on each side, to the left and right of the assistant element. 3.8.3...
Page 41: Water Unit
Sirona Dental Systems GmbH 3 Unit description Operating Instructions SINIUS / SINIUS CS 3.9 Water unit Water unit Water unit Disinfection system The water unit can optionally be equipped with a disinfection system. It adds a disinfectant to the water the patient comes in contact with. This reduces the amount of germs in the water lines.
Page 42 [ → 135] Mount for support arm of operating light and monitor Mount for SINIUS CS dentist element or tray support arm Mount for water-carrying instruments of the dentist element for sanitation and AutoPurge. The mount for the SPRAYVIT M and the suction hoses of the assistant element are located on the opposite side.
Page 43: Outlet For Add-On Devices
Sirona Dental Systems GmbH 3 Unit description Operating Instructions SINIUS / SINIUS CS 3.10 Outlet for add-on devices 3.10 Outlet for add-on devices Outlet for add-on devices External medical accessories can be connected to the external device connection. They must comply with the requirements of the Medical Device Directive 93/42/EEC.
Page 44 3 Unit description Sirona Dental Systems GmbH 3.10 Outlet for add-on devices Operating Instructions SINIUS / SINIUS CS Quick coupling for air Quick coupling for water Pressure Flow rate Water 2.2 ± 0.2 bar max. 300 ml/min 4.4 ± 0.5 bar max.
Page 45: Operation
Sirona Dental Systems GmbH 4 Operation Operating Instructions SINIUS / SINIUS CS 4.1 Starting up the treatment center Operation Operation Starting up the treatment center Starting up the treatment center 4.1.1 Initial startup Initial startup Sanitation must be performed prior to initial startup of your treatment center.
Page 46: Main Switch
4 Operation Sirona Dental Systems GmbH 4.1 Starting up the treatment center Operating Instructions SINIUS / SINIUS CS 4.1.2.2 Main switch Main switch Switching the treatment center on The main switch switches the treatment center from Standby mode to operational readiness.
Page 47  The user profile displayed in the footer is active. Tip: The individual user settings can be read out and transferred to other SINIUS / SINIUS CS treatment centers by a service engineer. The user profiles in this case have to be set only once.
Page 48: Control Concept Of Touchscreen
4 Operation Sirona Dental Systems GmbH 4.2 Control concept of touchscreen Operating Instructions SINIUS / SINIUS CS Control concept of touchscreen Control concept of touchscreen 4.2.1 Virtual function keys Virtual function keys The touchscreen displays virtual function keys according to the program selected.
Page 49: Instrument Functions In The Start Program
Sirona Dental Systems GmbH 4 Operation Operating Instructions SINIUS / SINIUS CS 4.2 Control concept of touchscreen 4.2.2 Instrument functions in the Start program Instrument functions in the Start program Start program After the treatment center is switched on the automatically appears.
Page 50 Switching between Start program and Instruments programs does not apply. This makes the operation of the SINIUS / SINIUS CS dental treatment center similar to other Sirona dental treatment centers that are operated without a touchscreen.
Page 51 ● the treatment function for endodontic treatments is not available Start program with instrument functions mode is intended for users who would like to retain the familiar control concept of other Sirona treatment centers and who can do without the above functions. 63 22 726 D3561...
Page 52: Sub-Screens And Settings Screens
4 Operation Sirona Dental Systems GmbH 4.2 Control concept of touchscreen Operating Instructions SINIUS / SINIUS CS Program change keys Start The LED of the relevant program change key will light up in the program without instrument functions according to the selected program.
Page 53 Sirona Dental Systems GmbH 4 Operation Operating Instructions SINIUS / SINIUS CS 4.2 Control concept of touchscreen the cleaning agent for chemically cleaning the suction hoses or the number of days left until the next maintenance call or sanitation run.
Page 54: Foot Control
4 Operation Sirona Dental Systems GmbH 4.3 Foot control Operating Instructions SINIUS / SINIUS CS Foot control Foot control The treatment center can be operated using a wireless foot control or a foot control with a cable connection. 4.3.1 Wireless foot control...
Page 55 Sirona Dental Systems GmbH 4 Operation Operating Instructions SINIUS / SINIUS CS 4.3 Foot control Foot control ✔ An instrument is removed. ➢ Step on the foot control.  The instrument is activated. The intensity is regulated according to the pedal movement if necessary (if the speed foot control is set, see "General instrument functions"...
Page 56: Using The Cursor Control
4 Operation Sirona Dental Systems GmbH 4.3 Foot control Operating Instructions SINIUS / SINIUS CS 4.3.3 Using the cursor control Using the cursor control only possible in Start program with instrument functions mode Start program with instrument The cursor control cannot be used in the functions mode.
Page 57 Cursor path on swivel arm dentist element This picture shows an example of the control panel of the SINIUS dentist element. The cursor path of the SINIUS CS dentist element also follows this principle. Orange and blue bars A blue bar indicates which functions are assigned with the left or right button of the foot control.
Page 58: Operating The Cursor Control
4 Operation Sirona Dental Systems GmbH 4.3 Foot control Operating Instructions SINIUS / SINIUS CS 4.3.3.2 Operating the cursor control Operating the cursor control Moving the cursor ➢ Briefly slide the 4-way foot control plate upward or downward.  The orange cursor moves forward or back one cursor position.
Page 59 Sirona Dental Systems GmbH 4 Operation Operating Instructions SINIUS / SINIUS CS 4.3 Foot control Changing programs ✔ Cursor control with program change is switched on. 1. Position the cursor at the starting point of the cursor path. 2. Move the cursor past the start position. Hold the 4-way foot control plate in the upward position.
Page 60: Patient Chair
4 Operation Sirona Dental Systems GmbH 4.4 Patient chair Operating Instructions SINIUS / SINIUS CS Patient chair Patient chair 4.4.1 Safety instructions Safety instructions Patient chair, chair movements CAUTION The free space under the patient couch and up to the water unit can be decreased due to chair movements.
Page 61: Safety Stop
Sirona Dental Systems GmbH 4 Operation Operating Instructions SINIUS / SINIUS CS 4.4 Patient chair 4.4.2 Safety stop Safety stop The treatment center is equipped with various safety stops to prevent crushing and damages. The cutoff trigger points are shown in the...
Page 62: Triggering An Immediate Movement Stop
4 Operation Sirona Dental Systems GmbH 4.4 Patient chair Operating Instructions SINIUS / SINIUS CS 4.4.3 Triggering an immediate movement stop Triggering an immediate movement stop You can stop the movement of the chair to a programmed position as follows: Shock positioning ➢...
Page 63: Armrests
Sirona Dental Systems GmbH 4 Operation Operating Instructions SINIUS / SINIUS CS 4.4 Patient chair 4.4.4 Armrests Armrests are available for the patient chair. Armrests Swinging the right armrest forward makes it easier to climb onto and off the chair.
Page 64: Adjusting The Motor-Driven Headrest
4 Operation Sirona Dental Systems GmbH 4.4 Patient chair Operating Instructions SINIUS / SINIUS CS 4.4.5 Adjusting the motor-driven headrest Adjusting the motor-driven headrest The motor-driven headrest can be adjusted via the touchscreen or directly on the headrest. Headrest, motor-driven, catching of hair...
Page 65: Inclining The Headrest
Sirona Dental Systems GmbH 4 Operation Operating Instructions SINIUS / SINIUS CS 4.4 Patient chair 4.4.5.2 Inclining the headrest Inclining the headrest The headrest can be tilted either via motor drive or manually (quick mechanical adjustment). Tilting headrest via touchscreen, Start program without instrument functions Via touchscreen ✔...
Page 66: Adjusting The Double-Jointed Headrest
4 Operation Sirona Dental Systems GmbH 4.4 Patient chair Operating Instructions SINIUS / SINIUS CS 4.4.6 Adjusting the double-jointed headrest The double-jointed headrest is equipped with two rotary joints. They Adjusting the double-jointed headrest facilitate manual adjustment of head inclination for maxillary/mandibular treatments.
Page 67: Moving The Patient Chair Via Chair Programs
During an automatic program run, such as approaching the entry/exit or mouth rinsing positions, the patient may collide with the SINIUS CS dentist element or its support arm. The patient is at risk of being crushed.
Page 68: Moving The Patient Chair To The Mouth Rinsing Position
4 Operation Sirona Dental Systems GmbH 4.4 Patient chair Operating Instructions SINIUS / SINIUS CS Via foot control ✔ All instruments are in place. ➢ Press the right button of the foot control. Via the assistant element ➢ Press the key on the assistant element briefly (<...
Page 69: Using The Last Position Memory Function
Sirona Dental Systems GmbH 4 Operation Operating Instructions SINIUS / SINIUS CS 4.4 Patient chair 4.4.7.3 Using the last position memory function Using the last position memory function The last chair position is stored before the patient chair moves to mouth rinsing position S.
Page 70: Moving The Chair Manually
CS dentist element or its support arm. The patient is at risk of being crushed. ➢ Before moving the patient chair, position the SINIUS CS dentist element in such a way that a collision with the patient or the patient chair is impossible.
Page 71: Tilting The Patient Couch
Sirona Dental Systems GmbH 4 Operation Operating Instructions SINIUS / SINIUS CS 4.4 Patient chair 4.4.8.2 Tilting the patient couch Tilting the patient couch Movement of the seat and backrest without any compression or stretching effects for the patient Via touchscreen ✔...
Page 72: Creating Chair And Shock Positioning Programs
4 Operation Sirona Dental Systems GmbH 4.4 Patient chair Operating Instructions SINIUS / SINIUS CS 4.4.9 Creating chair and shock positioning programs Creating chair and shock positioning programs Chair programs The four chair programs preset in the factory: ● Mouth rinsing position S ●...
Page 73: Setting The Active Lumbar Support
Sirona Dental Systems GmbH 4 Operation Operating Instructions SINIUS / SINIUS CS 4.4 Patient chair 4.4.10 Setting the active lumbar support Setting the active lumbar support The patient chair has the option of lumbar support. Start program with or without instrument functions Opening Start sub-screen ✔...
Page 74: Dentist Element
Maximum load capacity silicone mat that can be sterilized can be placed over the dentist element. The maximum load of the SINIUS CS dentist element tray is 1 kg (2.2 lbs). In addition, an NaCl bottle with matching accessories (weighing approx. 1 kg or 2.2 lbs) can also be attached to both dentist elements, see...
Page 75 CS dentist element or its support arm. The patient is at risk of being crushed. ➢ Before moving the patient chair, position the SINIUS CS dentist element in such a way that a collision with the patient or the patient chair is impossible.
Page 76: Fixed Keys On The Dentist Element
Fixed keys on the dentist element Fixed keys on the dentist element Arrangement of fixed keys on the SINIUS dentist element Arrangement of fixed keys on the SINIUS CS dentist element Main switch 4.5.4.1 The treatment center is switched on/off with the main switch.
Page 77: Timer Function
Sirona Dental Systems GmbH 4 Operation Operating Instructions SINIUS / SINIUS CS 4.5 Dentist element It is not possible: ● to switch to the instrument program or the sub-screen of an instrument when no instrument has been removed ● to switch to the SIVISION program when the PC connection is turned...
Page 78: Shock Positioning
4 Operation Sirona Dental Systems GmbH 4.5 Dentist element Operating Instructions SINIUS / SINIUS CS Starting the timers Timer 1. Press the fixed key briefly.  The last timer used is started immediately. The set and elapsed Timer function time are displayed in the footer. The screen remains visible.
Page 79: Composite Function
Sirona Dental Systems GmbH 4 Operation Operating Instructions SINIUS / SINIUS CS 4.5 Dentist element The brightness of the operating light is also set via the touchscreen. Operating Light 1. Press and hold the fixed key on the dentist element (>...
Page 80: Flushing Of The Cuspidor Bowl
4 Operation Sirona Dental Systems GmbH 4.5 Dentist element Operating Instructions SINIUS / SINIUS CS Tumbler Filling 2. Press the fixed key.  The tumbler is filled with water for the preset time. Tumbler Filling Pressing the fixed key again stops the filling function immediately.
Page 81: Freely Selectable Function
Sirona Dental Systems GmbH 4 Operation Operating Instructions SINIUS / SINIUS CS 4.5 Dentist element Setting the flushing time Flushing 1. Press and hold the key on the dentist element (> 2 s). Flushing  The settings screen appears on the touchscreen.
Page 82: Quick Setting Keys And Function Levels
4 Operation Sirona Dental Systems GmbH 4.5 Dentist element Operating Instructions SINIUS / SINIUS CS 4.5.5 Quick setting keys and function levels Quick setting keys and function levels Control options The treatment center offers you two selectable control options in certain Start Instrument programs.
Page 83 Sirona Dental Systems GmbH 4 Operation Operating Instructions SINIUS / SINIUS CS 4.5 Dentist element Using quick setting keys or function You can select operation via quick setting keys or via function levels in levels the Setup program; see "Preselecting quick setting keys with SaveMode/ with DropMode or function levels"...
Page 84: Saving Instrument Settings
4 Operation Sirona Dental Systems GmbH 4.5 Dentist element Operating Instructions SINIUS / SINIUS CS 4.5.6 Saving instrument settings Saving instrument settings With quick setting keys You can determine whether the Save key should be displayed in the Instrument programs with the quick setting keys, see "Preselecting quick setting keys with SaveMode/with DropMode or function levels"...
Page 85: Placing The Instruments In Their Holders
Sirona Dental Systems GmbH 4 Operation Operating Instructions SINIUS / SINIUS CS 4.5 Dentist element 4.5.7 Placing the instruments in their holders Placing the instruments in their holders Automatic opening of Instrument programs Start program without instrument functions In the...
Page 86 4 Operation Sirona Dental Systems GmbH 4.5 Dentist element Operating Instructions SINIUS / SINIUS CS Ball stopper for SINIUS dentist element A ball stopper can be ordered as an accessory for a free instrument Ball stopper, not attached to the unit holder.
Page 87: General Instrument Functions
Sirona Dental Systems GmbH 4 Operation Operating Instructions SINIUS / SINIUS CS 4.5 Dentist element 4.5.8 General instrument functions General instrument functions Instruments placed in a horizontal position Settings pertaining to the coolant, instrument light and foot control can be made in the sub-screen of the removed instrument.
Page 88: Setting The Apexlocator
Preselecting the instrument light operating voltage The original Sirona halogen and LED lamps are usually operated at 3.6 V. Voltages over 3.8 V destroy the lamp. The operating voltage can be adjusted for lamps made by other manufacturers.
Page 89: Setting The Foot Control As A Direct Starter Or Speed Foot
Sirona Dental Systems GmbH 4 Operation Operating Instructions SINIUS / SINIUS CS 4.5 Dentist element ➢ Use the – and + keys to adjust the maximum operating voltage of the instrument light. 4.5.8.5 Setting the foot control as a direct starter or speed foot control...
Page 90: Preparing For Use Of Nacl Saline Solution
4 Operation Sirona Dental Systems GmbH 4.5 Dentist element Operating Instructions SINIUS / SINIUS CS 1. The instruments must be removed from the instrument holder. To do this, remove all instruments one after the other and allow these to overhang facing forward.
Page 91 Sirona Dental Systems GmbH 4 Operation Operating Instructions SINIUS / SINIUS CS 4.5 Dentist element 1. Attach the NaCl bottle holder to the dentist element. 2. Hang the NaCl bottle (max. 1 liter) onto the bottle holder. 3. Undo the locking mechanism A of the peristaltic pump and fold it down.
Page 92 Sirona Dental Systems GmbH 4.5 Dentist element Operating Instructions SINIUS / SINIUS CS 6. Push the short end of the hose with the cannula through the stopper and into the NaCl bottle. The regulator in the hose clip (E) must be completely open (regulating wheel in top position).
Page 93: Setting The Nacl Flow Rate
Sirona Dental Systems GmbH 4 Operation Operating Instructions SINIUS / SINIUS CS 4.5 Dentist element 4.5.8.8 Setting the NaCl flow rate Setting the NaCl flow rate ✔ An instrument is removed. ✔ Start program without instrument functions In the operating mode, the...
Page 94: Apexlocator
The mucosal electrode and the file clamp are connected to the socket of the dentist element using the Apex adapter. The socket on the SINIUS dentist element is located under the dentist element; on the SINIUS CS it is located at the back.
Page 95 When using the BL motor, an APEX ISO adapter (D) must be used. This also has a gold-plated contact. The Sirona ENDO 6:1 handpiece is intended for use in endodontic treatments with the ApexLocator. Pull the protective silicon sleeve (E) over the handpiece to prevent measurement errors caused by contact with the oral mucosa.
Page 96: Distance Display
4 Operation Sirona Dental Systems GmbH 4.5 Dentist element Operating Instructions SINIUS / SINIUS CS 4.5.9.2 Distance display Distance display The measured root canal depth is shown in the distance display on the touchscreen. A bar with 11 display levels shows the distance from the root canal file to the physiological apex.
Page 97: Beeps
Sirona Dental Systems GmbH 4 Operation Operating Instructions SINIUS / SINIUS CS 4.5 Dentist element Green region The tip of the root canal file has reached the physiological apex. Red region The tip of the root canal file has pierced the physiological apex. The instrument overshoot is displayed.
Page 98: Performing Manual Measurements With The File Clamp
4 Operation Sirona Dental Systems GmbH 4.5 Dentist element Operating Instructions SINIUS / SINIUS CS with the motor stop function activated. The three beeps that are issued following activation of the auto-reverse function continue to sound. Performing manual measurements with the file clamp 4.5.9.4...
Page 99 Sirona Dental Systems GmbH 4 Operation Operating Instructions SINIUS / SINIUS CS 4.5 Dentist element Start The manual measurement in the sub-screen is ended automatically if you exit the program or display another program. For information on apex measurements during treatment, refer to the section “Endodontic treatments with motor"...
Page 100: Electric Motor
4 Operation Sirona Dental Systems GmbH 4.5 Dentist element Operating Instructions SINIUS / SINIUS CS 4.5.10 Electric motor Electric motor Electric motor, observe the Operating Instructions IMPORTANT Also observe the operating instructions for the different motors. Motor and coupling versions 4.5.10.1...
Page 101: Setting The Speed
Sirona Dental Systems GmbH 4 Operation Operating Instructions SINIUS / SINIUS CS 4.5 Dentist element 4.5.10.2 Setting the speed Setting the speed Start Quick setting keys and function levels can only be accessed in the program without instrument functions Start operating mode.
Page 102 4 Operation Sirona Dental Systems GmbH 4.5 Dentist element Operating Instructions SINIUS / SINIUS CS Electric motor, increments with quick setting keys IMPORTANT Increments The size of the increments depends on the speed range setting. For BL, BL ISO C motors:...
Page 103: Setting The Direction Of Rotation
Sirona Dental Systems GmbH 4 Operation Operating Instructions SINIUS / SINIUS CS 4.5 Dentist element 4.5.10.3 Setting the direction of rotation Setting the direction of rotation The direction of rotation can be changed only with the motor stopped. Start program with instrument functions...
Page 104: Endodontic Treatments With Motor
ApexLocator, SIRONiTi APEX IMPORTANT SIRONiTi APEX Only Sirona SIRONiTi APEX must be used to perform apex measurement using a torque-limiting handpiece! The electrical conductivity can only be ensured using this handpiece. The SIRONiTi handpiece can also be used to perform endodontic treatments without ApexLocator.
Page 105 Sirona Dental Systems GmbH 4 Operation Operating Instructions SINIUS / SINIUS CS 4.5 Dentist element Motor  The sub-screen is displayed. Apex stop 3. Touch the key.  If the key is highlighted orange, the automatic motor stop is activated when the physiological apex is reached.
Page 106: Turbine
4 Operation Sirona Dental Systems GmbH 4.5 Dentist element Operating Instructions SINIUS / SINIUS CS 4.5.11 Turbine Turbine High-speed handpiece, observe the Operating Instructions IMPORTANT Also observe the operating instructions for the different high-speed handpieces. The high-speed handpiece hose is equipped with a standardized coupling according to ISO 9168.
Page 107: Sprayvit M Multifunctional Syringe
Sirona Dental Systems GmbH 4 Operation Operating Instructions SINIUS / SINIUS CS 4.5 Dentist element 4.5.12 SPRAYVIT M multifunctional syringe SPRAYVIT M multifunctional syringe The multifunctional syringe is used to clean the treatment areas and blow them dry. It supplies air and preheated water media. The heating cartridge for the water is located in the handpiece.
Page 108: Operating The Sprayvit M Multifunctional Syringe
4 Operation Sirona Dental Systems GmbH 4.5 Dentist element Operating Instructions SINIUS / SINIUS CS Multifunctional syringe, electronic flow monitoring IMPORTANT Electronic flow monitoring If the electronic flow monitoring system detects low flow, the water heater will be deactivated and the system displays the corresponding error message, see also "Error messages"...
Page 109: Operation With Other Instruments
Sirona Dental Systems GmbH 4 Operation Operating Instructions SINIUS / SINIUS CS 4.5 Dentist element Switch instrument light on/off Instrument Light ➢ Touch the key.  If the key is highlighted orange, the instrument light on the SPRAYVIT M multifunctional syringe is switched on, provided that it is the only instrument removed.
Page 110: Sirosonic Tl Scaler
4 Operation Sirona Dental Systems GmbH 4.5 Dentist element Operating Instructions SINIUS / SINIUS CS 4.5.13 SIROSONIC TL scaler SIROSONIC TL scaler The SIROSONIC TL scaler is used for removing plaque and for endodontic treatments. Ultrasonic handpiece, observe the Operating Instructions IMPORTANT Also observe the operating instructions of the SIROSONIC TL.
Page 111: Setting The Intensity
Sirona Dental Systems GmbH 4 Operation Operating Instructions SINIUS / SINIUS CS 4.5 Dentist element 4.5.13.2 Setting the intensity Setting the intensity Start Quick setting keys and function levels can only be accessed in the program without instrument functions Start operating mode.
Page 112 4 Operation Sirona Dental Systems GmbH 4.5 Dentist element Operating Instructions SINIUS / SINIUS CS Setting intensity in the Start program with instrument functions ✔ Start program with instrument functions operating mode is selected. ✔ The SIROSONIC TL scaler is removed.
Page 113: Endodontic Treatment
Contra-angle handpiece, endodontics CAUTION Only the Sirona ENDO 6:1 contra-angle handpiece may be used for the endodontics function. Instruments from other manufacturers can lead to malfunctions. Outside instruments may be improperly calibrated for endodontics. ➢ Use only the ENDO 6:1 contra-angle handpiece from Sirona for endodontics.
Page 114 4 Operation Sirona Dental Systems GmbH 4.5 Dentist element Operating Instructions SINIUS / SINIUS CS Treatment selection  The screen is displayed. 2. Touch the required endodontic treatment field. Start program  The is displayed or, if an instrument has already...
Page 115: File Selection
Sirona Dental Systems GmbH 4 Operation Operating Instructions SINIUS / SINIUS CS 4.5 Dentist element Switching the Treatment function off If the Treatment function is activated, the Endodontics program Motor screen displayed on the touchscreen instead of the when the burr Motor screen drive assigned to the treatment is removed.
Page 116: Setting The Direction Of Rotation
4.5 Dentist element Operating Instructions SINIUS / SINIUS CS Calibration only with Sirona instruments CAUTION Use only Sirona instruments to guarantee correct calibration. ✔ Endodontics program is displayed on the touchscreen. 1. Attach the contra-angle handpiece that you would like to use for the treatment to the electric motor.
Page 117 Sirona Dental Systems GmbH 4 Operation Operating Instructions SINIUS / SINIUS CS 4.5 Dentist element IMPORTANT Preventing incorrect measurements When performing the apex measurement, wear non-conductive gloves to avoid measurement errors caused by unwanted leakage current. During the measurement, the instrument must not come into contact with the patient's mucosa or the mucosal electrode.
Page 118: Functions In The Sub-Screen
4 Operation Sirona Dental Systems GmbH 4.5 Dentist element Operating Instructions SINIUS / SINIUS CS 4.5.14.6 Functions in the sub-screen Functions in the sub-screen Opening the endodontics sub-screen Opening the endodontics sub-screen Settings, such as changing the preselected speed and torque values [ →...
Page 119 ➢ Observe the manufacturer's instructions regarding file systems. Contra-angle handpiece, endodontics CAUTION Only the Sirona ENDO 6:1 contra-angle handpiece may be used for the endodontics function. Instruments from other manufacturers can lead to malfunctions. Outside instruments may be improperly calibrated for endodontics.
Page 120 4 Operation Sirona Dental Systems GmbH 4.5 Dentist element Operating Instructions SINIUS / SINIUS CS Remove file from sequence Remove file from sequence Individual files can be removed from the sequence. Treatment, file system reset IMPORTANT Automatic file system reset...
Page 121 Sirona Dental Systems GmbH 4 Operation Operating Instructions SINIUS / SINIUS CS 4.5 Dentist element Treatment, saving settings IMPORTANT Memory key hidden Please note that the file-specific settings for factory endodontic Memory treatments cannot be changed. The key is therefore hidden in the sub-screen for these treatments.
Page 122: Endodontic Treatment Administration
4 Operation Sirona Dental Systems GmbH 4.5 Dentist element Operating Instructions SINIUS / SINIUS CS 4.5.14.7 Endodontic treatment administration Endodontic treatment administration Up to three endodontic treatments can be added to the treatment list of Treatment selection screen. The following functions are used to administer the endodontic treatment list: ●...
Page 123 Sirona Dental Systems GmbH 4 Operation Operating Instructions SINIUS / SINIUS CS 4.5 Dentist element Copy endodontic treatment 2. Touch the key.  A keyboard is displayed. The name of the endodontic treatment to be copied is displayed in the text box.
Page 124 4 Operation Sirona Dental Systems GmbH 4.5 Dentist element Operating Instructions SINIUS / SINIUS CS 1. Touch the button of an endodontic treatment that you would like to delete.  The selected button is highlighted orange. Delete endodontic treatment 2. Touch the key for more than 2 seconds.
Page 125: Assistant Element
Sirona Dental Systems GmbH 4 Operation Operating Instructions SINIUS / SINIUS CS 4.6 Assistant element Assistant element Assistant element 4.6.1 Maximum load capacity A load is not permitted for the assistant element. Maximum load capacity Assistant element, support arm CAUTION To prevent injuries caused by falling objects, never place anything on the support arm of the assistant element.
Page 126: Tumbler Filling
4 Operation Sirona Dental Systems GmbH 4.6 Assistant element Operating Instructions SINIUS / SINIUS CS touchscreen of the dentist element. To make settings, see "Fixed keys on the dentist element" [ → 76]. Tumbler filling 4.6.3.1 Tumbler filling If the your treatment center is equipped with the Tumbler filling option with automatic sensor control, see “Tumbler filling with automatic sensor...
Page 127: Chair Programs S And 0
Sirona Dental Systems GmbH 4 Operation Operating Instructions SINIUS / SINIUS CS 4.6 Assistant element 4.6.3.4 Chair programs S and 0 The chair programs Mouth rinsing position (S) and Entry/exit position (0) Chair programs S and 0 can be selected on the assistant element: For details, see"Moving the patient chair via chair programs"...
Page 128: Suction Handpieces
➢ Make sure to hold the suction cannula in such a way that the cannula opening cannot attach itself to the oral mucous membranes by accident. Sirona recommends using spray aspirator cannulas with air intake opening or ventilation holes see "Spare parts, Consumables [ →...
Page 129: Sprayvit M Multifunctional Syringe
Sirona Dental Systems GmbH 4 Operation Operating Instructions SINIUS / SINIUS CS 4.6 Assistant element 4.6.5 SPRAYVIT M multifunctional syringe The functionality is described in the chapter on the dentist element, see SPRAYVIT M multifunctional syringe "SPRAYVIT M multifunctional syringe" [ → 107].
Page 130: Mini L.e.d. Curing Light
4 Operation Sirona Dental Systems GmbH 4.6 Assistant element Operating Instructions SINIUS / SINIUS CS 4.6.6 Mini L.E.D. curing light Mini L.E.D. curing light The curing light is used to cure composite fillings with short-wave light. 4.6.6.1 Safety information Safety information CAUTION The curing light contains powerful LEDs.
Page 131: Connecting The Mini L.e.d
Sirona Dental Systems GmbH 4 Operation Operating Instructions SINIUS / SINIUS CS 4.6 Assistant element 4.6.6.2 Connecting the Mini L.E.D. The Mini L.E.D. is connected to the assistant element in holder 1. Connecting the Mini L.E.D. 1. Connect the supply cable (A) to the treatment center.
Page 132: Operating The Mini L.e.d
4 Operation Sirona Dental Systems GmbH 4.6 Assistant element Operating Instructions SINIUS / SINIUS CS The Mini L.E.D. features three operating modes you can select with the Mode button H: Quick curing mode In the quick curing mode, the Mini L.E.D. operates at full power for 10 seconds.
Page 133: Technical Data
Sirona Dental Systems GmbH 4 Operation Operating Instructions SINIUS / SINIUS CS 4.6 Assistant element You can interrupt the curing cycle immediately by pressing the on/off button (C). For care and cleaning, see "Disinfecting and sterilizing the Mini L.E.D. curing light" [ → 188].
Page 134: Water Unit
4 Operation Sirona Dental Systems GmbH 4.7 Water unit Operating Instructions SINIUS / SINIUS CS Water unit 4.7.1 Swiveling the cuspidor bowl Water unit Swiveling the cuspidor bowl The cuspidor on the water unit can be manually swiveled approx. 110 mm toward the patient chair.
Page 135: Adjusting The Water Amount For Flushing
Microorganisms can multiply in the water. These microorganisms could increase the risk of damage to one's health. ➢ Sirona recommends never operating the treatment center without disinfectants. ➢ Check the amount of germs in water of the treatment center at regular intervals.
Page 136 4 Operation Sirona Dental Systems GmbH 4.7 Water unit Operating Instructions SINIUS / SINIUS CS Manually sanitize water supply, self-sufficient, treatment center CAUTION Sanitizing the treatment center manually If the self-sufficient water supply takes more than 28 days, in exceptional cases, the treatment center is to be sanitized manually.
Page 137 Sirona Dental Systems GmbH 4 Operation Operating Instructions SINIUS / SINIUS CS 4.7 Water unit Aqua 1. Press and hold the key (> 2 s). Aqua Changing to self-  The key flashes orange. Moreover, the sufficient water supply display appears.
Page 138: Display While Disinfection System Is Switched Off
4 Operation Sirona Dental Systems GmbH 4.7 Water unit Operating Instructions SINIUS / SINIUS CS Water unit, disinfectant tank < 300 ml IMPORTANT 300 ml are approximately sufficient for: ➢ 5 min. spray operation (motor, high-speed handpiece, SIROSONIC TL) or ➢...
Page 139: Tray
Maximum load capacity SINIUS treatment centers can be equipped with a tray on a support arm, SINIUS CS treatment centers with a tray, which is mounted below the dentist element. The maximum load is 1 kg (2.2 lbs) for both versions.
Page 140: Panoramic X-Ray Viewer
The SINIUS treatment center with travel track can be equipped with an X- Attachment versions ray viewer on the tray support arm. No X-ray viewer can be attached to the SINIUS CS treatment center. If the treatment center is equipped with a SIVISION Monitor, this can be switched to a white screen.
Page 141: Attaching The Anti-Glare Film
Sirona Dental Systems GmbH 4 Operation Operating Instructions SINIUS / SINIUS CS 4.9 Panoramic X-ray viewer 4.9.3 Attaching the anti-glare film Attaching the anti-glare film An anti-glare film is supplied with the X-ray viewer for viewing intraoral dental images. 1. Remove the three retaining clips (A).
Page 142: Operating Light
4 Operation Sirona Dental Systems GmbH 4.10 Operating light Operating Instructions SINIUS / SINIUS CS 4.10 Operating light Operating light The operating light is attached to a height-adjustable support arm. It can be easily adjusted with the handgrips to illuminate the treatment area.
Page 143: Switching The Dentist Element Composite Function On/Off
Sirona Dental Systems GmbH 4 Operation Operating Instructions SINIUS / SINIUS CS 4.10 Operating light 4. Use the – and + keys to adjust the brightness of the operating light. LEDview S brightness LEDview S brightness The brightness of the LEDview S operating light can only be adjusted by the technician.
Page 144: Sivision Digital Video System
4 Operation Sirona Dental Systems GmbH 4.11 SIVISION digital video system Operating Instructions SINIUS / SINIUS CS 4.11 SIVISION digital video system SIVISION digital video system The SIVISION digital video system enables the acquisition of intraoral and extraoral images. The SiroCam AF intraoral camera generates digital image data which can be transmitted via a USB 2.0 port (high-speed...
Page 145 Sirona Dental Systems GmbH 4 Operation Operating Instructions SINIUS / SINIUS CS 4.11 SIVISION digital video system Attachment versions Monitor on lamp support tube The monitor can be rotated and swiveled. Monitor on tray arm The monitor can be rotated and swiveled.
Page 146: Sirocam Af Intraoral Camera
4 Operation Sirona Dental Systems GmbH 4.11 SIVISION digital video system Operating Instructions SINIUS / SINIUS CS 4.11.2 SIROCAM AF intraoral camera SIROCAM AF intraoral camera Safety information 4.11.2.1 Safety information The SiroCam AF intraoral camera is a sensitive optical instrument and must therefore always be handled with care.
Page 147: Connecting The Sirocam Af Intraoral Camera
Connecting the intraoral camera to the assistant element (only for SINIUS CS) If the treatment center is equipped with the SINIUS CS dentist element, the intraoral camera can be operated on the first instrument position of the assistant element. The camera connection is now located below the assistant element instead of the curing light connection.
Page 148: Operating Sirocam Af Intraoral Camera
4 Operation Sirona Dental Systems GmbH 4.11 SIVISION digital video system Operating Instructions SINIUS / SINIUS CS Removing the intraoral camera The plug of the intraoral camera is secured against unintentional removal. ➢ Grasp the plug by its locking devices A and pull this out without tilting, if possible.
Page 149 Sirona Dental Systems GmbH 4 Operation Operating Instructions SINIUS / SINIUS CS 4.11 SIVISION digital video system 4.11.2.4.2 Using the camera with SIDEXIS Besides the display and processing of X-ray images, SIDEXIS can be Using the camera with SIDEXIS used additionally as a video application for theSiroCam AF intraoral camera.
Page 150 4 Operation Sirona Dental Systems GmbH 4.11 SIVISION digital video system Operating Instructions SINIUS / SINIUS CS 4.11.2.4.3 Using the camera with SI Video Using SI video, up to four still images with the SiroCam AF intraoral Using the camera with SI Video camera can be generated.
Page 151: Technical Data
Sirona Dental Systems GmbH 4 Operation Operating Instructions SINIUS / SINIUS CS 4.11 SIVISION digital video system ✔ The intraoral camera must be removed to allow for operation via foot control. ➢ Press the right button of the foot control.
Page 152: Operation With A Pc
4 Operation Sirona Dental Systems GmbH 4.12 Operation with a PC Operating Instructions SINIUS / SINIUS CS 4.12 Operation with a PC The treatment center can be connected to a PC via an Ethernet cable. Operation with a PC The SIVISION and/or SIUCOM plus PC application allows for communication between the treatment center and the PC.
Page 153: Starting Pc Communication
Sirona Dental Systems GmbH 4 Operation Operating Instructions SINIUS / SINIUS CS 4.12 Operation with a PC 4.12.1.1 Starting PC communication Starting PC communication Opening the SIVISION program ✔ All PC applications which were started from the treatment center have been terminated.
Page 154: Communication With Microsoft Powerpoint
4 Operation Sirona Dental Systems GmbH 4.12 Operation with a PC Operating Instructions SINIUS / SINIUS CS Previous/next title Media Player control keys Stop playback Start/interrupt playback Mute Adjust volume 4.12.1.3 Communication with Microsoft PowerPoint ® ® For effective patient communication, Microsoft...
Page 155 Sirona Dental Systems GmbH 4 Operation Operating Instructions SINIUS / SINIUS CS 4.12 Operation with a PC Readiness for intraoral X-ray exposure Establishes readiness for an X-ray exposure. A SIDEXIS window then opens where the image type can be selected and the image can be described in detail.
Page 156: Usb Port
USB interface, only units of type BF CAUTION Only type BF medical devices according to IEC 60601-1, e.g. the Sirona XIOS USB intraoral X-ray system, may be connected to the USB port. USB interface, only units without power supply unit CAUTION USB devices with their own voltage supply (e.g., via a power supply unit)
Page 157: Configuration Of The Treatment Center (Setup)
Sirona Dental Systems GmbH 4 Operation Operating Instructions SINIUS / SINIUS CS 4.13 Configuration of the treatment center (setup) 4.13 Configuration of the treatment center (setup) Configuration of the treatment center (setup) Various treatment center functions can be individually configured via the Setup settings.
Page 158: Configuring The Easytouch User Interface
4 Operation Sirona Dental Systems GmbH 4.13 Configuration of the treatment center (setup) Operating Instructions SINIUS / SINIUS CS 4.13.2 Configuring the EasyTouch user interface EasyTouch user interface ➢ Touch the key in the setup program. Configuring the EasyTouch user interface ...
Page 159: Setting The Date And Time
Sirona Dental Systems GmbH 4 Operation Operating Instructions SINIUS / SINIUS CS 4.13 Configuration of the treatment center (setup) 4.13.3 Setting the date and time Date and time ➢ Touch the key in the setup program. Setting the date and time ...
Page 160: Configuring Control Options
4 Operation Sirona Dental Systems GmbH 4.13 Configuration of the treatment center (setup) Operating Instructions SINIUS / SINIUS CS 4.13.4 Configuring control options Configuring control options This program allows for the configuration of the entire treatment center operation. Control options ➢...
Page 161: Adjust Cleaning Agent Mixture For Chemical Suction Hose
Sirona Dental Systems GmbH 4 Operation Operating Instructions SINIUS / SINIUS CS 4.13 Configuration of the treatment center (setup) Start program operating mode ➢ Touch the key.  If the key is highlighted orange, the start program with instrument functions is displayed.
Page 162: Linking The Headrest Tilt To The 4-Way Foot Switch
4 Operation Sirona Dental Systems GmbH 4.13 Configuration of the treatment center (setup) Operating Instructions SINIUS / SINIUS CS Spray aspirator ➢ Touch the key.  If the key is highlighted orange, the removed spray aspirator can be switched on/off with the 4-way foot switch.
Page 163: 10Linking The Tumbler Heater To The Chair Program
Sirona Dental Systems GmbH 4 Operation Operating Instructions SINIUS / SINIUS CS 4.13 Configuration of the treatment center (setup) Changing setup program page ➢ Change to the next setup program page. Changing setup program page Linking the tumbler heater to the chair program 4.13.4.10...
Page 164: 12Switching The Sensor Control Of The Ledview Operating Light
4 Operation Sirona Dental Systems GmbH 4.13 Configuration of the treatment center (setup) Operating Instructions SINIUS / SINIUS CS 4.13.4.12 Switching the sensor control of the LEDview operating light on/off and adjusting it Switching the sensor control of the LEDview operating light on/off and adjusting it A contactless switch is installed at the bottom of the LEDview operating light.
Page 165: Configure Instruments
Sirona Dental Systems GmbH 4 Operation Operating Instructions SINIUS / SINIUS CS 4.13 Configuration of the treatment center (setup) 4.13.5 Configure instruments Instruments ➢ Touch the key in the setup program. Configure instruments  The sub-screen opens. 4.13.5.1 Preselecting quick setting keys with SaveMode/with DropMode or...
Page 166: Showing/Hiding The External Hf Unit Adjustment Key
4 Operation Sirona Dental Systems GmbH 4.13 Configuration of the treatment center (setup) Operating Instructions SINIUS / SINIUS CS 4.13.5.3 Showing/hiding the external HF unit adjustment key Showing/hiding the external HF unit adjustment key External HF units may disturb the treatment center and the SIVISION External HF units monitor.
Page 167: Configuring The Network Connection
Sirona Dental Systems GmbH 4 Operation Operating Instructions SINIUS / SINIUS CS 4.13 Configuration of the treatment center (setup) 4.13.6 Configuring the network connection Network connection ➢ Touch the key in the setup program. Configuring the network connection Network connection ...
Page 168: Care, Cleaning And Maintenance By The Practice Team
5 Care, cleaning and maintenance by the practice team Sirona Dental Systems GmbH 5.1 Basics Operating Instructions SINIUS / SINIUS CS Care, cleaning and maintenance by the practice team Care, cleaning and maintenance by the practice team Basics Basics 5.1.1...
Page 169 Sirona Dental Systems GmbH 5 Care, cleaning and maintenance by the practice team Operating Instructions SINIUS / SINIUS CS 5.1 Basics Daily Automatically purge water lines (autopurge function) [ → 182] Rinsing water lines [ → 179] Cleaning vacuum system using adapter in the cuspidor bowl [ → 193] (when chemical suction hose cleaning option is not available) Clean and thermally disinfect the suction hoses [ →...
Page 170: Care And Cleaning Agents
5 Care, cleaning and maintenance by the practice team Sirona Dental Systems GmbH 5.1 Basics Operating Instructions SINIUS / SINIUS CS 5.1.2 Care and cleaning agents Care and cleaning agents CAUTION: Approved care and cleaning agents NOTICE Approved care and cleaning agents...
Page 171 35°C/95°F. 7. Count all germs found on the surface of the tester. Link to sanitizing the treatment center, SINIUS/SINIUS CS If the number of germs significantly exceeds 100, then sanitation is required; see "Sanitizing the treatment center" [ → 207].
Page 172: Surfaces
Care and cleaning agents NOTICE Approved care and cleaning agents Use only care and cleaning agents which have been approved by Sirona (see "Care and cleaning agents" [ → 170]). Clean 1. Press and hold the fixed key on the dentist element.
Page 173: Disinfecting Handles
Care and cleaning agents NOTICE Approved care and cleaning agents Use only care and cleaning agents which have been approved by Sirona (see "Care and cleaning agents" [ → 170]). The handles on the instrument holder of the dentist and assistant element can be spray, wipe and thermally disinfected.
Page 174: Disinfecting The Tray
The handle locks in place independently when slided again. 5.2.4 Disinfecting the tray Disinfecting the tray The tray on the support arm and on the SINIUS CS dentist element can be detached for minimal cleaning or thermal disinfection. Care and cleaning agents NOTICE...
Page 175: Disinfect, Clean And Care For The Upholstery
NOTICE Approved care and cleaning agents Use only care and cleaning agents which have been approved by Sirona for the upholstery; see "Care and cleaning agents" [ → 170]! The upholstery of the patient couch and the headrest can be spray and wipe disinfected.
Page 176: Disinfecting The Instrument Holder Of The Dentist Element
5 Care, cleaning and maintenance by the practice team Sirona Dental Systems GmbH 5.2 Surfaces Operating Instructions SINIUS / SINIUS CS 5.2.6 Disinfecting the instrument holder of the dentist element Disinfecting the instrument holder of the dentist element SINIUS dentist element The instrument holder can be removed for easier cleaning or thermal disinfection.
Page 177: Thermally Disinfect The Instrument Holder Of The Assistant Element
Sirona Dental Systems GmbH 5 Care, cleaning and maintenance by the practice team Operating Instructions SINIUS / SINIUS CS 5.2 Surfaces Removing the holder 1. To do this, remove all instruments one after the other and allow these to overhang in front of the dentist element.
Page 178: Clean The Foot Control
5 Care, cleaning and maintenance by the practice team Sirona Dental Systems GmbH 5.2 Surfaces Operating Instructions SINIUS / SINIUS CS Inserting the instrument holder 1. First insert the rear edge of the instrument holder into the groove on the assistant element. Then fold the holder forward and downward.
Page 179: Instruments And Instrument Hoses
Sirona Dental Systems GmbH 5 Care, cleaning and maintenance by the practice team Operating Instructions SINIUS / SINIUS CS 5.3 Instruments and instrument hoses Instruments and instrument hoses Instruments and instrument hoses 5.3.1 Rinsing water lines Rinsing water lines Microorganisms can grow in the water lines of the treatment center. Use a large amount of water for rinsing the lines prior to starting patient appointments.
Page 180 5 Care, cleaning and maintenance by the practice team Sirona Dental Systems GmbH 5.3 Instruments and instrument hoses Operating Instructions SINIUS / SINIUS CS Purge function 2. Touch the key. Purge  The screen is displayed on the touchscreen. Setting the purge time and starting the purge function The purge time of the removed instruments can be set between 20 and 120 seconds.
Page 181 1. Remove the instruments to be purged from the holder. In the case of SINIUS CS: Move the swivel arms of the instruments to be purged into their functioning position so that the weight of the instrument hoses secures them in place.
Page 182: Automatically Purge Water Lines (Autopurge Function)
5 Care, cleaning and maintenance by the practice team Sirona Dental Systems GmbH 5.3 Instruments and instrument hoses Operating Instructions SINIUS / SINIUS CS 5.3.3 Automatically purge water lines (autopurge function) Automatically purge water lines (autopurge function) The autopurge function enables automatic purging of all water-carrying...
Page 183 Sirona Dental Systems GmbH 5 Care, cleaning and maintenance by the practice team Operating Instructions SINIUS / SINIUS CS 5.3 Instruments and instrument hoses Autopurge  The screen is displayed on the touchscreen. Setting the instrument purge time and starting the autopurge function The purge time of the instruments may be set between 60 and 180 seconds.
Page 184 (for SPRAYVIT M: valve lever facing up, locking button facing down). For SINIUS CS: Move the swivel arm of the instruments to be purged into the operating position so that the weight of the instrument hoses allows it to remain in this position.
Page 185 Sirona Dental Systems GmbH 5 Care, cleaning and maintenance by the practice team Operating Instructions SINIUS / SINIUS CS 5.3 Instruments and instrument hoses IMPORTANT Pinching of the instrument hoses Be careful not to pinch the instrument hoses when inserting the instruments.
Page 186 5 Care, cleaning and maintenance by the practice team Sirona Dental Systems GmbH 5.3 Instruments and instrument hoses Operating Instructions SINIUS / SINIUS CS Following the purging process and suction hose cleaning, the display Deposit instruments appears. You now can now continue in one of two ways: ●...
Page 187: Care For, Disinfect And Sterilize The Treatment Instruments
Care and cleaning agents NOTICE Approved care and cleaning agents Use only care and cleaning agents which have been approved by Sirona (see "Care and cleaning agents" [ → 170]). Disconnect the mucosal electrode from the connection cable. The metal hook can be sterilized, and the connection cable can be disinfected by wiping.
Page 188: Disinfecting/Sterilizing Mini L.e.d. Curing Light
Care and cleaning agents NOTICE Approved care and cleaning agents Use only care and cleaning agents which have been approved by Sirona (see "Care and cleaning agents" [ → 170]). 1. Removing the connection cable of the Mini L.E.D. by turning the 134°C 273,2°F...
Page 189: Check The Flow Rate On The Sprayvit M Multifunctional Syringe
Sirona Dental Systems GmbH 5 Care, cleaning and maintenance by the practice team Operating Instructions SINIUS / SINIUS CS 5.3 Instruments and instrument hoses Intraoral camera, lens window NOTICE The lens window is sensitive to scratches. Deep scratches in the lens window impair image quality.
Page 190: Changing The Cotton Wool Roll On The High-Speed Handpiece Hose And Oil Collector
5 Care, cleaning and maintenance by the practice team Sirona Dental Systems GmbH 5.3 Instruments and instrument hoses Operating Instructions SINIUS / SINIUS CS 5.3.5 Changing the cotton wool roll on the high-speed handpiece hose and oil collector Changing the cotton wool roll on the high-speed handpiece hose and oil collector Return air containing a small amount of high-speed handpiece oil is emitted at the unit end of the high-speed handpiece hose.
Page 191 Operating Instructions SINIUS / SINIUS CS 5.3 Instruments and instrument hoses Oil collector The SINIUS CS dentist element is additionally equipped with an oil collector. It is located below the instrument connections and collects emerging liquids. 1. Remove the instrument holder from the dentist element, as described above.
Page 192: Vacuum System
5 Care, cleaning and maintenance by the practice team Sirona Dental Systems GmbH 5.4 Vacuum system Operating Instructions SINIUS / SINIUS CS Vacuum system Vacuum system 5.4.1 Cleaning the suction hoses Cleaning the suction hoses The vacuum system is subjected to septic secretions, saliva and blood daily.
Page 193: Cleaning Vacuum System Using Cleaning Adapter In The Cuspidor
Care and cleaning agents NOTICE Approved care and cleaning agents Use only care and cleaning agents which have been approved by Sirona (see "Care and cleaning agents" [ → 170]). Vacuum system, foaming cleaning agents NOTICE Domestic cleaning agents foam up.
Page 194 5 Care, cleaning and maintenance by the practice team Sirona Dental Systems GmbH 5.4 Vacuum system Operating Instructions SINIUS / SINIUS CS Preparation for cleaning 1. Prepare 1 liter of cleaning solution in a separate container according to the manufacturer's instructions and mix it thoroughly.
Page 195: Sterilize And Disinfect The Suction Handpieces
Sirona Dental Systems GmbH 5 Care, cleaning and maintenance by the practice team Operating Instructions SINIUS / SINIUS CS 5.4 Vacuum system 5.4.3 Sterilize and disinfect the suction handpieces Sterilize and disinfect the suction handpieces Sterilization/disinfection All parts of the suction handpieces can be sterilized and thermally disinfected.
Page 196 5 Care, cleaning and maintenance by the practice team Sirona Dental Systems GmbH 5.4 Vacuum system Operating Instructions SINIUS / SINIUS CS Amalgam residues, amalgam rotor and sediment container CAUTION Amalgam residues must not enter the public sewage system. Amalgam is a mercury compound that is hazardous to water.
Page 197: Thermodisinfecting Suction Hoses
Sirona Dental Systems GmbH 5 Care, cleaning and maintenance by the practice team Operating Instructions SINIUS / SINIUS CS 5.4 Vacuum system 5.4.5 Thermodisinfecting suction hoses The hoses the treatment center is equipped with as a standard feature Thermodisinfecting suction hoses 93°C 197°F...
Page 198: Components Of The Water Unit
This can cause damage to the suction machine. ➢ Use only care and cleaning agents which have been approved by Sirona, see "Care and cleaning agents" [ → 170]. The cuspidor bowl is attached to the water unit via a bayonet catch and can be removed for thorough cleaning.
Page 199: Cleaning The Outlet Lines Of The Cuspidor
Care and cleaning agents NOTICE Approved care and cleaning agents Use only care and cleaning agents which have been approved by Sirona (see "Care and cleaning agents" [ → 170]). Vacuum system, foaming cleaning agents NOTICE Domestic cleaning agents foam up.
Page 200: Refilling Dentosept P Disinfectant
Care and cleaning agents for water lines NOTICE Approved care and cleaning agents Use only disinfectants which have been approved for water lines by Sirona for the disinfection system; see "Care and cleaning agents" [ → 170]! 63 22 726 D3561 D3561.201.01.03.02 05.2012...
Page 201: Change The Water And Air Filters
Sirona Dental Systems GmbH 5 Care, cleaning and maintenance by the practice team Operating Instructions SINIUS / SINIUS CS 5.5 Components of the water unit 5.5.5 Change the water and air filters Change the water and air filters If you notice any changes in media flows, check the water and air filters for permeability.
Page 202 5 Care, cleaning and maintenance by the practice team Sirona Dental Systems GmbH 5.5 Components of the water unit Operating Instructions SINIUS / SINIUS CS Amalgam rotor, disposal IMPORTANT Disposal of the amalgam rotor When a replacement rotor is supplied, a package for the return shipment of the filled amalgam rotor is attached.
Page 203: Emptying The Sediment Container
6. Place the container in the special packaging and ship it for disposal or authorize a certified waste management company. Installing the amalgam rotor Use only original Sirona accessories. Never use a used or recycled amalgam rotor. To reorder the amalgam rotor, see "Spare parts and consumables"...
Page 204 5 Care, cleaning and maintenance by the practice team Sirona Dental Systems GmbH 5.5 Components of the water unit Operating Instructions SINIUS / SINIUS CS Cleaning agent tank option available Cleaning the vacuum system The sediment container is subjected to septic secretions, saliva and blood.
Page 205: Cleaning The Filter Insert Of The Wet Suction Device
Sirona Dental Systems GmbH 5 Care, cleaning and maintenance by the practice team Operating Instructions SINIUS / SINIUS CS 5.5 Components of the water unit 5.5.8 Cleaning the filter insert of the wet suction device Cleaning the filter insert of the wet suction device The automatic separator and amalgam separator or sediment container are not installed in the water unit for wet suction.
Page 206 5 Care, cleaning and maintenance by the practice team Sirona Dental Systems GmbH 5.5 Components of the water unit Operating Instructions SINIUS / SINIUS CS Removing and cleaning the filter insert Wet suction NOTICE The flushing and tumbler filling functions can be activated when the filter housing is open.
Page 207: Sanitation
Sirona Dental Systems GmbH 5 Care, cleaning and maintenance by the practice team Operating Instructions SINIUS / SINIUS CS 5.6 Sanitation Sanitation Sanitation 5.6.1 Sanitize the treatment center Sanitize the treatment center Sanitation effectively combats the reproduction of microorganisms in the water lines.
Page 208 5 Care, cleaning and maintenance by the practice team Sirona Dental Systems GmbH 5.6 Sanitation Operating Instructions SINIUS / SINIUS CS Opening the sanitation screen via touchscreen ✔ Start program is displayed on the touchscreen. Start program without instrument functions Sub- 1.
Page 209 Sirona Dental Systems GmbH 5 Care, cleaning and maintenance by the practice team Operating Instructions SINIUS / SINIUS CS 5.6 Sanitation Starting sanitation Start ➢ Touch the key.  The sanitation process starts. Error message: Refill with DENTOSEPT P disinfectant...
Page 210 (for SPRAYVIT M: valve lever facing up, locking button facing down). For SINIUS CS: Move the swivel arm of the instruments to be purged into the operating position so that the weight of the instrument hoses allows it to remain in this position.
Page 211 Sirona Dental Systems GmbH 5 Care, cleaning and maintenance by the practice team Operating Instructions SINIUS / SINIUS CS 5.6 Sanitation IMPORTANT Pinching of the instrument hoses Be careful not to pinch the instrument hoses when inserting the instruments. If the hoses are pinched, the water flow will be obstructed during purging.
Page 212 5 Care, cleaning and maintenance by the practice team Sirona Dental Systems GmbH 5.6 Sanitation Operating Instructions SINIUS / SINIUS CS Sanitation phase 3 – Treating water lines with DENTOSEPT P disinfectant The water is pumped out of the water tank of the water unit via the tumbler filler.
Page 213 Sirona Dental Systems GmbH 5 Care, cleaning and maintenance by the practice team Operating Instructions SINIUS / SINIUS CS 5.6 Sanitation 2. If you want to exclude the instruments from sanitation, touch the Exclude instrument key.  Connected instruments will not be rinsed in sanitation phase 5.
Page 214: Display Sanitation Report
5 Care, cleaning and maintenance by the practice team Sirona Dental Systems GmbH 5.6 Sanitation Operating Instructions SINIUS / SINIUS CS 5.6.2 Display sanitation report Display sanitation report Sanitation processes with a reaction time of at least 24 hours are logged by the treatment center.
Page 215: Foot Control And Connection Box
Sirona Dental Systems GmbH 5 Care, cleaning and maintenance by the practice team Operating Instructions SINIUS / SINIUS CS 5.7 Foot control and connection box Foot control and connection box Foot control and connection box 5.7.1 Changing the battery of the wireless foot control The wireless foot control is powered by a battery.
Page 216: Changing The Fuse Of The External Device Connection
5 Care, cleaning and maintenance by the practice team Sirona Dental Systems GmbH 5.7 Foot control and connection box Operating Instructions SINIUS / SINIUS CS Assembling the foot control 1. Mount the switch part (C) on the foot control. 2. Remove the screws (A) from the bottom of the foot control.
Page 217: Maintenance By The Service Engineer
Sirona Dental Systems GmbH 6 Maintenance by the service engineer Operating Instructions SINIUS / SINIUS CS 6.1 Inspection and maintenance Maintenance by the service engineer Maintenance by the service engineer Inspection and maintenance Inspection and maintenance In order to ensure the operational safety and reliability of your treatment center and to avoid damage due to natural wear, annual inspection and maintenance must be performed on your treatment center.
Page 218: Maintenance Manual
6 Maintenance by the service engineer Sirona Dental Systems GmbH 6.3 Maintenance Manual Operating Instructions SINIUS / SINIUS CS Maintenance Manual Maintenance Manual Keep this Maintenance Manual near your treatment center. Documentation of the maintenance Any inspection and maintenance work as well as all safety tests are documented by the service engineer in the Maintenance Manual.
Page 219: Malfunctions
Sirona Dental Systems GmbH 7 Malfunctions Operating Instructions SINIUS / SINIUS CS 7.1 Error messages Malfunctions Malfunctions Error messages Any error states of the treatment center that cannot be immediately Error messages recognized by the user and must nevertheless be corrected are displayed on the touchscreen.
Page 220: Remote Diagnosis
7 Malfunctions Sirona Dental Systems GmbH 7.2 Remote diagnosis Operating Instructions SINIUS / SINIUS CS Code Error/fault Description Action The flushing tank is empty It was detected that the flushing tank Change the water filter, see had not been filled. Flushing of the "Changing the water and air...
Page 221: Spare Parts And Consumables
A spray aspirator from the Dürr Dental company is attached to the treatment unit on delivery. It can be ordered from a specialized dealer. Oil collector Oil collector for SINIUS CS dentist element REF 63 31 180 Air and water filters...
Page 222 8 Spare parts and consumables Sirona Dental Systems GmbH Operating Instructions SINIUS / SINIUS CS Fuses Fuse for the external device connection 100 VDC 230 VAC (T 6.3 A, 250 VAC) REF 10 77 452 Miscellaneous Ball stopper, for product...
Page 223: Disposal
Sirona Dental Systems GmbH 9 Disposal Operating Instructions SINIUS / SINIUS CS Disposal Your product is marked with the adjacent symbol. Within the European Disposal Economic Area, this product is subject to Directive 2002/96/EC as well as the corresponding national laws. This directive requires environmentally sound recycling/disposal of the product.
Page 224 9 Disposal Sirona Dental Systems GmbH 9.1 Battery disposal Operating Instructions SINIUS / SINIUS CS Battery disposal Note for disposal company: Battery disposal Prior to disposal, remove the following batteries from the treatment center: ● Battery in the wireless foot control ●...
Page 225: Overview Of All Function Keys
Sirona Dental Systems GmbH 10 Overview of all function keys Operating Instructions SINIUS / SINIUS CS 10.1 Fixed keys Overview of all function keys Overview of all function keys For operating instructions The following contains a brief description of the fixed keys on the dentist...
Page 226 10 Overview of all function keys Sirona Dental Systems GmbH 10.1 Fixed keys Operating Instructions SINIUS / SINIUS CS Composite function Switches the composite setting for the operating light on/off. This function is required to prevent the premature curing of composite fillings.
Page 227 Sirona Dental Systems GmbH 10 Overview of all function keys Operating Instructions SINIUS / SINIUS CS 10.2 Start program 10.1.2 Assistant element Tumbler filling Assistant element on/off Flushing of the cuspidor bowl on/off Operating light/Composite function Switches the operating light on/off.
Page 228 10 Overview of all function keys Sirona Dental Systems GmbH 10.2 Start program Operating Instructions SINIUS / SINIUS CS Selecting a user profile A stored user profile can be selected for up to six different users (A to F). X-ray viewer...
Page 229 Sirona Dental Systems GmbH 10 Overview of all function keys Operating Instructions SINIUS / SINIUS CS 10.3 Instrument program 10.3 Instrument program Speed quick setting keys Instrument program Used to select preset or intermediate rotational speed settings BL, BL ISO C and BL Implant motors: min. 90 rpm, max. 40,000 rpm BL ISO S motor: min.
Page 230 10 Overview of all function keys Sirona Dental Systems GmbH 10.4 Treatment program Operating Instructions SINIUS / SINIUS CS Preselect air coolant Used to cool the treatment area with air Preselect NaCl coolant Cooling of the treatment area with sterile saline solution...
Page 231 Sirona Dental Systems GmbH 10 Overview of all function keys Operating Instructions SINIUS / SINIUS CS 10.4 Treatment program 10.4.2 Endodontics Calibrating the burr drive Endodontics A calibration must be performed each time you change or lubricate the contra-angle handpiece.
Page 232 10 Overview of all function keys Sirona Dental Systems GmbH 10.5 Other dialogs Operating Instructions SINIUS / SINIUS CS Delete endodontic treatment Removes individual endodontic treatments from the treatment list. Adding a file system For importing stored file systems to the endodontic treatment list.
Page 233 Sirona Dental Systems GmbH 10 Overview of all function keys Operating Instructions SINIUS / SINIUS CS 10.6 SIVISION program 10.5.5 Flushing settings screen Link flushing to mouth rinsing position S Flushing settings screen Following movement to mouth rinsing position S, the flushing function automatically switches on for the duration of the set flushing time.
Page 234 10 Overview of all function keys Sirona Dental Systems GmbH 10.6 SIVISION program Operating Instructions SINIUS / SINIUS CS Full frame The active image window is enlarged so that it covers the entire display area. The control elements of the SIDEXIS user interface are not concealed in the process.
Page 235 Sirona Dental Systems GmbH 10 Overview of all function keys Operating Instructions SINIUS / SINIUS CS 10.6 SIVISION program Smooth image To mitigate high-contrast or high-interference effects in images, the contrast between neighboring pixels is reduced or averaged. The overall definition of the image is reduced.
Page 236 10 Overview of all function keys Sirona Dental Systems GmbH 10.7 Setup program Operating Instructions SINIUS / SINIUS CS 10.7 Setup program Setup program 10.7.1 User interface Configuring the user interface User interface User Interface Opens the setup program. Key tone A setting can be made to activate or deactivate an acoustic signal that sounds when the operator touches a key on the touchscreen.
Page 237 Sirona Dental Systems GmbH 10 Overview of all function keys Operating Instructions SINIUS / SINIUS CS 10.7 Setup program patient chair and the instruments in a separate screen. The operating Start program with instrument functions mode displays the functions of the patient chair and the instruments which are most important for the treatment in the same screen.
Page 238 10 Overview of all function keys Sirona Dental Systems GmbH 10.7 Setup program Operating Instructions SINIUS / SINIUS CS Open next program page Tumbler heater A setting can be made so thatthe tumbler heater automatically switches off when the entry/exit position (0) chair program is activated. The tumbler heater switches back on as soon as the patient chair leaves the entry/exit position.
Page 239: Network Connection
Sirona Dental Systems GmbH 10 Overview of all function keys Operating Instructions SINIUS / SINIUS CS 10.7 Setup program External HF unit key External HF units may disturb the treatment center and the SIVISION External HF units monitor. It is therefore possible to hide the...
Page 240: Index
Sirona Dental Systems GmbH Operating Instructions SINIUS / SINIUS CS Index Numerics Assistant element Instrument positions, 39 4-way foot control plate, 55, 58 Maximum load capacity, 125 4-way foot switch, 161 Mini LED, 130, 188 Overview, 39 SPRAYVIT, 107, 189...
Page 241 Sirona Dental Systems GmbH Operating Instructions SINIUS / SINIUS CS Care and cleaning agents Height adjustment, 74 approved care and cleaning agents, 170 Instrument holder, 176 Download of updated list, 170, 221 Instrument positions, 34 Care and cleaning instructions, 168...
Page 242 Sirona Dental Systems GmbH Operating Instructions SINIUS / SINIUS CS External PC, 19, 152 Operate, 54 Extract residual water, 205 Overview, 31 Spray/NaCl, 55 Standards/approvals, 23 FCC, 23 Wireless interface (wireless foot control), 25 File clamp, 94 Footer, 52, 52...
Page 243 Sirona Dental Systems GmbH Operating Instructions SINIUS / SINIUS CS Instruments Afterblow, 165 Japanese flag, 138 Automatic purging (Autopurge function), 182 Ball stopper, 86 Care and cleaning, 187 Key color, 48 Clockwise/counterclockwise rotation, 55 Key tone, 158 Configuring, 165 Keys, missing, 48, 157...
Page 244 Sirona Dental Systems GmbH Operating Instructions SINIUS / SINIUS CS Memory key, 165 Safety switch, 61 Metal oxide blasting device, 17 Shock positioning, 72 Microbiological control, 170 Patient couch, 71 Mini LED, 130, 188 PC, 19, 152, 167 Minimum PC requirements, 25...
Page 245 Sirona Dental Systems GmbH Operating Instructions SINIUS / SINIUS CS Service, 13 Suction hoses, 192, 195, 197 Settings screen, 52 Support arm, 139, 174 Setup key, 81, 108, 157 Surfaces, 172 Shock positioning, 72, 78 Surgical suction, 128, 195 SI video, 150...
Page 246 Sirona Dental Systems GmbH Operating Instructions SINIUS / SINIUS CS Vacuum system, 193 Blasting device, 17 Cleaning, 161, 192 Disinsfection, 197 Filter, 195 Ventilation holes on the spray aspirator, 128 Ventilation slots, 18 Warning triangle, 219 Warranty, 13, 217 Water connection external device, 43...
Page 248 tÉ=êÉëÉêîÉ=íÜÉ=êáÖÜí=íç=ã~âÉ=~åó=~äíÉê~íáçåë=ïÜáÅÜ=ã~ó=ÄÉ=êÉèìáêÉÇ=ÇìÉ=íç=íÉÅÜåáÅ~ä=áãéêçîÉãÉåíëK «=páêçå~=aÉåí~ä=póëíÉãë=dãÄe=OMNO péê~ÅÜÉW ÉåÖäáëÅÜ mêáåíÉÇ=áå=dÉêã~åó aPRSNKOMNKMNKMPKMO MRKOMNO ûKJkêKW= NNR=QST páêçå~=aÉåí~ä=póëíÉãë=dãÄe áå=íÜÉ=rp^W SP=OO=TOS=aPRSN c~Äêáâëíê~≈É=PN páêçå~=aÉåí~ä=póëíÉãë=ii` lêÇÉê=kç SQSOR=_ÉåëÜÉáã QUPR=páêçå~=aêáîÉI=pìáíÉ=NMM dÉêã~åó `Ü~êäçííÉI=k`=OUOTP ïïïKëáêçå~KÅçã...

This manual is also suitable for:

Sinius

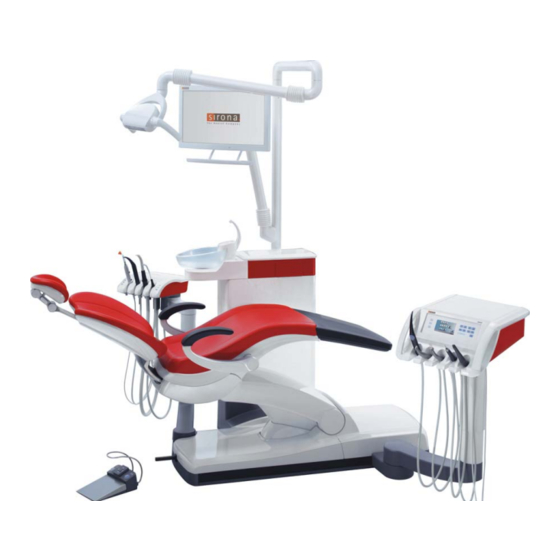

Sirona Sinius CS Operating Instructions Manual

1 General Information

2 Safety Instructions

3 Unit Description

4 Operation

6 Maintenance by the Service Engineer

7 Malfunctions

8 Spare Parts and Consumables

9 Disposal

10 Overview of All Function Keys

Quick Links

Need help?

Questions and answers

Related Manuals for Sirona Sinius CS

Summary of Contents for Sirona Sinius CS
