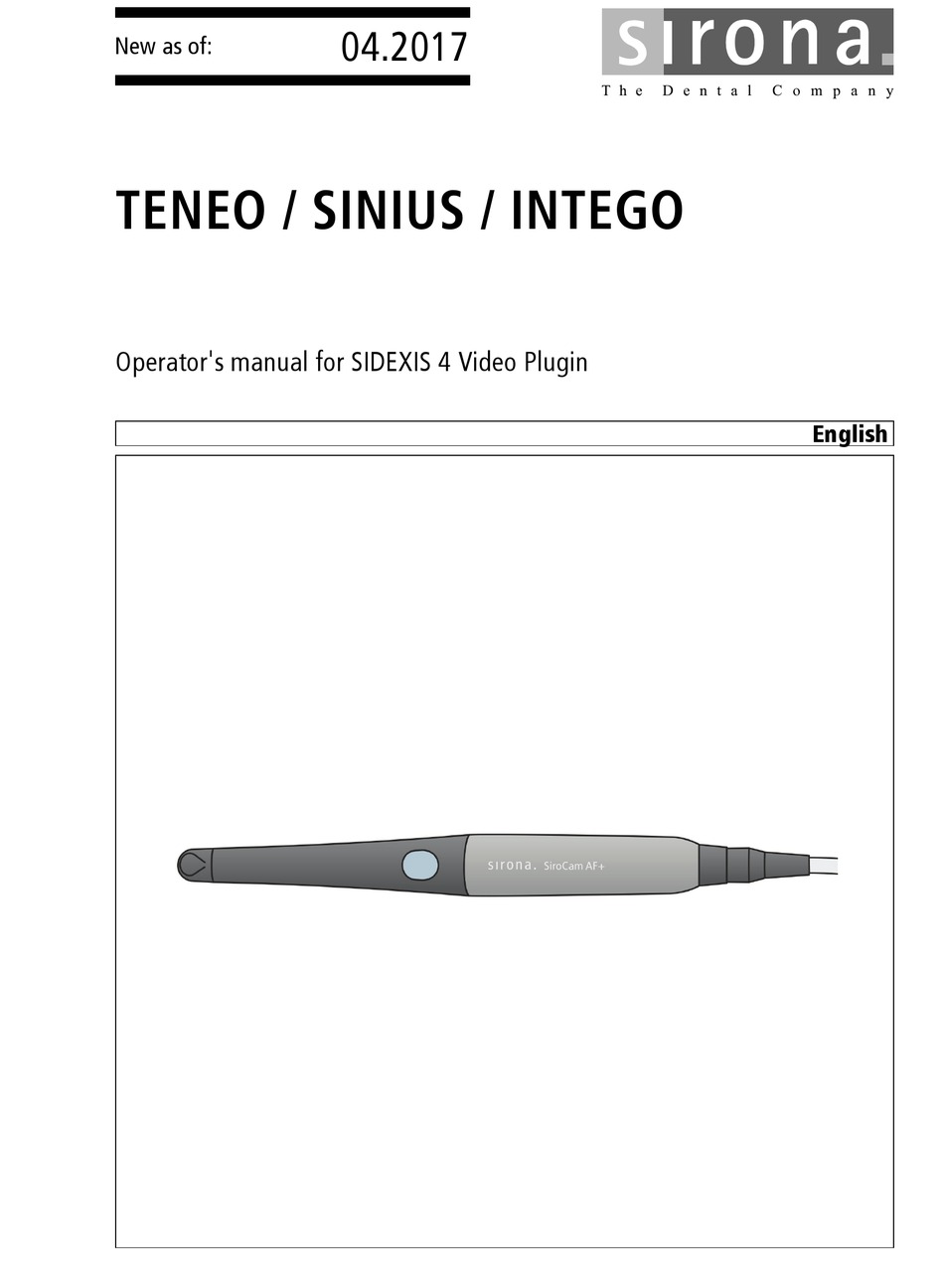

- Page 1 MQKOMNT kÉï=~ë=çÑW= qbkbl=L=pfkfrp=L=fkqbdl léÉê~íçêDë=ã~åì~ä=Ñçê=pfabufp=Q=sáÇÉç=mäìÖáå båÖäáëÜ Cover page...
-
Page 2: Table Of Contents
Table of Contents Sirona Dental Systems GmbH Operator's manual for SIDEXIS 4 Video Plugin TENEO / SINIUS / INTEGO Table of Contents Description of plugin....................Functionalities ....................Supported intraoral cameras ................. Installation ........................ Prerequisites ....................Calling up the installation wizard .............. -
Page 3: Description Of Plugin
Sirona Dental Systems GmbH 1 Description of plugin Operator's manual for SIDEXIS 4 Video Plugin TENEO / SINIUS / INTEGO 1.1 Functionalities Description of plugin Functionalities The Video plugin includes the following functionalities: ● Presentation of live images and still images from an intraoral camera in Sidexis 4 ●... -
Page 4: Installation
2 Installation Sirona Dental Systems GmbH 2.1 Prerequisites Operator's manual for SIDEXIS 4 Video Plugin TENEO / SINIUS / INTEGO Installation Prerequisites ● Sidexis 4 is installed. ● SIUCOM Plus is installed. ● SIVISION connect is installed. Calling up the installation wizard 1. -
Page 5: To Install The Video Plugin
Sirona Dental Systems GmbH 2 Installation Operator's manual for SIDEXIS 4 Video Plugin TENEO / SINIUS / INTEGO 2.3 To install the video plugin To install the video plugin 1. In the installation wizard, click on Additional components. 2. Click the Video module button in the window that appears. - Page 6 2 Installation Sirona Dental Systems GmbH 2.3 To install the video plugin Operator's manual for SIDEXIS 4 Video Plugin TENEO / SINIUS / INTEGO A confirmation message window appears once the installation has completed 4. Click on the Finish button. The video plugin is installed.
-
Page 7: Operation
Sirona Dental Systems GmbH 3 Operation Operator's manual for SIDEXIS 4 Video Plugin TENEO / SINIUS / INTEGO 3.1 Select camera Operation Select camera 3.1.1 Selecting SIVISION digital intraoral cameras 1. Start Sidexis 4. 2. Click on the toothed wheel icon (A) in the header line of the software. -
Page 8: Selecting And Configuring Third-Party Cameras
3 Operation Sirona Dental Systems GmbH 3.1 Select camera Operator's manual for SIDEXIS 4 Video Plugin TENEO / SINIUS / INTEGO 3.1.2 Selecting and configuring third-party cameras Third-party cameras connected via USB and USB video grabber can be selected and configured. Selecting a third-party camera 1. -
Page 9: Operator's Manual For Sidexis 4 Video Plugin Teneo / Sinius / Intego
Sirona Dental Systems GmbH 3 Operation Operator's manual for SIDEXIS 4 Video Plugin TENEO / SINIUS / INTEGO 3.1 Select camera Configuring a third-party camera In the Settings region (D), the following options are available for the selected camera: ● Properties button Set the camera-specific parameters appearing in the dialog box (e.g. -
Page 10: Options For The Video Plugin
3 Operation Sirona Dental Systems GmbH 3.2 Options for the Video plugin Operator's manual for SIDEXIS 4 Video Plugin TENEO / SINIUS / INTEGO Options for the Video plugin 1. Start Sidexis 4. 2. Click on the toothed wheel icon (A) in the header line of the software. -
Page 11: To Display And Close Live Images
Sirona Dental Systems GmbH 3 Operation Operator's manual for SIDEXIS 4 Video Plugin TENEO / SINIUS / INTEGO 3.3 To display and close live images To display and close live images 1. Start Sidexis 4. 2. Select a patient. 3. For SIVISION digital intraoral cameras: Remove the intraoral camera from the holder. -
Page 12: Generate And Display A Still Image
3 Operation Sirona Dental Systems GmbH 3.4 Generate and display a still image Operator's manual for SIDEXIS 4 Video Plugin TENEO / SINIUS / INTEGO Generate and display a still image Generate a still image NOTE: There are several options for focusing the camera. See also:... - Page 13 Sirona Dental Systems GmbH 3 Operation Operator's manual for SIDEXIS 4 Video Plugin TENEO / SINIUS / INTEGO 3.4 Generate and display a still image Display a still image ✔ The camera is in the storage tray. 1. Click on a thumbnail in the bar (A).
-
Page 14: Save Or Discard Still Images In Sidexis
Sirona Dental Systems GmbH 3.5 Save or discard still images in Sidexis 4 Operator's manual for SIDEXIS 4 Video Plugin TENEO / SINIUS / INTEGO Save or discard still images in Sidexis 4 Highlight still images for saving in Sidexis 4 ➢... -
Page 15: Known Limitations
Sirona Dental Systems GmbH 4 Known limitations Operator's manual for SIDEXIS 4 Video Plugin TENEO / SINIUS / INTEGO Known limitations Power options / screen savers Using power saving options or screen savers on the PC may lead to malfunctions if actions are triggered from the treatment center while the sleep options are active. -
Page 16: Corrective Action
5 Corrective action Sirona Dental Systems GmbH Operator's manual for SIDEXIS 4 Video Plugin TENEO / SINIUS / INTEGO Corrective action Possible sources of error 1. Intraoral camera is not connected to the SIDEXIS PC. Solution: Connect the intraoral camera to the SIDEXIS PC. - Page 18 tÉ=êÉëÉêîÉ=íÜÉ=êáÖÜí=íç=ã~âÉ=~åó=~äíÉê~íáçåë=ïÜáÅÜ=ã~ó=ÄÉ=êÉèìáêÉÇ=ÇìÉ=íç=íÉÅÜåáÅ~ä=áãéêçîÉãÉåíëK «=páêçå~=aÉåí~ä==póëíÉãë=dãÄe péê~ÅÜÉW ÉåÖäáëÅÜ mêáåíÉÇ=áå=dÉêã~åó aPRMVKOMUKMNKMPKMO MQKOMNT ûKJkêKW= NOP=UNR páêçå~=aÉåí~ä=póëíÉãë=dãÄe `çåí~Åí=áå=íÜÉ=rp^W páêçå~=aÉåí~äI=fåÅK SQ=VP=OMQ=aPRMV c~Äêáâëíê~≈É=PN QUPR=páêçå~=aêáîÉ lêÇÉê=kç SQSOR=_ÉåëÜÉáã `Ü~êäçííÉI=k`=OUOTP dÉêã~åó ïïïKëáêçå~KÅçã...
