CHAPTER 3: INSTALLATION
3.2

Typical Wiring

3.2.1 Description
3.2.2 Rear Terminal Layout
745 TRANSFORMER PROTECTION SYSTEM – INSTRUCTION MANUAL
The 745 contains numerous built-in features that allow for a broad range of applications.
As such, it is not possible to present connections for all possible schemes. The information
in this section covers the important aspects of interconnections, in the general areas of
instrument transformer inputs, other inputs, outputs, communications, and grounding.

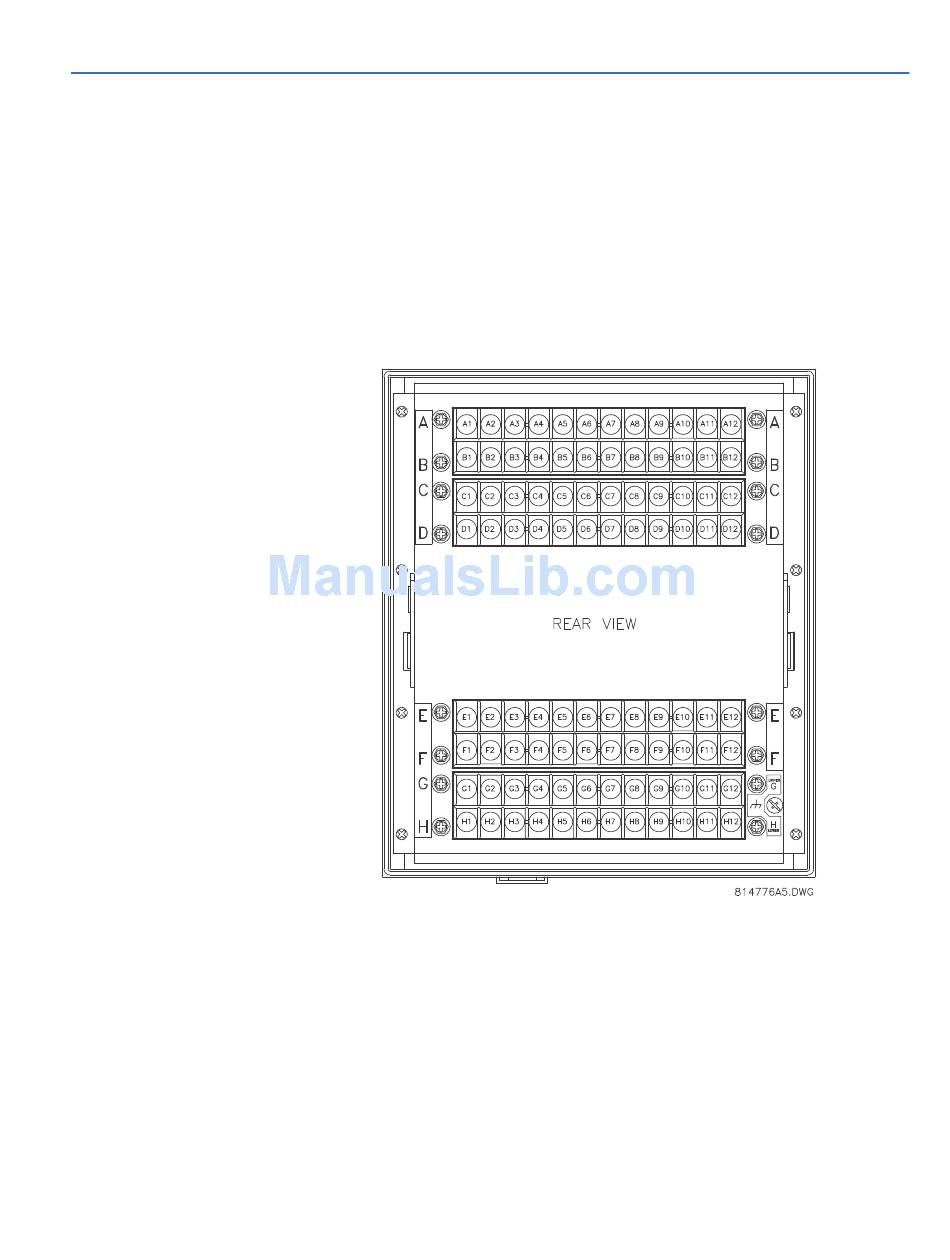

FIGURE 3–10: Rear terminal layout
TYPICAL WIRING
3–7
